Model No: MPO - LC

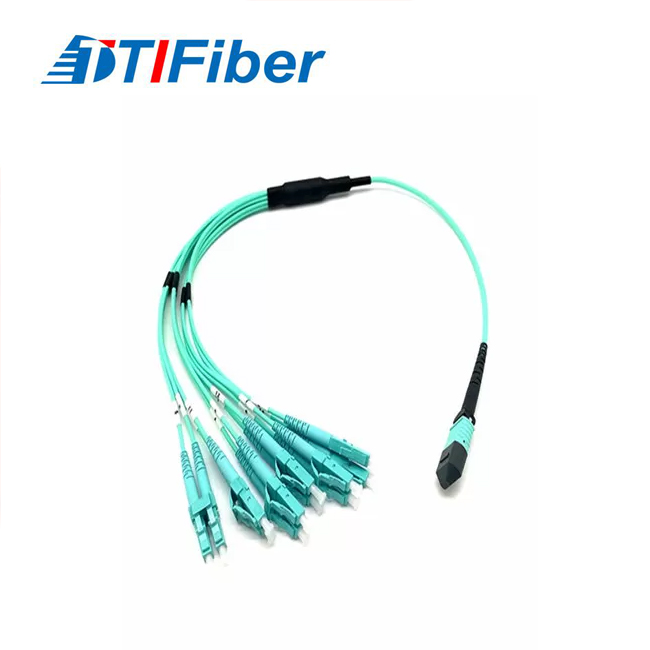

12 Cores Fiber Optic Patch Cables , MPO Multimode Patch Cable With LC Connector

Mode Number : FPC-MPO

Polished : UPC,APC

Insertion Loss : < 0.35dB

Cable Jacket : LSZH,PVC

Cable Type : Round Cable

minimum order :

1000 meters

Quantity :

add to cart

Contact Now

China Factory 12 Cores Optical Fiber Patch Cord MPO With LC Connector

12core Cable Features:
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating, compliant with Directive 2002/95/EC (RoHS) and REACH SvHC.100% tested (test data supplied) - Assures verified optical performance for improved network integrity.

12 Core Fiber Optic Cable Applications:
Telecommunication networks
Local Area Networks(LANs)
Data Processing networks
Test Equipment

Mpo Multimode Patch Cable Specification:

Parameter		Single Mode			Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC	UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um			127um concentricity deviations:<=3um
	Suitable Fiber	9/125um			50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:
Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.

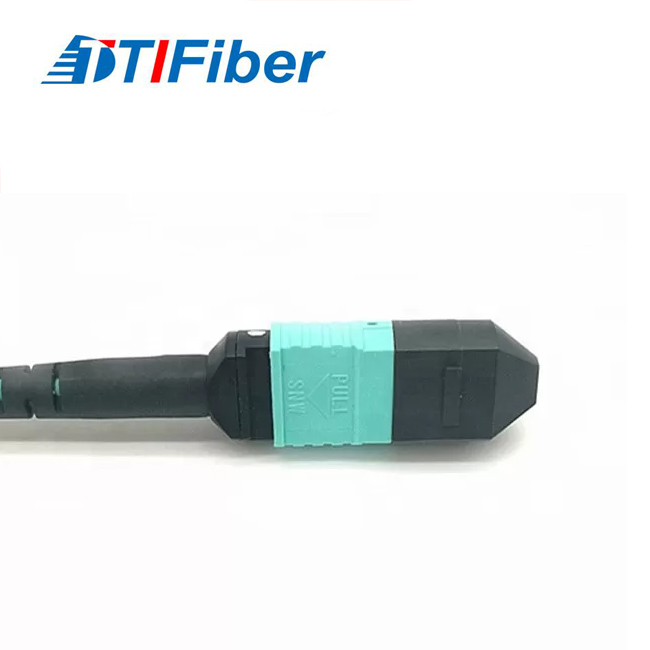

MPO Multimode Patch Cable
