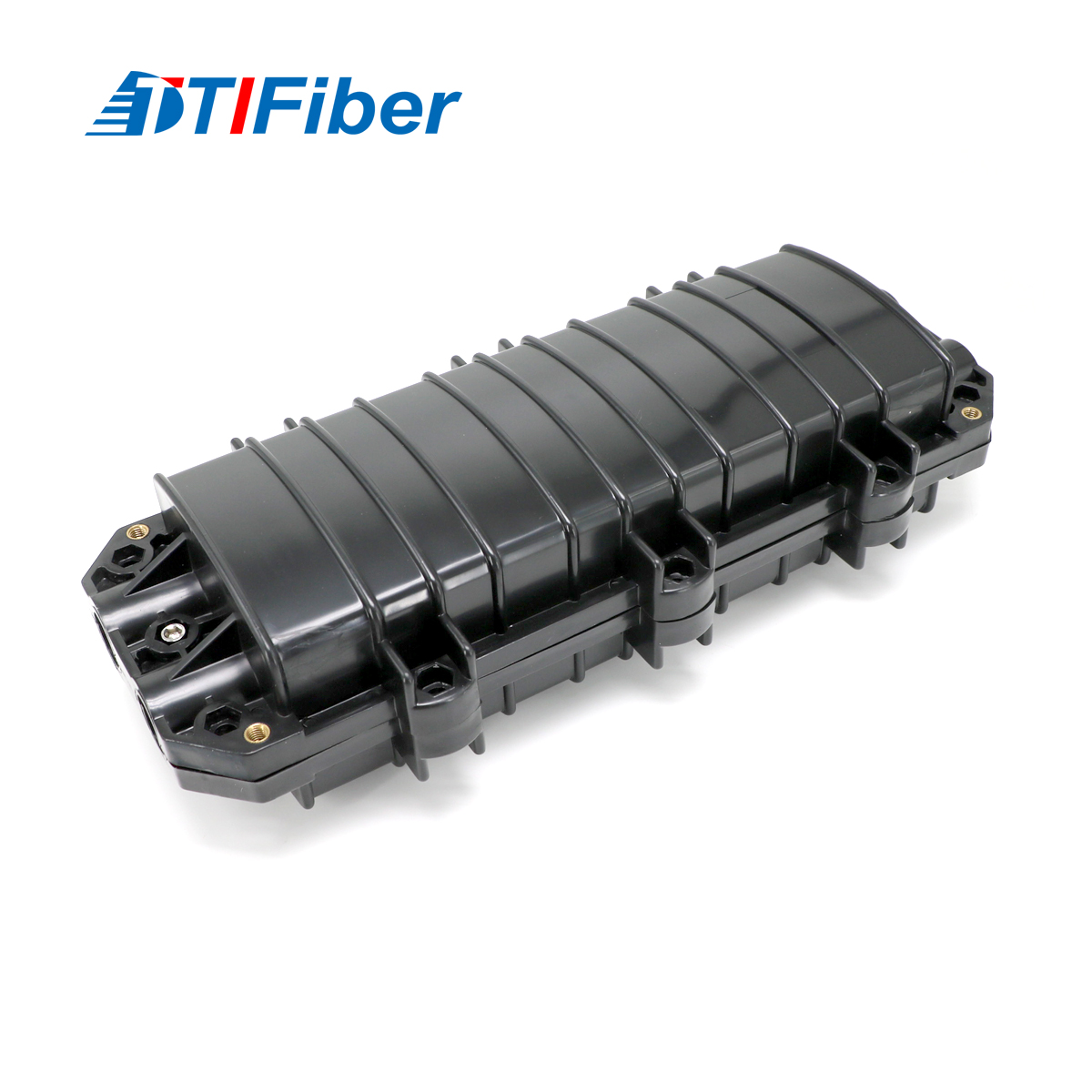

12 Core Horizontal Fibre Optic Splice Enclosure With Fiber Optic Splice Tray
Max Capacity : 96core
Material : PC, ABS, MP
Color : Black, White, Grey
Port : 2 In, 2 Out
Size : 435*190*120mm
High Light : fiber optic enclosure, outdoor fiber splice enclosure

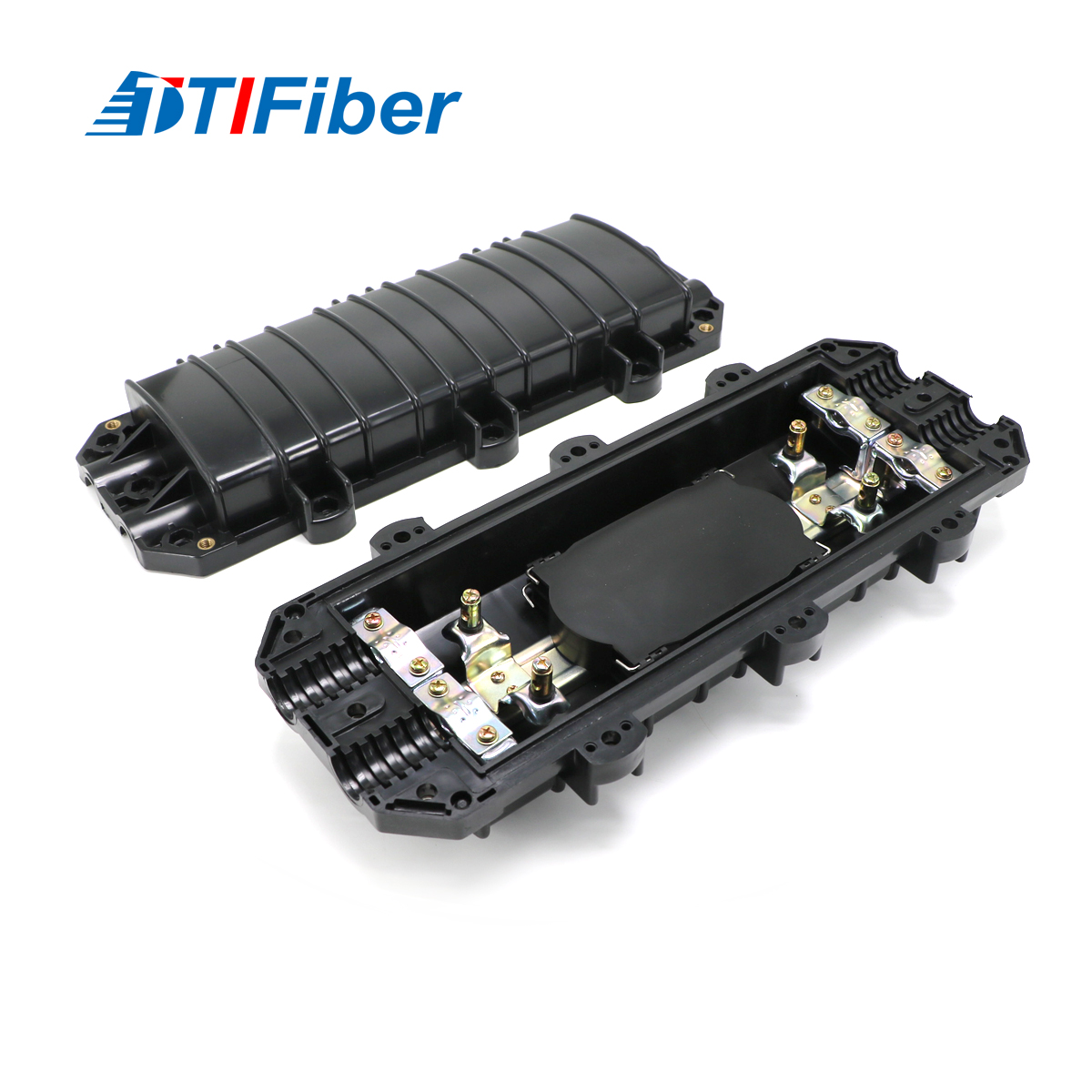

12 core Horizontal Fiber Optic Splice Closure with Fiber Optic Splice Tray
Description:
In-line Fiber Optic Splice Closure can be used in aerial, duct and direct buried application.Fiber splice closures
are made of the high quality material and with the mechanical sealing structure filled with the sealing material.
It can be reopened and reused without changing sealing material.
Feature:
For aerial,buried,wall and pipe wall people use wells
Ring using a special material that can be repeatedly opened, re-use
Valve and grounding devices can be installed
Advanced internal structure design
Easy to re-enter, it never requires re-entry tool it
Splice tray easy to use page design
Quick way to make use of open sealed maintenance easier
Application:
Telecommunication networks
CATV networks
Local area networks
Aerial –hanger, Wall-mounting, Directly buried
Widely used in FTTH access network
Specification:
| Type | FOSC-H001 | FOSC-H002 | FOSC-H003 | FOSC-H004 | FOSC-H005 | FOSC-H006 |
| Size(mm) | 435*190*85 | 435*190*120 | 435*190*120 | 435*190*80 | 435*190*170 | 420*150*110 |
| Cable diameter(mm) | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 22 | Φ 10 – Φ 17 | Φ 10 – Φ 22 | Φ 10 – Φ 23 |
| Max capacity(core) | 96 | 168 | 192 | 96 | 288 | 96 |
| Cable port | 2 in, 2 out | 4 in, 4 out | 3 in, 3 out | |||
| Sealing structure | Sticky cincture | |||||
| Weight(kg) | 2.6 | 2.8 | 2.6 | 2.3 | 4.7 | 2 |
