Model No: GYXTW Armored Optical Fiber Cable
4 6 8 12 Core GYXTW Armored Optical Fiber Cable Multimode
Product Name : Unitube Light-armored Cable GYXTW
Application : OUTDOOR
Certification : ISO9001/CE/ROHS
Color : Black or OEM
Cable Diameter : 100M,OEM
Strength Member : OEM
Way : Portable
High Light : GYXTW Fiber Optical Cable, OEM Fiber Optic Cable, 100M Fiber Optic Cable
Application : OUTDOOR
Certification : ISO9001/CE/ROHS
Color : Black or OEM
Cable Diameter : 100M,OEM
Strength Member : OEM
Way : Portable
High Light : GYXTW Fiber Optical Cable, OEM Fiber Optic Cable, 100M Fiber Optic Cable
minimum order :
1000 meters
Quantity :
Outdoor Communication Use OEM Available GYXTW Single Mode Fiber Optic Cable
GYXTW Fiber Optic Cable Description:

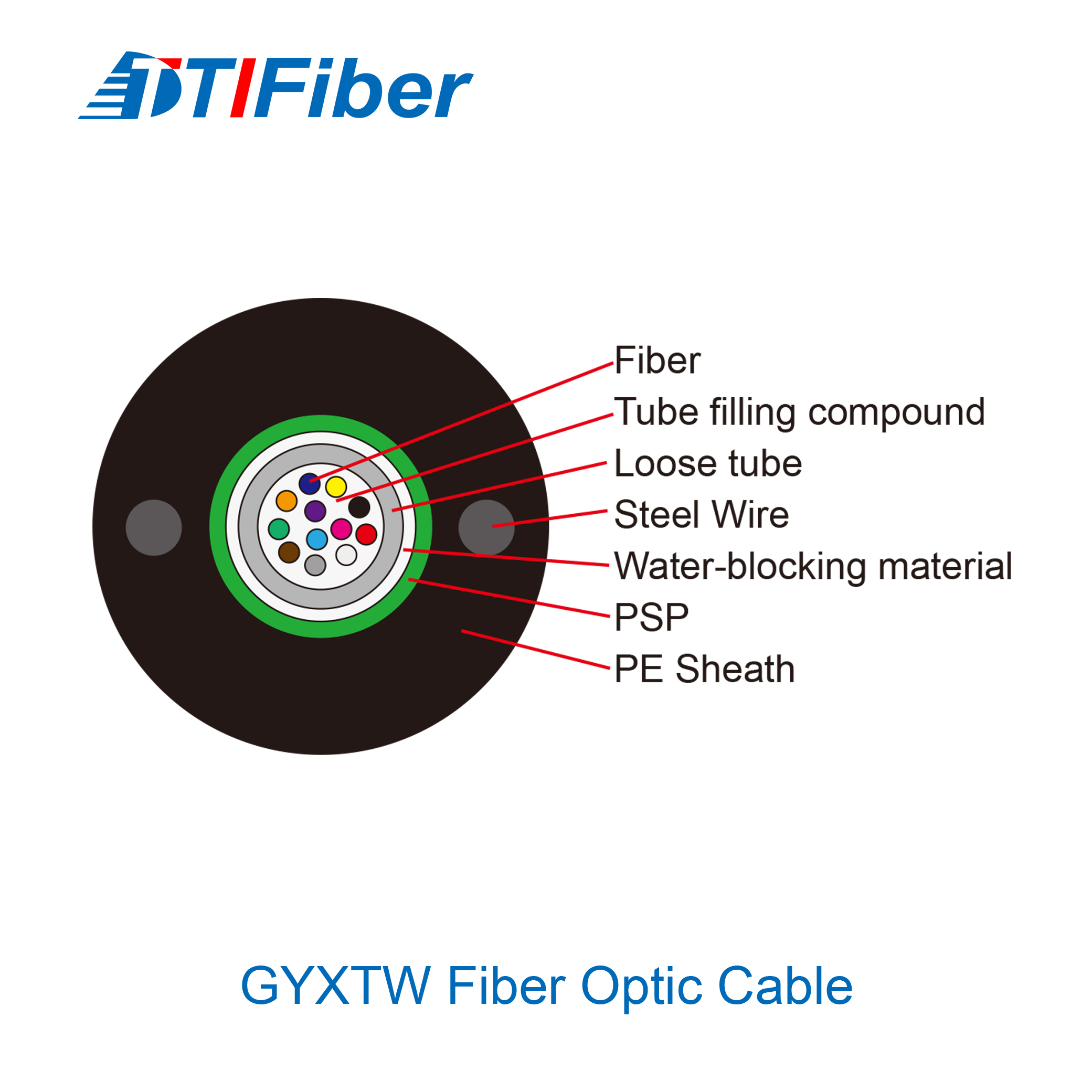

The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel
tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features:
1). Good mechanical and temperature performance
2). High strength loose tube that is hydrolysis resistant
3). Special tube filling compound ensure a critical protection of fiber
4). Crush resistance and flexibility
5). PSP enhancing moisture-proof
6). Two parallel steel wires ensure tensile strength
7). Small diameter, light weight and friendly installation
8). Storage / Operating Temperature: -40℃~+70℃
Application:
Usable in Duct / Aerial
The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant
filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking
material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel
tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features:
1). Good mechanical and temperature performance
2). High strength loose tube that is hydrolysis resistant
3). Special tube filling compound ensure a critical protection of fiber
4). Crush resistance and flexibility
5). PSP enhancing moisture-proof
6). Two parallel steel wires ensure tensile strength
7). Small diameter, light weight and friendly installation
8). Storage / Operating Temperature: -40℃~+70℃
Application:
Usable in Duct / Aerial
Parameter:
No. | Items | Unit | Specification | |
G.652D | ||||
1 | 1310nm | μm | 9.2±0.4 | |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.24 | ||
Cable Parameters:
Items | Specifications | |
Fiber Count | 2~24 | |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue, Orange, Green, Brown, Gray, White | |
Loose Tube | Dimension | 2.10mm±0.05mm |
Material | PBT | |
Color | Natural | |
Strength Member | Diameter | 1.0mm |
Material | Steel | |
Outer Jacket | Dimension | 8.0mm±0.1mm |
Material | PE | |
Color | Black | |
Mechanical and Environmental Characteristics:
Items | Unite | Specifications |
Tensio (Long Term) | N | 600 |
Tension (Short Term) | N | 1500 |
Crush (Long Term) | N/10cm | 300 |
Crush (Short Term) | N/10cm | 1000 |
Min. Bend Radius (Dynamic) | mm | 20D |
Min. Bend Radius (Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |

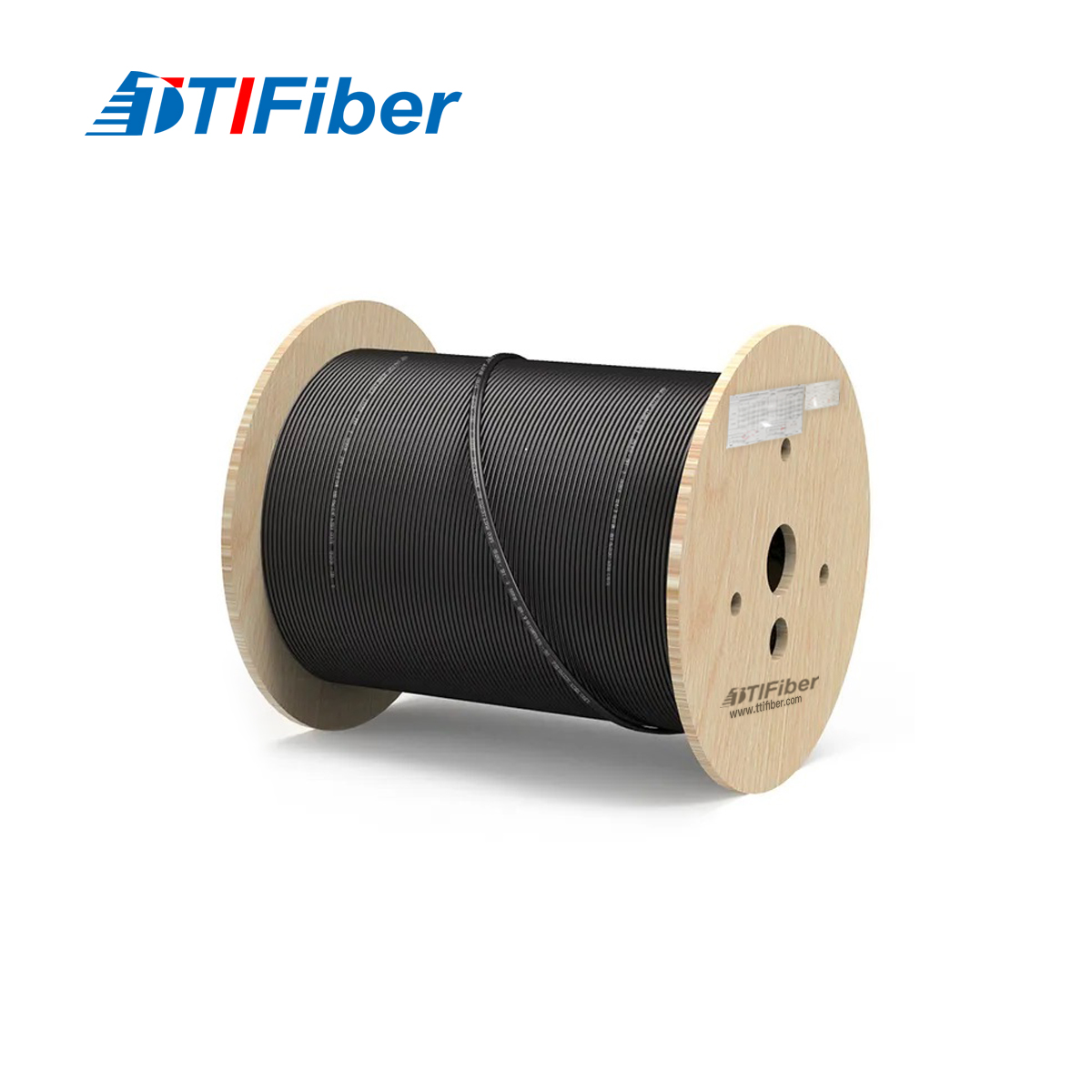

GYXTW Fiber Optic Cable Pictures:
