4core 12core FTTH Network Drop Cable with KFRP and Steel for SC Fast Connector
Cable Core : 2/4/6/8/12 Core
Fiber Mode : OS1 OS2 OM1 OM2 OM3
Cable Jacket : LSZH
Usage : Indoor Outdoor
Strength : FRP KFRP Steel
Cable Color : White Black
High Light : fiber optic drop cable, fiber drop cable
4core 12core FTTH Drop Cable with KFRP and Steel for SC Fast Connector
Ftth Optical Drop Cable Description:
Easy connect without splicing, fast and convenient
Excellent tensile and crush performance, the span distance for self-support type can be up to 50 meters
Flame retardant LSZH jacket meets relevant fire protection requirements in indoor environment
High carbon steel messenger wire enables the self-support type to have excellent tensile strength.
FTTH Network Drop Cable Feature:
Fiber:Up to 12, Light buffered fiber
Fiber Types: Single-mode or Multimode
Cable Type: Round Squa drop cable
Strength Member:Aramid yarn
Sheath Options:Single LSZH sheath
Operating Temperature: -20℃ - 70℃
Compliances:In Accordance with IEC,ITU and EIA standards
Outdoor Ftth Drop Cable Application:
High speed optical routes in buildings (FTTx)
All types of fiber cables with different structures
High performance optical network operating
Used in indoor/outdoor cabling
Used in indoor/outdoor cabling
Specification:
Fiber Transmission Performance:
Cabled Optical fiber (dB/km)
| 62.5μm (850nm/1300nm) | 50μm (850nm/1300nm) | G.652 (1310nm / 550nm) | G.655 (1550nm / 625nm) |
Max attenuation | 3.5/1.5 | 3.5/1.5 | 0.36/0.22 | 0.22/0.26 |
Typical value | 3.0/1.0 | 3.0/1.0 | 0.35/0.21 | 0.21/0.24 |
Technical Specification
Cable type | Maximum cores | Tensile Strength | Crush Resistance | Minimum bend radius | |||
Short term | Long term | Short term | Long term | Dynamic | Static | ||
GJFJH | 1 | 150 | 80 | 1000 | 500 | 20D | 10D |
GJYFJH | 1 | 300 | 150 | 1000 | 500 | 20D | 10D |
GJYFJCH | 2 | 600 | 300 | 1000 | 500 | 20D | 10D |
GJYFJCH | 4 | 600 | 300 | 1000 | 500 | 20D | 10D |

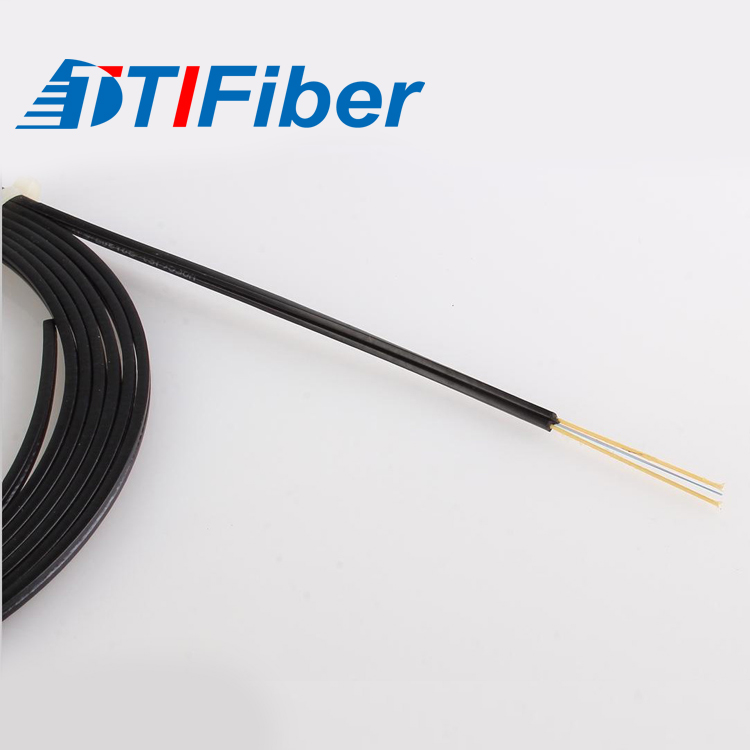

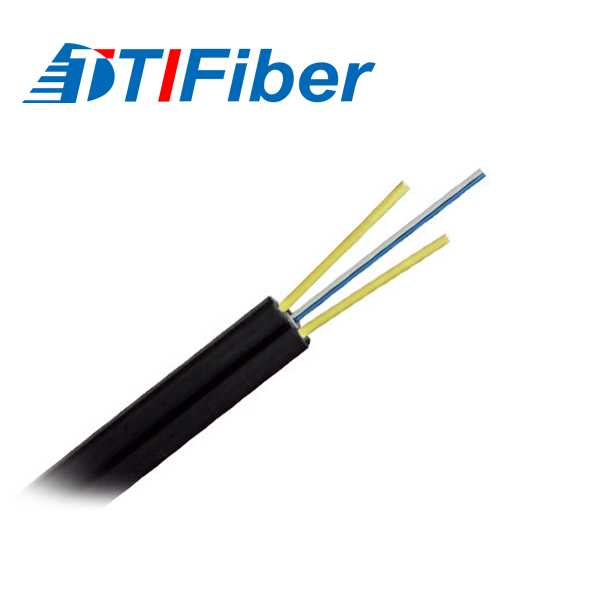

FTTH Drop Cable Manufacturers Product Picture:
