Model No: GYFTY Fiber Optic Cable

GYFTY 2 6 8 12 20 24 32 36 38 48 50 60 62 72 86 96 134 144 Core LOOSE TUBE LAYE STARANDED NON-METALLIC REINFORCED NON ARMORED OPTICAL FIBER CABLE

Model Number : GYFTY

Type : Outdoor Fiber Optic Cable

Jacket : PVC LSZH LSOH PE HDPE

Fiber count : 2 - 144 Cores

Application : Aerial

Length : Customized

Packing : 2km/drum

Delivery :

FOB

minimum order :

1000 meters

Country of Origin :

shenzhen

Quantity :

add to cart

Contact Now

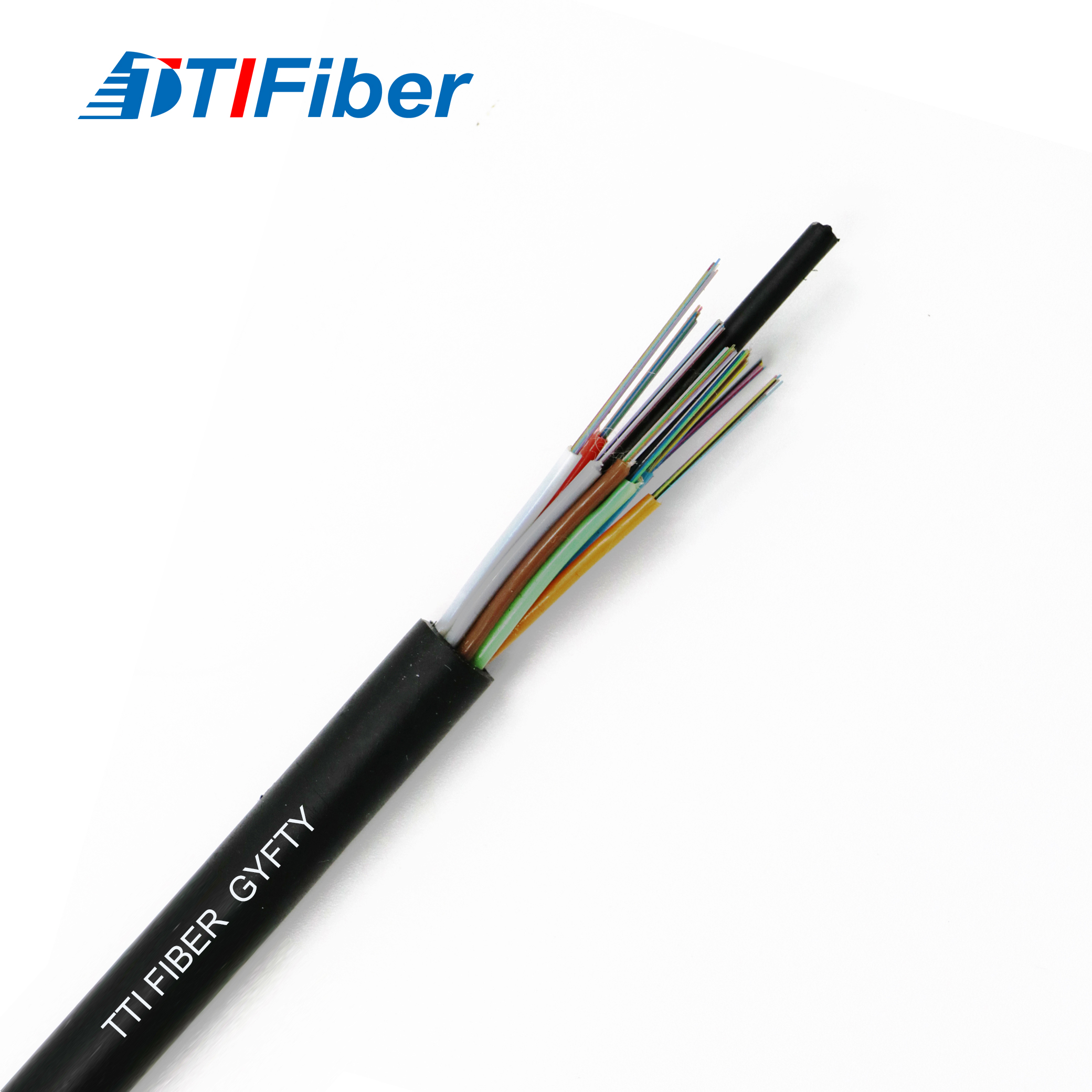

GYFTY Fiber Optic Cable LOOSE TUBE LAYE STARANDED NON-METALLIC REINFORCED NON ARMORED OPTICAL FIBER CABLE

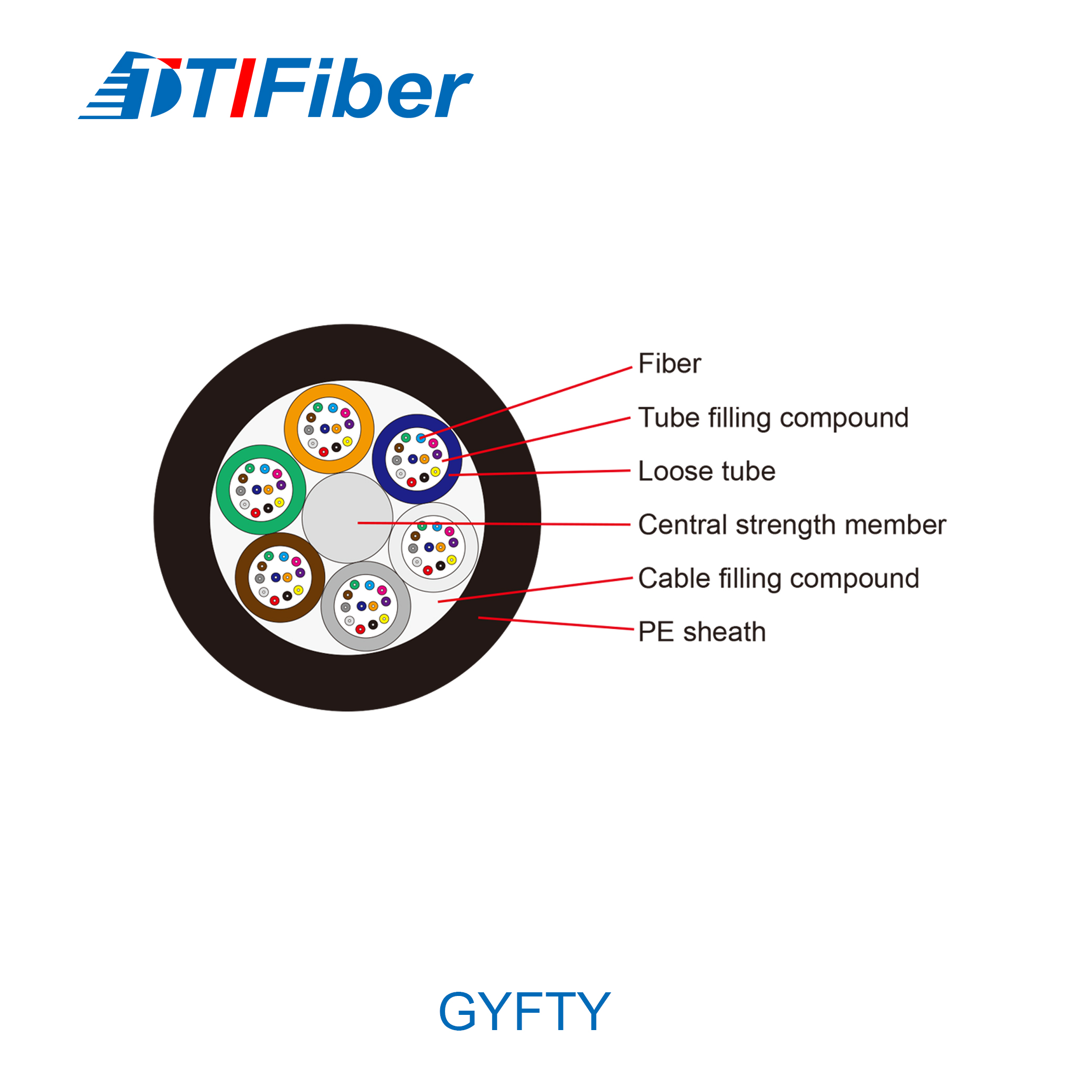

The structure of GYFTY optical fiber cable 250µm fiber is positioned in a loose tube made of high modulus material,
and the loose tube is filled with waterproof compound. The center of the cable core is a metallic Fiber Reinforced
Plastic (FRP)，for some cores fiber cable, a layer of polyethylene (PE) needs to be extruded outside the metallic
central strength member. The tubes (and fillers) are stranded around the strength member into a compact and
circular core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is
completed with a PE sheath.

Outdoor Rated Fiber Features
① Excellent mechanical property and temperature performance.
② Loose tube material have good hydrolysis resistance and higher intensity.
③ Single FRP as the central strength member to withstand axial loads.
④ PE sheath protects cable from ultraviolet radiation.
⑤ Fully cable core filled.

Outdoor Multimode Fiber Optical Characteristics

Item		G.652	G.655	50/125um	62.5/125um
Attenuation	@850nm			≤3.0dB/km	≤3.2dB/km
	@1300nm			≤1.0dB/km	≤1.2dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHZ.km	≥200MHZ.km
Bandwidth	@1300nm			≥1000MHZ.km	≥600MHZ.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-oﬀ wavelength		≤1260mm	≤1450mm

Structural Parameters

Cable Type	Fiber Count	Tubes	Fillers	Diameter (mm)	Weight (kg/km)	Tensile strength Long/Short term (N)	Crush resistance Long/Short term (N/100mm)	Bending radius Static/Dynamic (mm)
GYFTY-2~6	2~6	1	5	8.8	70	600/1500	300/1000	10D/20D
GYFTY-8~12	8~12	2	4	8.8	70	600/1500	300/1000	10D/20D
GYFTY-20~24	20~24	4	2	8.8	70	600/1500	300/1000	10D/20D
GYFTY-32~36	32~36	6	0	8.8	70	600/1500	300/1000	10D/20D
GYFTY-38~48	38~48	4	2	8.8	70	600/1500	300/1000	10D/20D
GYFTY-50~60	50~60	5	1	8.8	70	600/1500	300/1000	10D/20D
GYFTY-62~72	62~72	6	0	8.8	70	600/1500	300/1000	10D/20D
GYFTY-86~96	86~96	8	0	12.2	97	600/1500	300/1000	10D/20D
GYFTY-134~144	134~144	12	0	13.5	108	600/1500	300/1000	10D/20D

Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃

Standards
Comply with standard YD / T 901, IEC 60794-1 and other standards.
