Model No: GYXTW Fiber Optical Cable
OEM Available GYXTW Single Mode Fiber Optical Cable Outdoor Communication Use
Product Name : Unitube Light-armored Cable GYXTW
Application : OUTDOOR
Certification : ISO9001/CE/ROHS
Color : Black or OEM
Cable Diameter : 100M,OEM
Strength Member : OEM
Way : Portable
High Light : GYXTW Fiber Optical Cable, OEM Fiber Optic Cable, 100M Fiber Optic Cable
Application : OUTDOOR
Certification : ISO9001/CE/ROHS
Color : Black or OEM
Cable Diameter : 100M,OEM
Strength Member : OEM
Way : Portable
High Light : GYXTW Fiber Optical Cable, OEM Fiber Optic Cable, 100M Fiber Optic Cable
minimum order :
1000 meters
Quantity :
CENTRAL LOOSE TUBE LIGHT-ARMORED OPTICAL FIBER CABLE
OEM Available GYXTW Single Mode Fiber Optical Cable Outdoor Communication Use
OEM Available GYXTW Single Mode Fiber Optical Cable Outdoor Communication Use
The structure of GYXTW optical fiber cable 250µm fiber is positioned in a loose tube made of high modulus material,
and the loose tube is filled with waterproof compound, he tube is wrapped with a layer of corrugated steel tape
longitudinally, between the corrugated steel tape and the loose tube water-blocking material is applied to keep the
cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, the cable is
completed with a polyethylene (PE) sheath.
and the loose tube is filled with waterproof compound, he tube is wrapped with a layer of corrugated steel tape
longitudinally, between the corrugated steel tape and the loose tube water-blocking material is applied to keep the
cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, the cable is
completed with a polyethylene (PE) sheath.
Features for gyxtw fiber optic cable
① Excellent mechanical property and temperature performance.
② Loose tube material has good hydrolysis resistance and higher intensity.
③ Two parallel steel wires ensure tensile strength.
④ Good crush resistangce and flexibility.
⑤ Corrugated steel tape longitudinally covers cable core and provides good crush resistance.
⑥ Small diameter, light weight and easy installation.
① Excellent mechanical property and temperature performance.
② Loose tube material has good hydrolysis resistance and higher intensity.
③ Two parallel steel wires ensure tensile strength.
④ Good crush resistangce and flexibility.
⑤ Corrugated steel tape longitudinally covers cable core and provides good crush resistance.
⑥ Small diameter, light weight and easy installation.

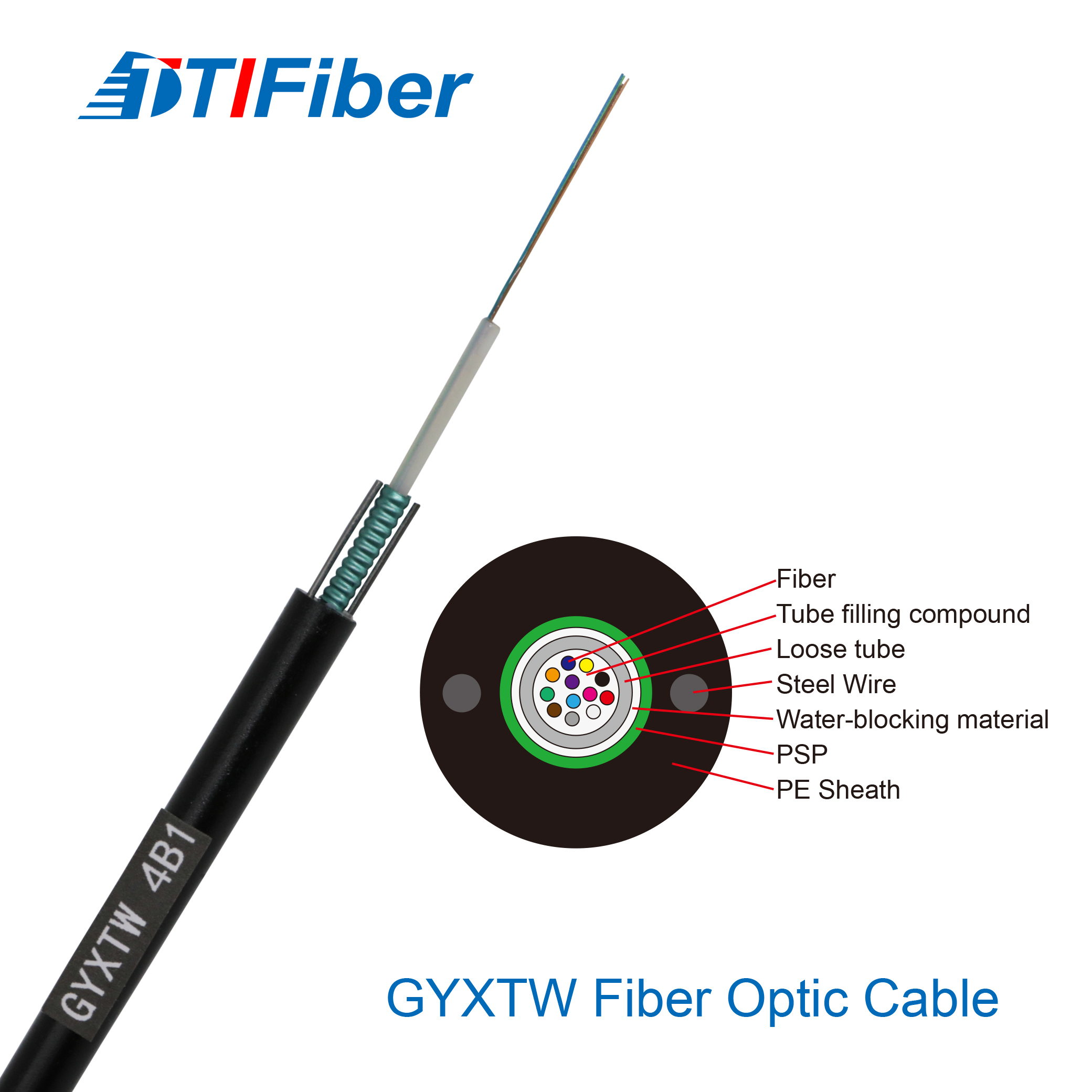

GYXTW Optical Fiber Cable Product Diagram
Optical Characteristics of gyxtw fiber cable
Environmental Characteristics
| Item | G.652 | G.655 | 50/125um | 62.5/125um | |
| Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
| @1300nm | ≤1.0dB/km | ≤1.2dB/km | |||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
| @1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||
Environmental Characteristics
| Cable Type | Fiber Count | Diameter (mm) | Weight ( kg/km) | Tensile strength Long/Short term (N) | Crush resistance Long /Short term (N/100mm) | Bending radius Static/Dynamic (mm) |
| GYXTW-2~12 | 2~12 | 8 | 60 | 600/1500 | 300/1000 | 10D/20D |
| GYXTW-14~24 | 14~24 | 8.5 | 75 | 1000/3000 | 300/1000 | 10D/20D |
Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
Standards
Comply with standard YD / T 769, IEC 60794-1 and other standards.
Comply with standard YD / T 769, IEC 60794-1 and other standards.
