Model No: Waterproof MPO - LC

MPO (ODVA) - LC / UPC MM OM3 12 Cores 7.0 mm LSZH Black

Application : Telecommunication

Number of Conductors : ≥ 10

Jacket : PVC LSZH LSOH PE HDPE

Connector : SC, LC, FC, ST, MPO, MTRJ

Fiber Type : G652D, G657A1, G657A2, OM1, OM2, OM3, OM4

Ferrule end -face : UPC/APC

Packing : PE Bag

OEM/ODM : Customized

Length : 1m, 2m, 3m, 5m, Customized

minimum order :

1000 meters

Quantity :

add to cart

Contact Now

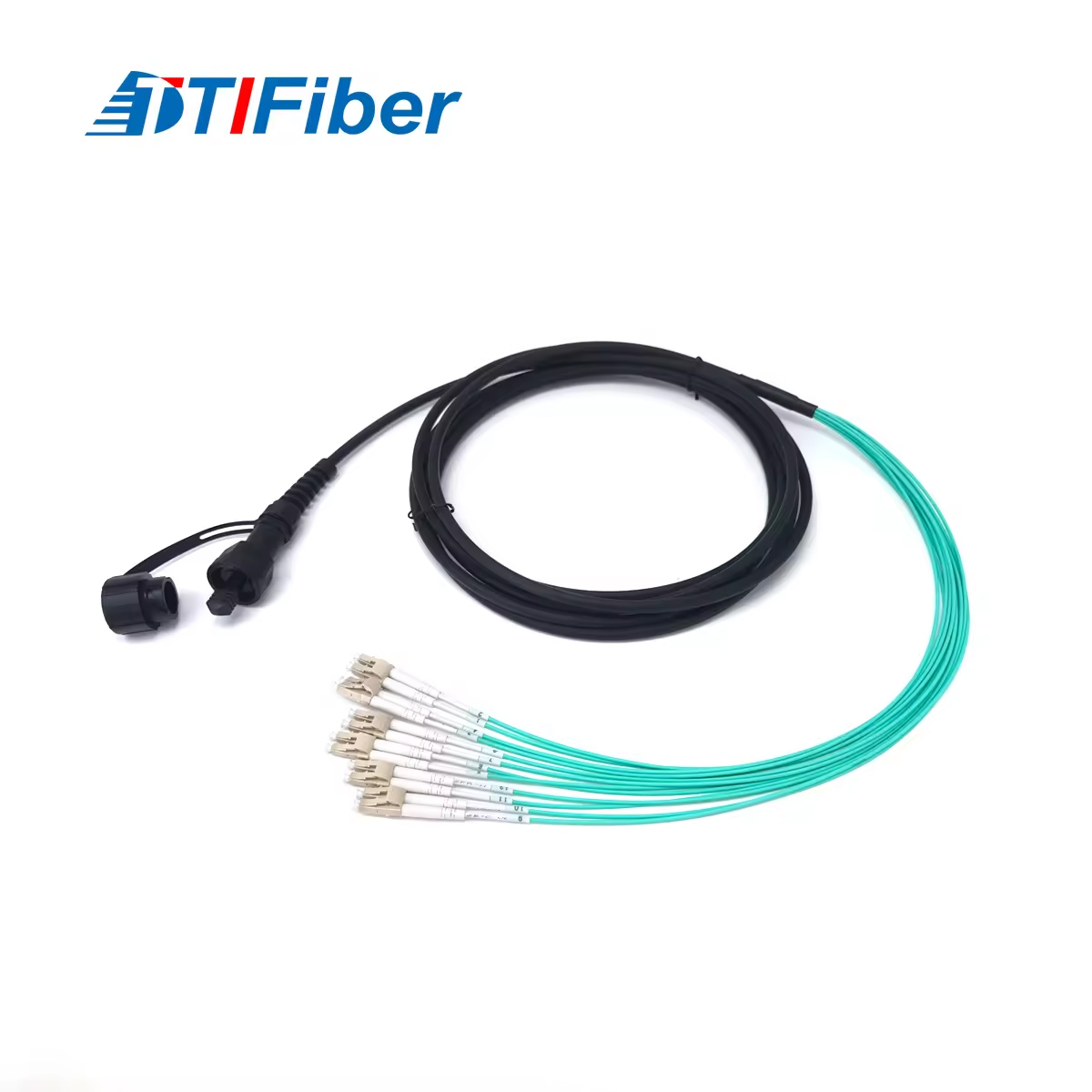

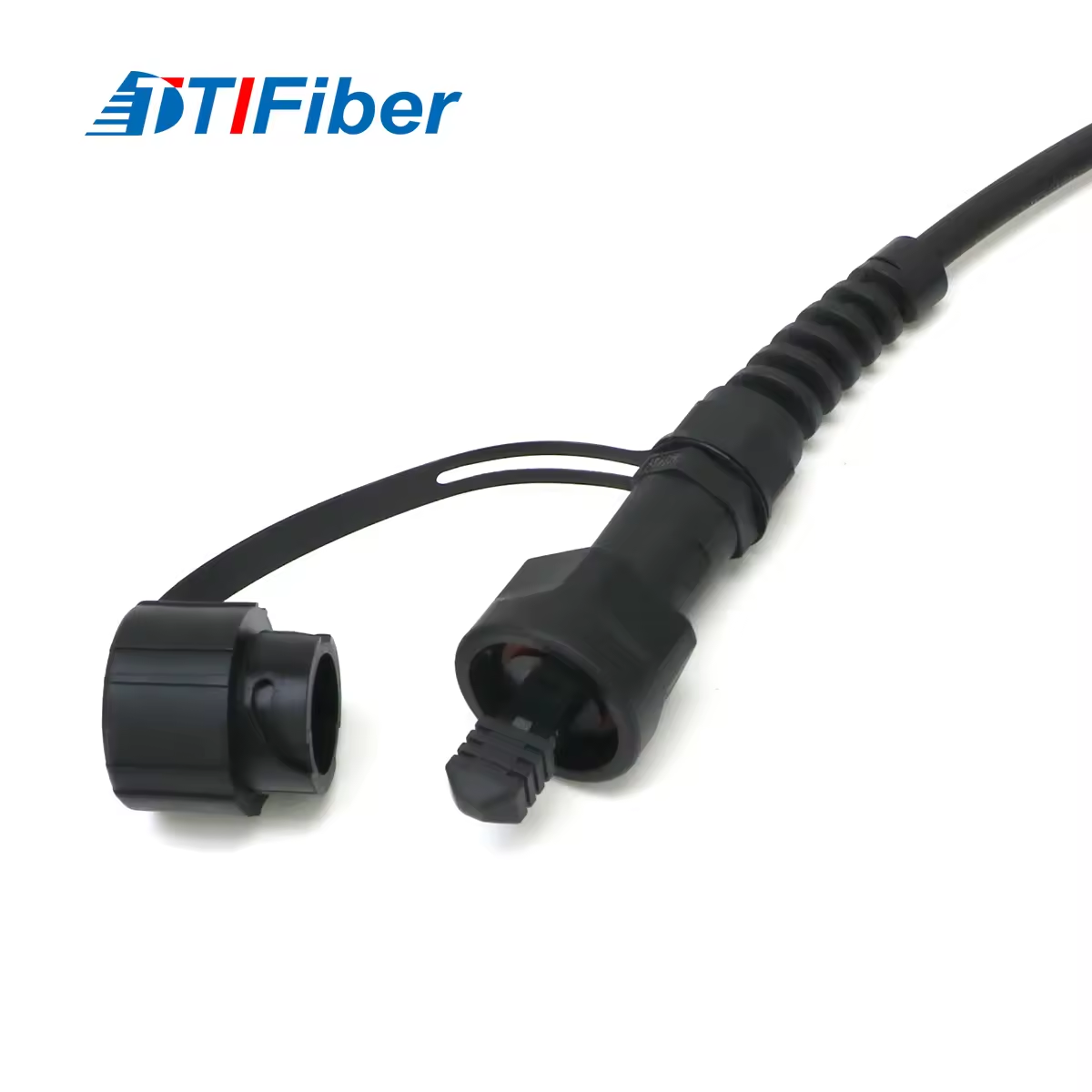

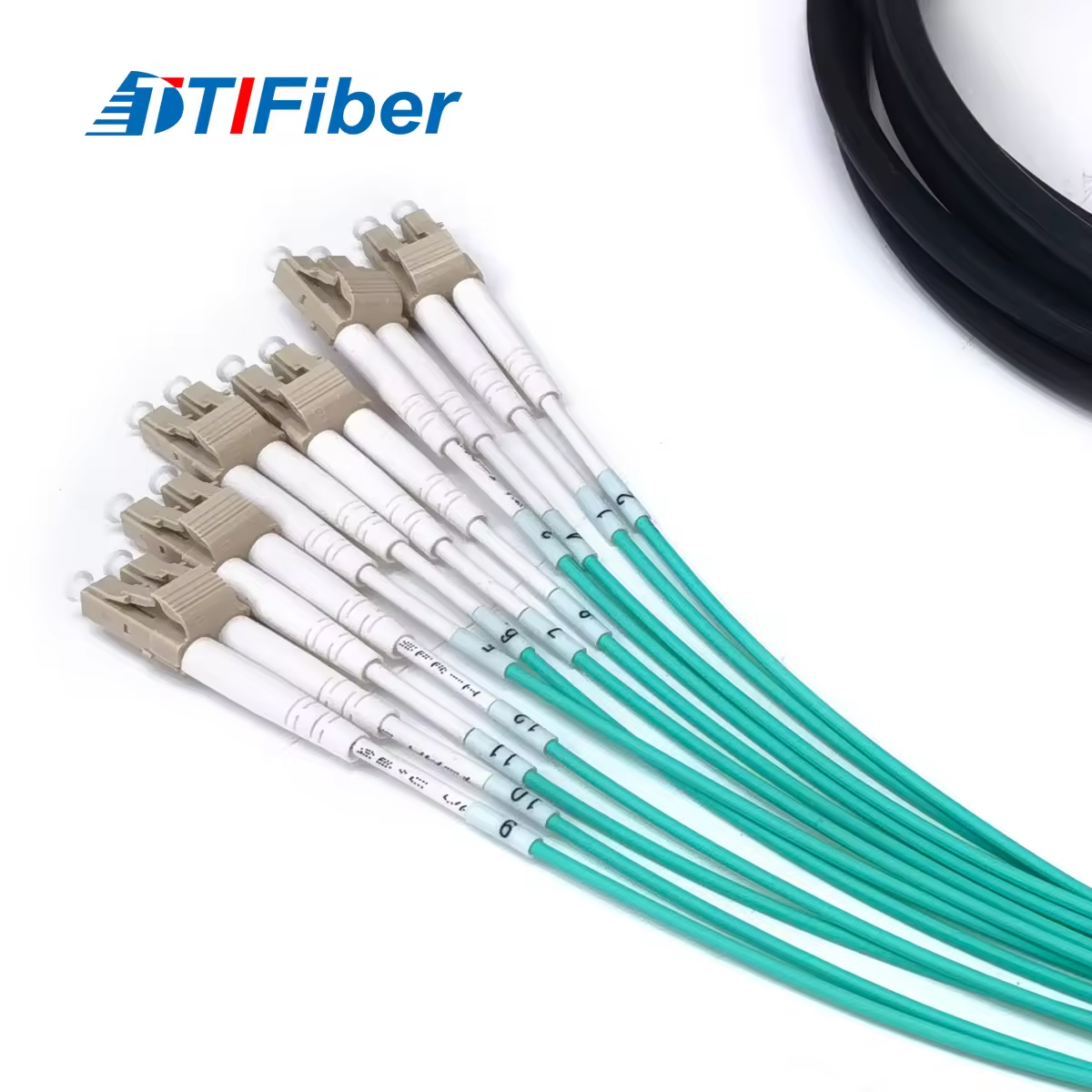

Waterproof Connector ODVA MPO - LC 8 12 16 Core Multi-Mode Fiber Opric Patch Cord

Length Tolerances

L	L＜10m	0≤△L≤+100mm
	10m≤ L ≤50m	0≤△L≤+100mm
	L＞50m	0≤△L≤+100mm

Parameter

Project			The test conditions	SM	MM
The optical properties	Insertion loss	UPC	SM:1310nm/1550nm MM:850nm/1300nm	≤0.3dB	≤0.3dB
	Insertion loss	APC	1310nm/1550nm	≤0.3dB
	Return loss	UPC	SM:1310nm/1550nm MM:850nm/1300nm	≥50 dB	≥35 dB
	Return loss	APC	1310nm/1550nm	≥60 dB	/
Mechanical properties	Impact test	1.8 altitude, 8 reps		<0.1 dB	<0.1 dB
	Vibration test	10 to 60 hz, 1 mm total amplitude		<0.1 dB	<0.1 dB
	Plug service life	More than 1000 times		<0.1 dB	<0.1 dB
	Tensile strength	>300N		<0.1 dB	<0.1 dB
Environmental features	High and low temperature cycle test	-25℃ ~ +70℃, 2 cycles		<0.2 dB	<0.2 dB
	High temperature test	+80℃ for 2 hours		<0.2 dB	<0.2 dB
	Low temperature test	-40 ° C for 2 hours		<0.2 dB	<0.2 dB
	Hot and humid test	+40℃, 90-95%RH, 2 hours		<0.2 dB	<0.2 dB

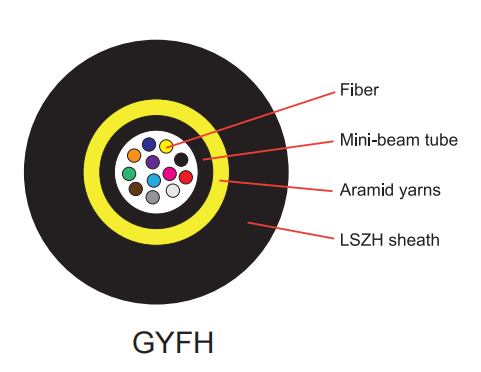

Cable Structure Parameters

ITEMS	UNITS	SPECIFICATION
Fiber Type	-	50/125（OM2+/OM3/OM4）
Attenuation	dB/km	Before Cable	After Cable
		850 nm≤ 2.4 1300 nm≤ 0.6	850 nm≤ 3.5 1300 nm≤ 1.5
OFL BW	MHz•km	850nm：≥700/≥1500/≥3500 1300nm:≥500/≥500/≥500
Effective mode bandwidth	MHz•km	850nm：≥950/≥2000/≥4700
Link length	-	-
40GBASE-SR4 / 100GBASE-SR101	m	850nm：-/140/170
10GBASE-SR	m	850nm：150/300/550
1000BASE-SR	m	850nm：750/1000/1100
N.A	-	0.200±0.015
Zero Dispersion Wavelength	nm	1295~ 1340
Zero Dispersion Slope	ps/nm2.km	1295nm≤ λ0 ≤1310nm：≤ 0.105 1310nm≤ λ0 ≤1340nm：≤ 0.000375
Attenuation vs. Bending	dB	≤ 0.1at 850 nm ≤ 0.3at 1300 nm (30mm x2turns) ≤ 0.2at 850 nm ≤ 0.5at 1300 nm (15mm x2turns)
Core diameter	mm	50±2.5
Core-Clad Concentricity	mm	≤ 10
Cladding Diameter	mm	125±1.0
Cladding Non-circularity	%	≤ 5.0
Coating Diameter	mm	245±7
Proof Test	Gpa	≥ 0.69

Cable Technical Parameters

Item		Parameter
Operating temperature		-40℃ ~ +70℃
Storage temperature		-40℃ ~ +70℃
Tensile Strength	Long Term(N)	200
Tensile Strength	Short Term(N)	500
Crush Resistance	Long Term(N/100mm)	1000
Crush Resistance	Short Term(N/100mm)	2000
Bending Radius	Static(mm)	140
Bending Radius	Dynamic(mm)	70
