Model No: ADSS Fiber Optic Cable

Outdoor Overhead Power 1 2 4 6 8 12 24 48 144 Core Single Mode ADSS Fiber Optic Cables

Jacket : PVC LSZH LSOH PE HDPE

Fiber count : 2 - 288 Cores

Application : Aerial

Color : Black or OEM

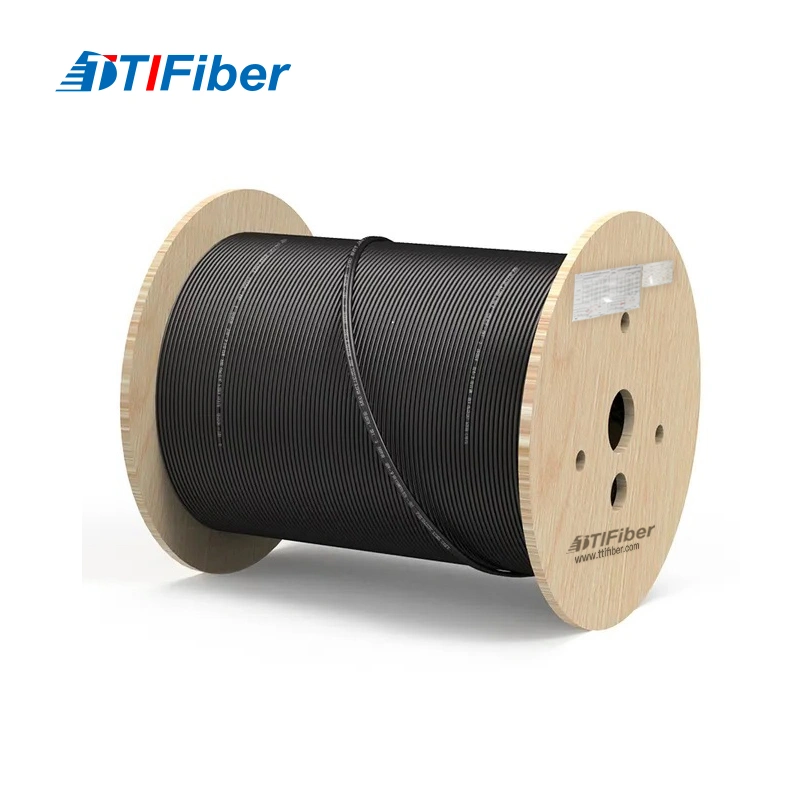

Packing : 3km / roll

Insulation : PE

Fiber Type : SM / OM1 / OM2 / OM3 / OM4

Brand : TTI / OEM / Customized

Quantity :

add to cart

Contact Now

Outdoor Overhead Power 1 2 4 6 8 12 24 48 144 Core Single Mode ADSS Fiber Optic Cables

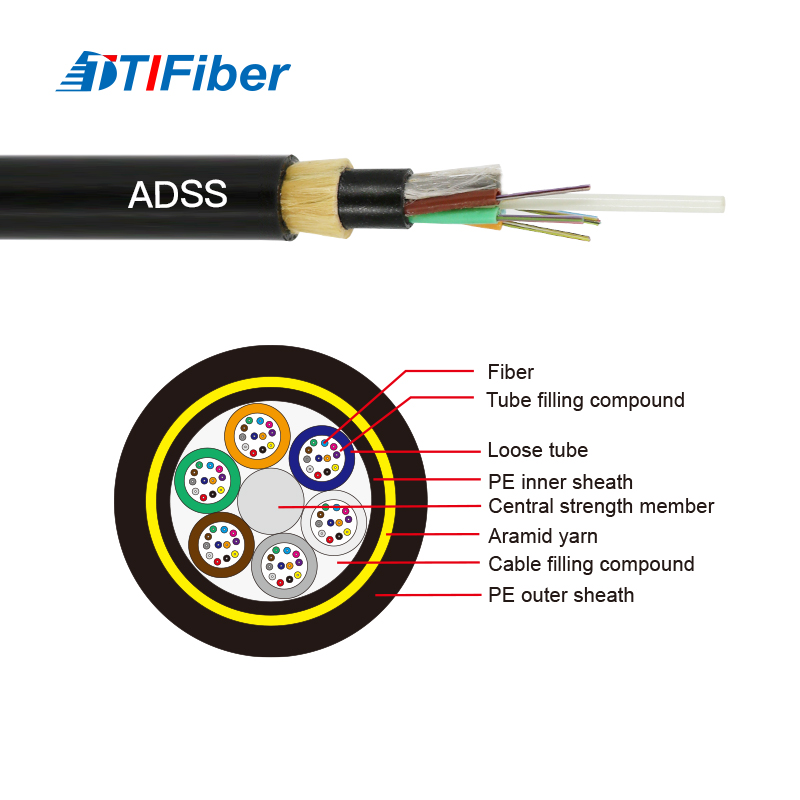

ADSS Optic Fiber Cable Product Description

ADSS Fiber Optic Cable is loose tube stranded.The fibers, 125μm,are positioned in a loose tube made

of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and

fillers are stranded around a FRP as a non-metallic strength member into a compact and circular

cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose

tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is

completed with a polyethylene (PE) or AT outer sheath.

Characteristics:

1. Small cable diameter(adapt for bad climate), light weight, 100m span, low attached load on tower.
2. Non-metal structure, good insulation, anti-thunder.
3. Fine production technology, even force for aramid yarn, with superior stress flexibility.

Item	Contents	Value
Item	Fiber Count	24	48	72	96	144
Loose Tube	No. of tubes*fiber pre tube	4*6	4*12	6*12	8*12	12*12
Loose Tube	Outer Diamater(mm)	2.1	2.5
Central Strength Member	Material	FRP
	Diameter(mm)	2.25	2.5	2.6	2.8	3.7
	Coated CSM Diameter(mm)				4.2	7.4
Water Blocking Material	Material	Cable Filling Compound
Inner Sheath	Thickness(mm)	Nominal:0.8
Peripheral Strength Member	Material	Aramid Yarm
Outer Sheath	Thickness(mm)	Nominal:1.8
Cable Diameter		12.6	13.2	14	15.3	18
Cable Weight		125	135	150	180	260
Operation Temperature Range		-40-70
Climate Condition		Max. wind speed: 25m/s, no ice
Max Span(m)		750	670	650	600	500
Crush Resistance Short/Long Term(N/100mm)		2200/700

ADSS Fiber Optic Cable Application:
Erect on the same pole with power line in new and old power line A long span Areas of strong electric field,

multi-thunder, etc
