The Essence of ADSS and OPGW Cables
ADSS Cables - Lightweight and Versatile
All-dielectric self-supporting (ADSS) fiber optic cables are a marvel of engineering, created to
offer strength and resilience without the need for conductive metal elements. These cables
are designed to support themselves between transmission towers, making them highly
suitable for aerial installations. Their non-metallic composition not only allows for easy
installation but also makes them immune to electromagnetic interference (EMI), a common
concern in high-voltage environments.
offer strength and resilience without the need for conductive metal elements. These cables
are designed to support themselves between transmission towers, making them highly
suitable for aerial installations. Their non-metallic composition not only allows for easy
installation but also makes them immune to electromagnetic interference (EMI), a common
concern in high-voltage environments.

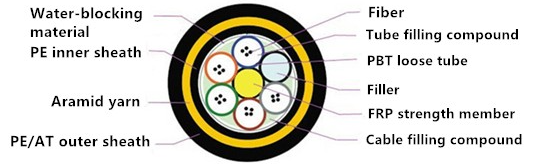

The structure of ADSS cables is intricate yet efficient. At the core lies a central strength
member, providing stability and support. Surrounding it are stranded loose tubes, which
house the optical fibers that enable high-speed data transmission. Water-blocking material
is added to safeguard the cables from environmental factors, while aramid yarn offers
tensile strength. Finally, a durable sheath encases the entire structure, ensuring longevity
and protection. These cables are available in two configurations: single jacket and double
jacket, depending on the specific application needs.
member, providing stability and support. Surrounding it are stranded loose tubes, which
house the optical fibers that enable high-speed data transmission. Water-blocking material
is added to safeguard the cables from environmental factors, while aramid yarn offers
tensile strength. Finally, a durable sheath encases the entire structure, ensuring longevity
and protection. These cables are available in two configurations: single jacket and double
jacket, depending on the specific application needs.
OPGW Cables - Dual-Functioning Powerhouses
On the other hand, Optical Ground Wire (OPGW) cables serve a dual purpose, combining the
functionality of a ground wire with that of a communication medium. Designed for use on
high-voltage power lines, OPGW cables perform critical tasks such as grounding to protect
against lightning strikes and transmitting vital data, including voice, video, and internet signals.
This unique combination of power and communication capabilities makes OPGW cables an
essential part of modern power infrastructure.
functionality of a ground wire with that of a communication medium. Designed for use on
high-voltage power lines, OPGW cables perform critical tasks such as grounding to protect
against lightning strikes and transmitting vital data, including voice, video, and internet signals.
This unique combination of power and communication capabilities makes OPGW cables an
essential part of modern power infrastructure.

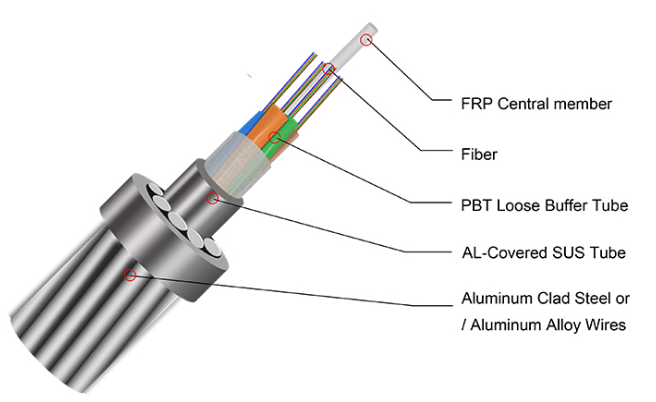

Structurally, OPGW cables are robust and feature metallic elements, including stainless steel
tubes that encase the optical fibers and aluminum-clad steel wires for reinforcement. These
components ensure that the cables can withstand the harsh conditions often encountered
in power transmission environments, such as lightning, short circuits, and high loads.
OPGW cables are available in four main types: ACS (Aluminum-Clad Stainless Steel Tube),
stranded tube, central tube, and ACP (Aluminum-Clad PBT), each designed to meet specific
operational requirements.
tubes that encase the optical fibers and aluminum-clad steel wires for reinforcement. These
components ensure that the cables can withstand the harsh conditions often encountered
in power transmission environments, such as lightning, short circuits, and high loads.
OPGW cables are available in four main types: ACS (Aluminum-Clad Stainless Steel Tube),
stranded tube, central tube, and ACP (Aluminum-Clad PBT), each designed to meet specific
operational requirements.
Contrasting ADSS and OPGW Cables: A Closer Look
While both ADSS and OPGW cables are indispensable in their respective fields, the differences
between them are significant. These variations stem from their distinct structural compositions,
installation procedures, and intended environments.
between them are significant. These variations stem from their distinct structural compositions,
installation procedures, and intended environments.
Cable Structure and Material Composition
ADSS cables, being all-dielectric, are completely non-metallic. This makes them lightweight,
with a low expansion coefficient, allowing for easy installation in environments where large
spans between towers are required. The absence of metal also makes these cables resistant
to lightning strikes and ideal for aerial installations where EMI could be a concern. In contrast,
OPGW cables feature a robust metallic core designed to endure the physical and electrical
demands of high-voltage power lines. The inclusion of aluminum-clad steel provides OPGW
cables with the strength needed to function as both a ground wire and a communication link.
with a low expansion coefficient, allowing for easy installation in environments where large
spans between towers are required. The absence of metal also makes these cables resistant
to lightning strikes and ideal for aerial installations where EMI could be a concern. In contrast,
OPGW cables feature a robust metallic core designed to endure the physical and electrical
demands of high-voltage power lines. The inclusion of aluminum-clad steel provides OPGW
cables with the strength needed to function as both a ground wire and a communication link.

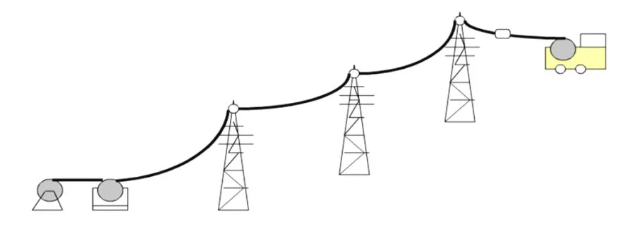

Simplicity vs. Complexity Installation Process
The installation of ADSS cables is remarkably simple. Their lightweight nature, combined with
their ability to be installed without interrupting power transmission, makes them a
cost-effective solution for many utilities. These cables can be easily strung along existing
power lines, requiring minimal infrastructure modifications. Their flexibility allows them to be
installed in a variety of aerial environments, from telecommunication networks to high-voltage
power lines.
their ability to be installed without interrupting power transmission, makes them a
cost-effective solution for many utilities. These cables can be easily strung along existing
power lines, requiring minimal infrastructure modifications. Their flexibility allows them to be
installed in a variety of aerial environments, from telecommunication networks to high-voltage
power lines.
In comparison, OPGW cables are more complex to install. Since they are integrated with the
power grid as both a communication medium and a ground wire, their installation often
requires the temporary shutdown of power lines. This adds to the overall complexity and
cost of installation, making OPGW cables a more significant investment. However, the dual
functionality of OPGW cables often justifies these additional costs in environments where
grounding and data transmission are equally important.
power grid as both a communication medium and a ground wire, their installation often
requires the temporary shutdown of power lines. This adds to the overall complexity and
cost of installation, making OPGW cables a more significant investment. However, the dual
functionality of OPGW cables often justifies these additional costs in environments where
grounding and data transmission are equally important.
Where Each Cable Excels
ADSS cables find their niche in telecommunication networks, where their non-metallic
design offers advantages in terms of safety and performance. They are widely used by
power utilities, telecommunications companies, and private network groups for aerial
installations in environments where lightweight and flexible cables are required. These
include high-voltage transmission lines, FTTX networks, enterprise OSP networks, and
long-distance communication systems.
design offers advantages in terms of safety and performance. They are widely used by
power utilities, telecommunications companies, and private network groups for aerial
installations in environments where lightweight and flexible cables are required. These
include high-voltage transmission lines, FTTX networks, enterprise OSP networks, and
long-distance communication systems.
Conversely, OPGW cables are tailored to the needs of the electric power industry. Their
ability to function as both a ground wire and a data transmission path makes them
ideal for high-voltage power transmission lines. OPGW cables are commonly used
in power lines ranging from 110kV to 500kV and play a vital role in SCADA (Supervisory
Control and Data Acquisition) networks, dark fiber leasing, and other critical data
transmission applications.
ability to function as both a ground wire and a data transmission path makes them
ideal for high-voltage power transmission lines. OPGW cables are commonly used
in power lines ranging from 110kV to 500kV and play a vital role in SCADA (Supervisory
Control and Data Acquisition) networks, dark fiber leasing, and other critical data
transmission applications.
Installation and Investment
Cost is another area where the two types of cables diverge. ADSS cables are typically
more economical to install, as they do not require the replacement of existing power
lines and can be deployed without interrupting the power supply. Their lightweight
structure also contributes to lower transportation and installation costs, making them
a popular choice for cost-conscious projects.
more economical to install, as they do not require the replacement of existing power
lines and can be deployed without interrupting the power supply. Their lightweight
structure also contributes to lower transportation and installation costs, making them
a popular choice for cost-conscious projects.
On the other hand, OPGW cables, due to their complex installation and dual-functionality,
demand a larger initial investment. The need to shut down power lines during installation
further increases costs. However, in environments where both grounding and data
transmission are crucial, OPGW cables offer long-term benefits that can outweigh the
higher upfront costs.
demand a larger initial investment. The need to shut down power lines during installation
further increases costs. However, in environments where both grounding and data
transmission are crucial, OPGW cables offer long-term benefits that can outweigh the
higher upfront costs.
Advantages of ADSS Cables
ADSS cables come with a host of benefits that make them a versatile and practical solution
for many applications. Their non-metallic structure ensures immunity to EMI, reducing
the risk of lightning strikes and enhancing safety in high-voltage environments. Additionally,
the lightweight design of ADSS cables minimizes the load on transmission towers,
making installation simpler and more cost-effective. Furthermore, these cables are highly
durable, with excellent resistance to environmental factors such as moisture and
temperature fluctuations.
for many applications. Their non-metallic structure ensures immunity to EMI, reducing
the risk of lightning strikes and enhancing safety in high-voltage environments. Additionally,
the lightweight design of ADSS cables minimizes the load on transmission towers,
making installation simpler and more cost-effective. Furthermore, these cables are highly
durable, with excellent resistance to environmental factors such as moisture and
temperature fluctuations.
Choosing Between ADSS and OPGW
Both ADSS and OPGW cables play vital roles in the modern landscape of power and
telecommunications. ADSS cables, with their lightweight, non-metallic structure, offer
a cost-effective solution for telecommunications and power distribution networks where
flexibility and ease of installation are paramount. OPGW cables, on the other hand,
provide the added benefit of grounding, making them indispensable in high-voltage
power transmission environments where robust communication capabilities are also
required.
telecommunications. ADSS cables, with their lightweight, non-metallic structure, offer
a cost-effective solution for telecommunications and power distribution networks where
flexibility and ease of installation are paramount. OPGW cables, on the other hand,
provide the added benefit of grounding, making them indispensable in high-voltage
power transmission environments where robust communication capabilities are also
required.
The choice between ADSS and OPGW cables ultimately depends on the specific needs
of the installation environment. Whether prioritizing cost, ease of installation, or
dual-functionality, both cable types are indispensable components in the ever-evolving
world of power and communication infrastructure.
of the installation environment. Whether prioritizing cost, ease of installation, or
dual-functionality, both cable types are indispensable components in the ever-evolving
world of power and communication infrastructure.
Does 5G Require Fiber Optic Cable?
ADSS and OPGW Fiber Comparison - TTI Fiber
Related Article
Explains the three lightning damage mechanisms, which ones all-dielectric cable truly eliminates, and the four overlooked places where metal — and risk — still remain on the route.
Does All-Dielectric Fiber Optic Cable Need Lightning Protection? | TTI Fiber
When engineers specify a solution for direct burial in rocky soil, installation alongside high-voltage lines, or routing through rodent-infested terrain, they often reach for a ruggedized option known as SWA fiber optic cable.
What Is SWA Fiber Optic Cable
A substandard cable may pass initial continuity tests but fail prematurely due to corrosion, water ingress, fiber degradation, or mechanical fatigue. Since you can’t X-ray every reel on delivery, proactive verification before purchase is essential.
Verify the Quality of Raw Materials Before Purchasing Armored Fiber Optic Cable
