LC/UPC-FC/UPC Fiber Optic Patch Cord Duplex Singlemode PVC LSZH 2.0mm 3.0mm Patch cable
Application : FTTH FTTB FTTX Network
Connector Type : APC/UPC
Material : PVC/LSZH
Wavelength : 1310nm Or 1550nm
Fiber Count : Simplex Or Duplex
Polish : PC/UPC/APC
Type : Single Mode/Multi-mode
Quality Control : 100% Test Before Shipping
Length : 1m 2m 3m Or Customized
High Light : fiber patch cord, optical patch cord
LC/UPC-FC/UPCFiber Optic Patch Cord Duplex Singlemode PVC LSZH 2.0mm 3.0mm Patch cable
High Quality LC-FC Duplex SM 2.0mm/3.0mm Optic fiber Network Optical Jumper Patch Cord
LC Single Mode Specification:
Type | Standard, Master |
Style | LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC |
Fiber | Singlemode/Multimode |
Simplex, Duplex / Φ3.0mm, Φ2.0mm, Φ0.9mm / PVC or LSZH | |
Polishing Manner | UPC,SPC,APC (8°& 6°) |
Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
Return Loss | UPC ≥ 50dB / SPC ≥ 55dB / APC ≥ 60dB (typ.65dB) / Tested by JDS RM3750 |
Repeatability | ±0.1dB |
Operating temperature | -400C to 850C |
Geometry Requirement | Ferrule Endface Radius |
Fiber Optic Patch Cable is also known as fiber optic jumperorfiber optic patch cord. It is composed of a fiber optic
cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application
areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber
provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch
cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC,
MU, MTRJ, connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.
Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.
4. Environmentally Stable
Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

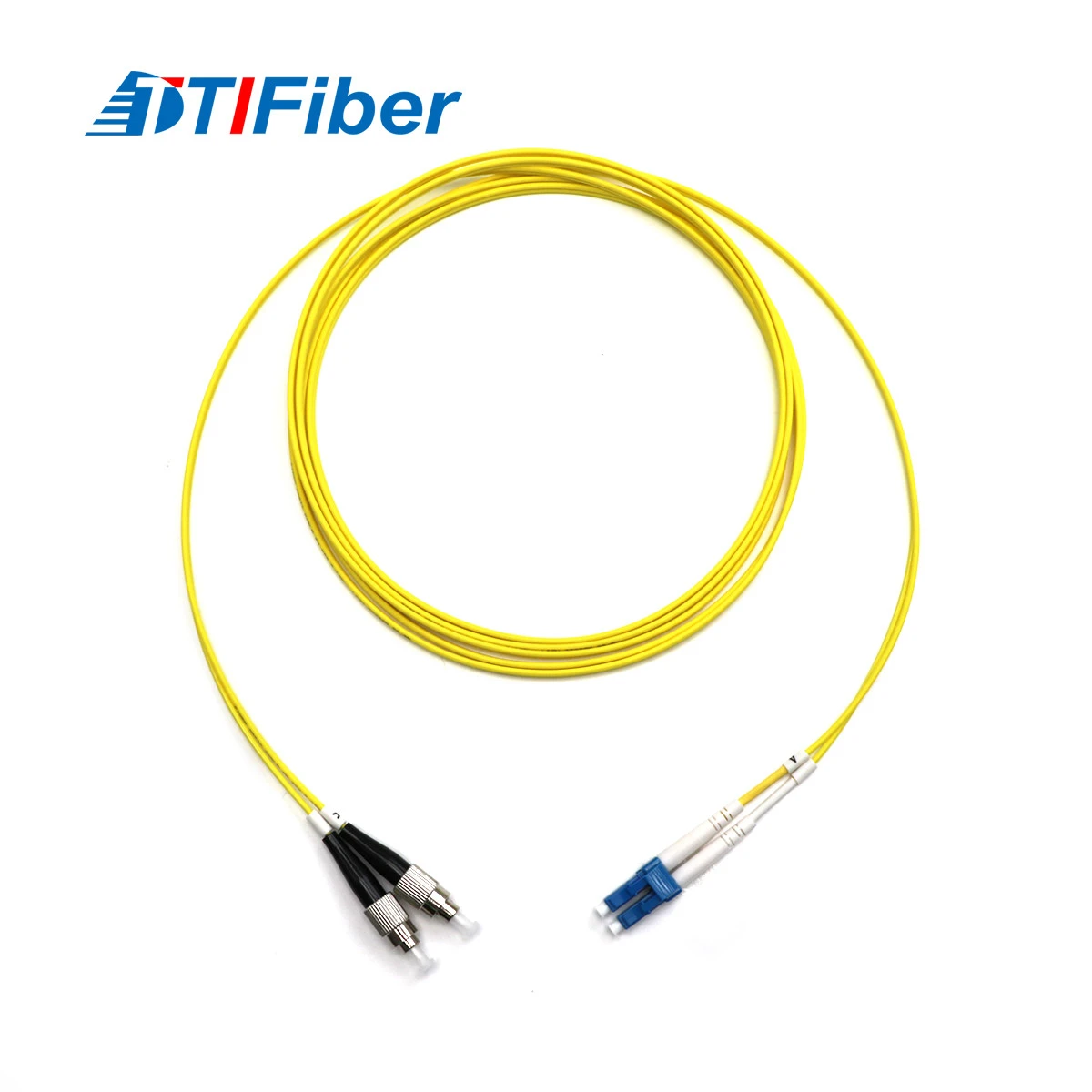

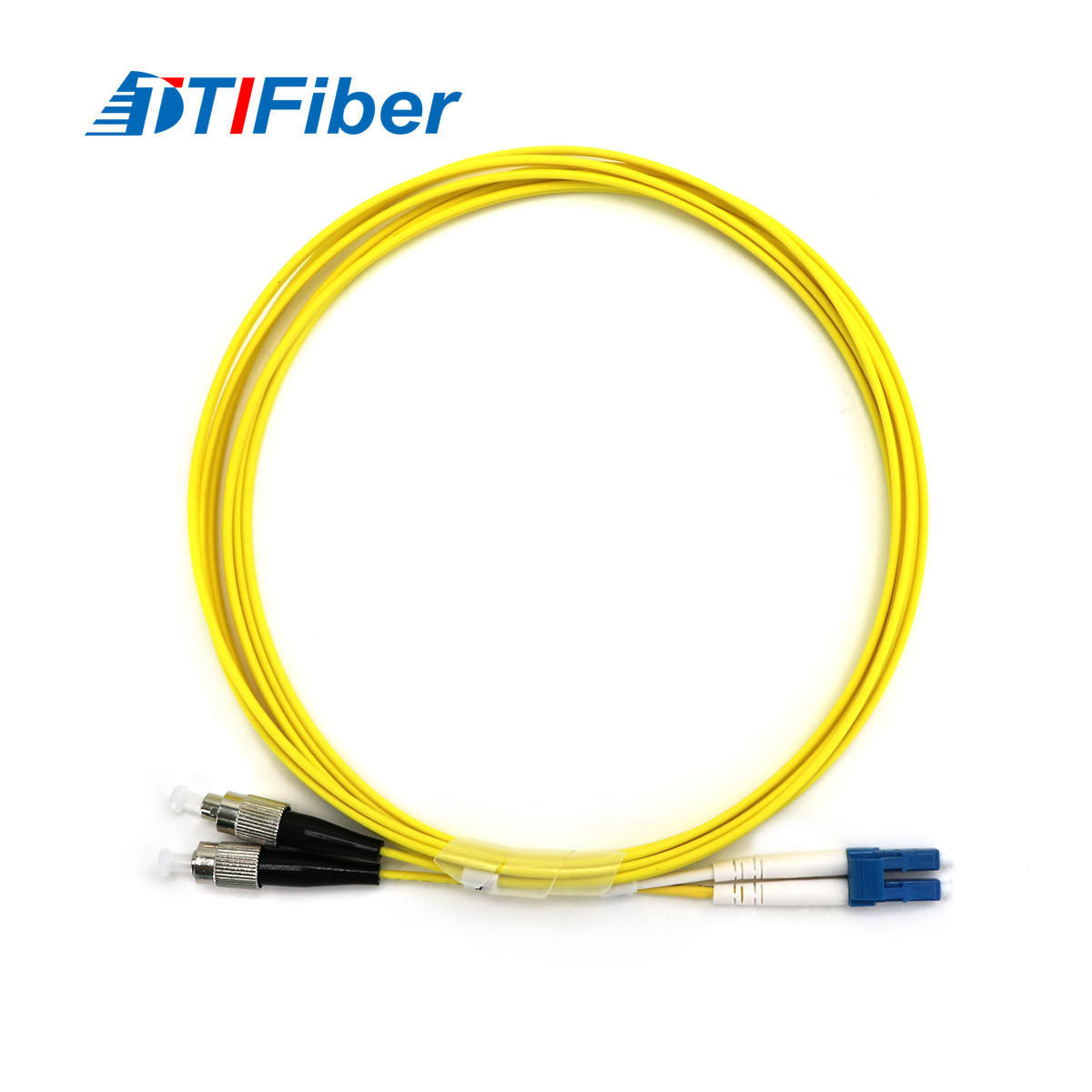

Fiber Optic Patch Cord Duplex Product Picture:
●Cooperate with Global 500 Top Brand, such as N(Finland ), C(USA)... work on Fiber Optic Products
● Stable partnership with more than 30 well known brand clients for 8 years.
● 100% on-time delivery, penalty agreement for delay.
● Professional team with 15 years of industrial experience.
● Free product design+free package design be provided.
● Full time 24 hours services.
