Model No: OM5 Fiber Optic Patch Cord

TTIFiber FC - FC Fiber Optic Patch Cord Green Jacket Multimode DX Duplex OM5

Fiber Type : Multimode

Cable Type : Duplex

Cable Jacket : PVC or LSZH outer jacket optional

Cable Color : Green

Durability : > 1000 times

Operating Temperature : -40°C ~ +70°C

Application : FTTH/Test equipments/TV/LAN/Telecommunication equipments

Length : Any length is customizable

Polish : PC/UPC/APC

minimum order :

1000

Quantity :

add to cart

Contact Now

TTIFiber FC - FC Fiber Optic Patch Cord Green Jacket Multimode DX Duplex OM5

Fiber Connector Performance Specification:

Connector Type	FC, SC, LC, ST, MU, MTRJ
Fiber Type	SM(G.652D/G.657A)			MM(OM1/OM2/OM3/OM4/OM5)
Ferrule End-face	PC	UPC	APC	UPC
Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
Exchangeability	≤0.2dB
Repeatability	≤ 0.1dB(1000 times)
Durability	> 1000 times
Operating Temperature	-40°C ~ +85°C

Fiber Cable Performance Specification:

Fiber type	Min. Bandwidth	Distance	Attenuation
62.5/125	850/1300nm 200/500 MHz/Km	@100Mbps 2km @1Gig 220m	850/1300nm 3.0/1.0dB/km
50/125	850/1300nm 500/500 MHz/Km	@100Mbps 2km @1Gig 500m	850/1300nm 3.0/1.0dB/km
50/125 10Gig Optimized	850/1300nm 2000/500 MHz/Km	@100Gig Varies by VCSEL typical 300m 2850nm	850/1300nm 3.0/1.0dB/km
9/125	1310/1550nm Approx 100 Terahertz	Up to 100km Varies by transceiver	1310/1550nm 0.4/0.3dB/km

Fc Pc Patch Cord Description:
Fiber optic patch cord is suitable for equipment jumper cable, cross connects, and work area connections. All fiber
optic patch cords are manufactured with telecom class and polished A, and 100% factory tested to ensure performance
to standards.
Optical fiber jumper / pigtail can be divided into common single-mode and multi-mode jumpers according to different
transmission media; according to the connector structure, it can be divided into FC jumper, SC jumper, St jumper, LC jumper,
MTRJ jumper, MPO jumper, Mu jumper, SMA jumper, FDDI jumper, din4 jumper, D4 jumper and other forms.

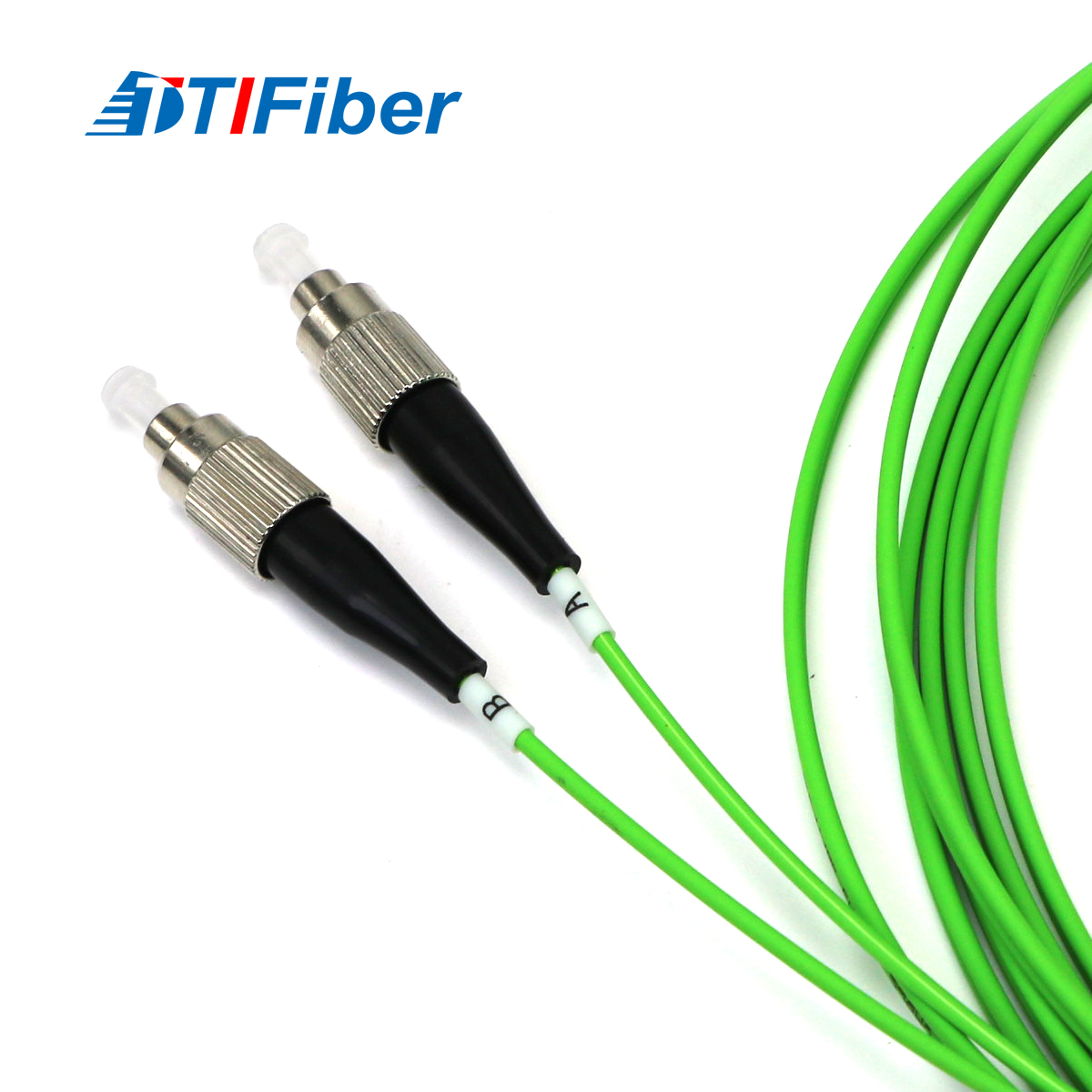

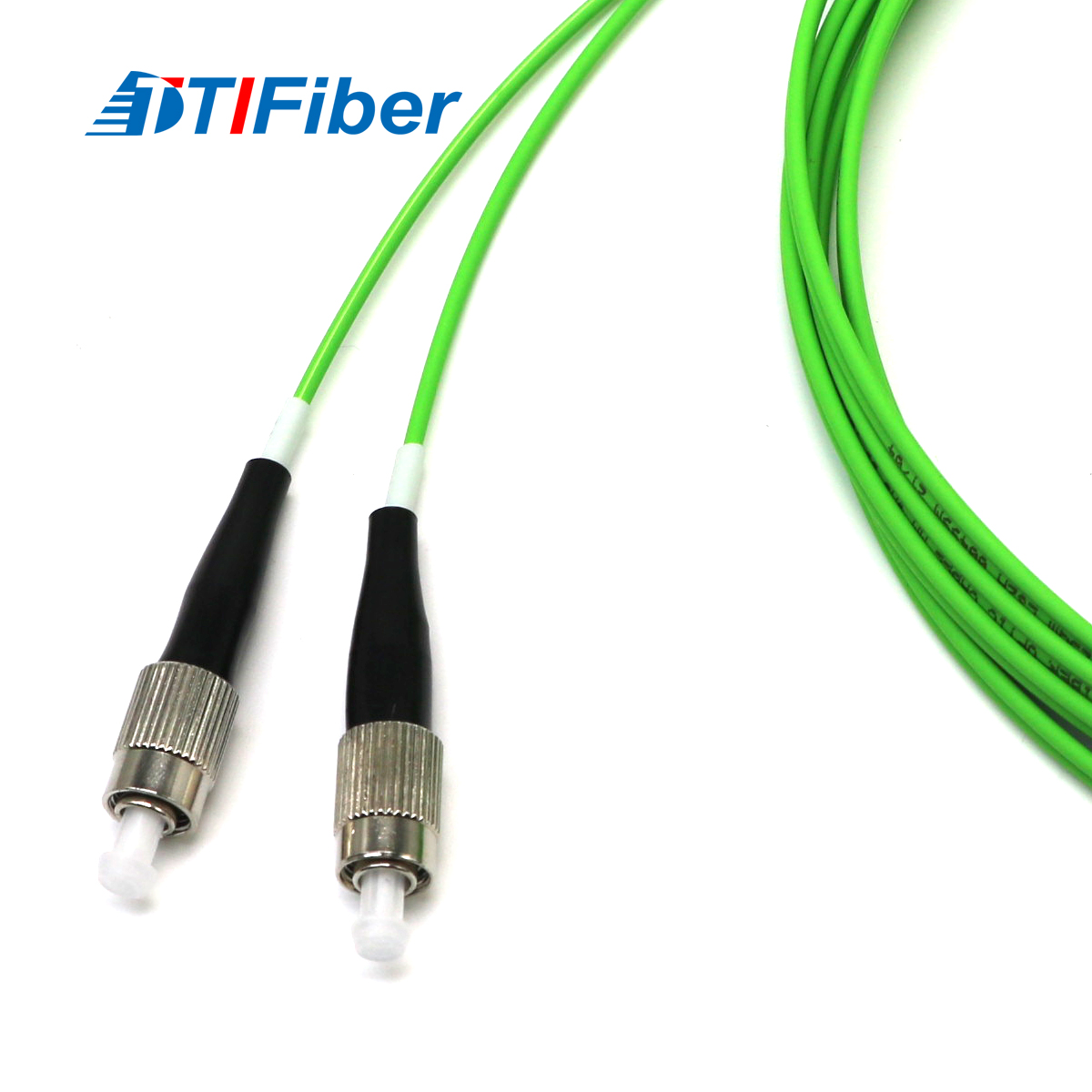

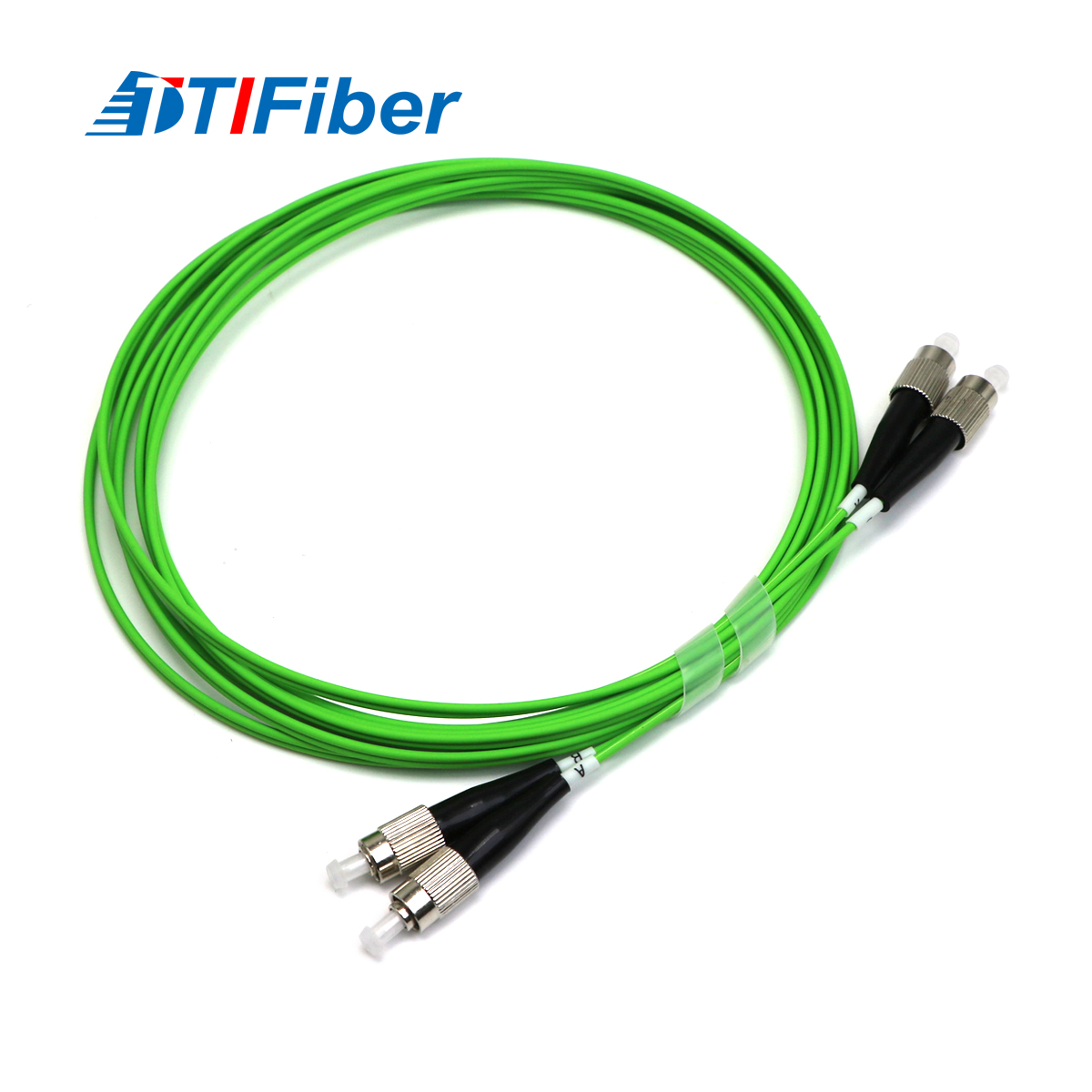

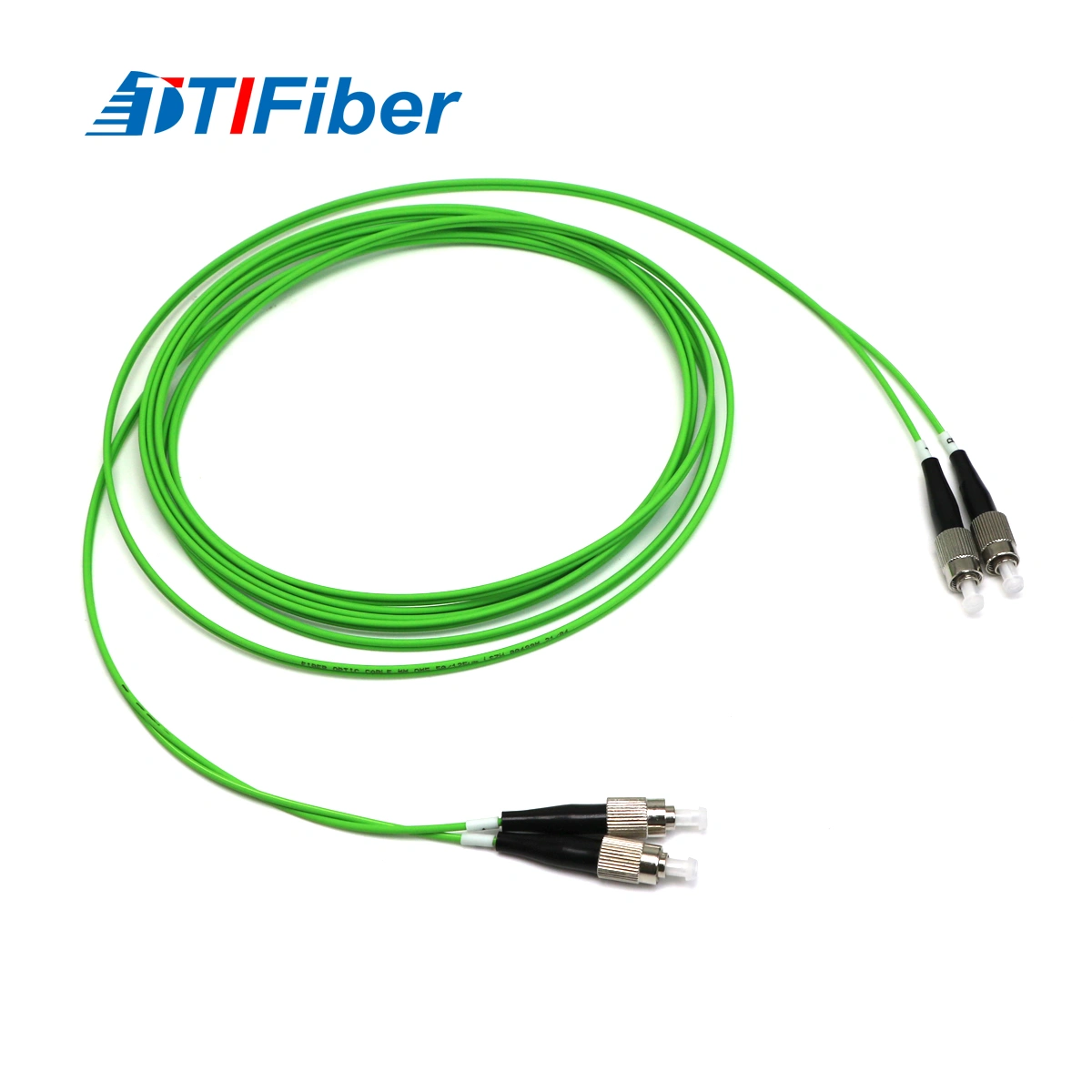

Product Display:

Jacket Multimode DX Duplex OM5

Product Features:
1). Low insertion loss
2). Low back reflection loss
3). Custom defined specifications
4). Easy installation
5). Environmentally stable

Product Application:
1). Telecommunications
2). Local area network
3). Fiber to the home
4). Video transmission
5). Fiber optic sensing
6). Testing instruments
7). CATV
