Model No: 100m FTTH Drop Cable

LC ST SC Connector 100m Outdoor FTTH Drop Cable Fiber Optic

Connector type : LC SC FC ST

Ferrule End Face : APC UPC

Color : Black or white

Cable Diameter : 2.0mm/3.0mm

Cable Type : PVC LSZH

Package : PE bag or wooden drum

minimum order :

1000 meters

Quantity :

add to cart

Contact Now

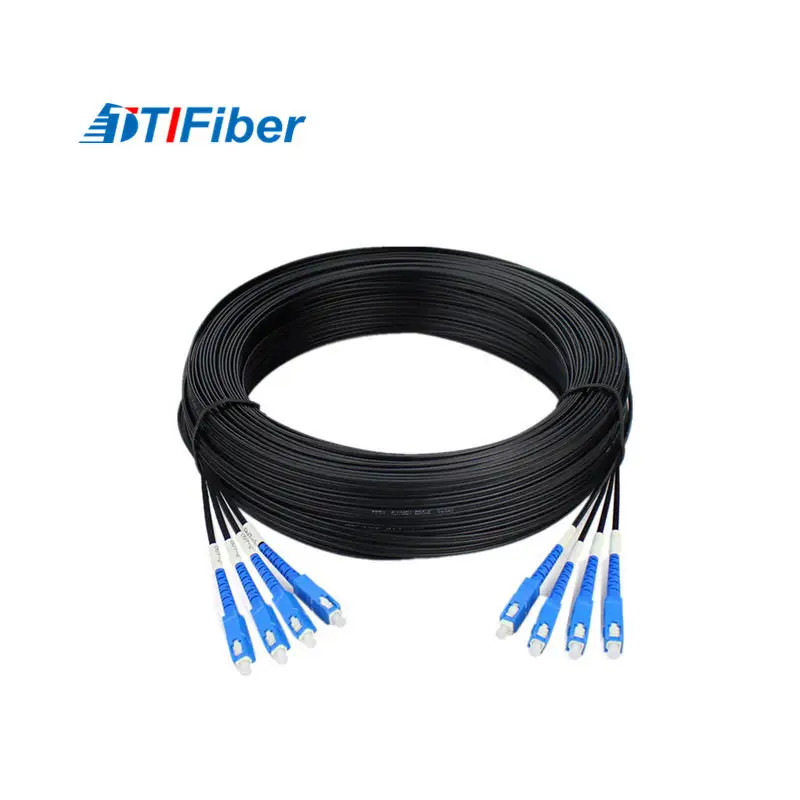

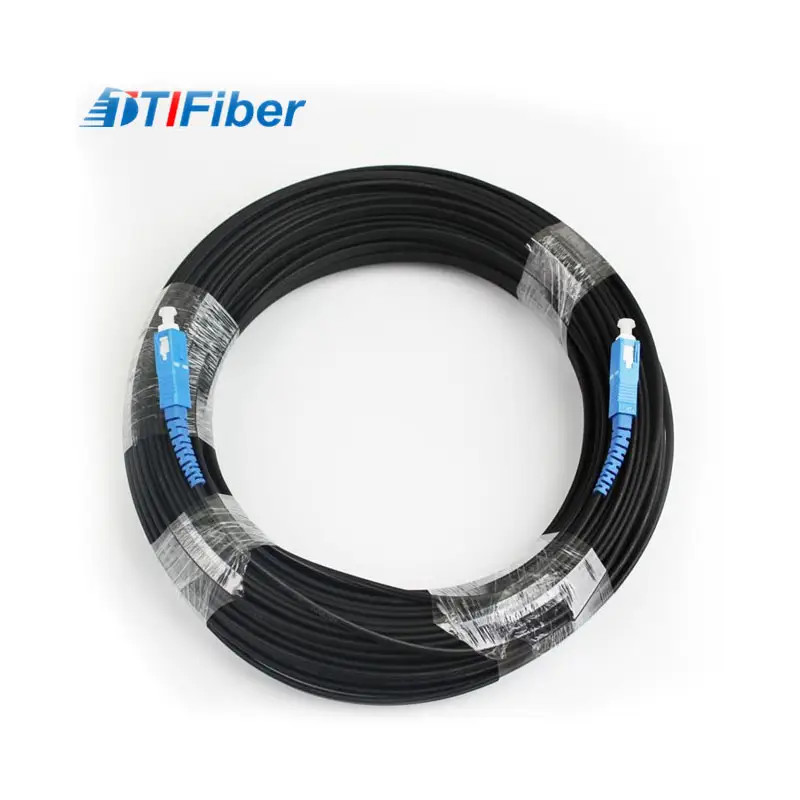

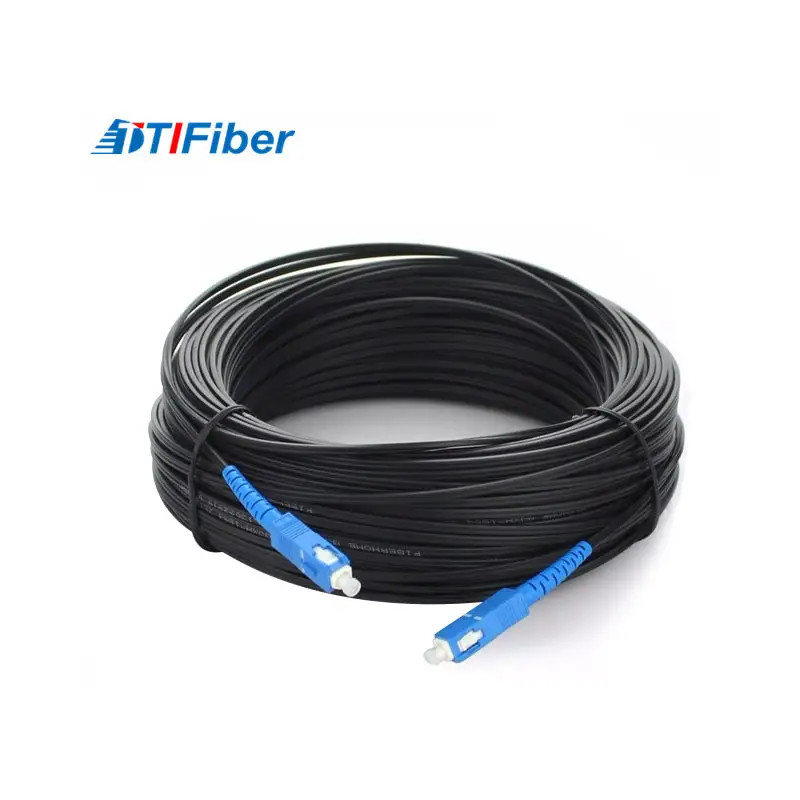

LC SC Connector Outdoor 100m FTTH Drop Cable Fiber Optic Patch Cord

Description of LC SC FC ST fiber optic patch cord

A LC SC FC ST fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly
and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer
of protection is used to connect the optical transmitter, receiver, and the terminal box. This is known as"
interconnect-style cabling".

Feasure of LC SC FC ST fiber optic patch cord

1) Low insertion loss high return loss

2)Excellent mechanical endurance

3)High credibility and stability

4)Good in repeatability and exchangeability

Application of LC SC FC ST fiber optic patch cord

1) Fiber optic communication networks

2) Optical access network

3) Data processing networks

4)Premise installations

Specification of Fiber Connectors Lc Sc St

Item	Unit	FC,SC,ST/PC	FC,SC,ST/UPC	FC,SC,ST/APC
Insertion Loss	dB	≤0.20	≤0.20	≤0.30
Repeatability	dB	≤0.10
Exchangeability	dB	≤0.20
Return Loss	dB	≥45(SM)	≥50(SM)	≥60(SM)
Fiber Type	Corning SMF-28TM, 9/125um (SM), 50/125um or 62.5/125um(MM)
Operating Temperature	°C	-40~+70
Storage Temperature	°C	-40~+70
Durability	time	>1000 times
