Model No: FTTH drop cable patch cord

G652D G657A FTTH Drop Cable Patch Cord 1m 2m 3m Customized Length

Fiber Type : G652D,G657A,G655
Application : FTTH FTTB FTTX Network
Connector Type : SC/Apc & SC/Upc
Material : PVC/LSZH
Product Namee : FTTH Drop Cable Patch Cord
Color : Customized
Wavelength : 1310nm Or 1550nm
Fiber Count : Simplex Or Duplex
Polish : PC/UPC/APC
Type : Single Mode/Multi-mode
Quality Control : 100% Test Before Shipping
Length : 1m 2m 3m Or Customized
High Light : G657A FTTH Drop Cable, G652D FTTH Drop Cable, G652D FTTH Patch Cord

minimum order :

1000 pieces

Quantity :

add to cart

Contact Now

G652D G657A FTTH Drop Cable Patch Cord 1m 2m 3m Customized Length

Fiber Optic Patch Cord,FTTH drop cable patch cord LC SC/PC SC/APC connector SX DX SM,MM,G652D
G657A, 0.9 2.0 3.0mm, PVC LSZH

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber
optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major
application areas: computer work station to outlet and patch panels or optical cross connect distribution center.
TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core,
armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables,
the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO
cables in stock.

2m Cat5e Patch CordSpecification:

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

2m Patch Cord Cat5e Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.
4. Environmentally Stable

1m Cat6 Patch Cord Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

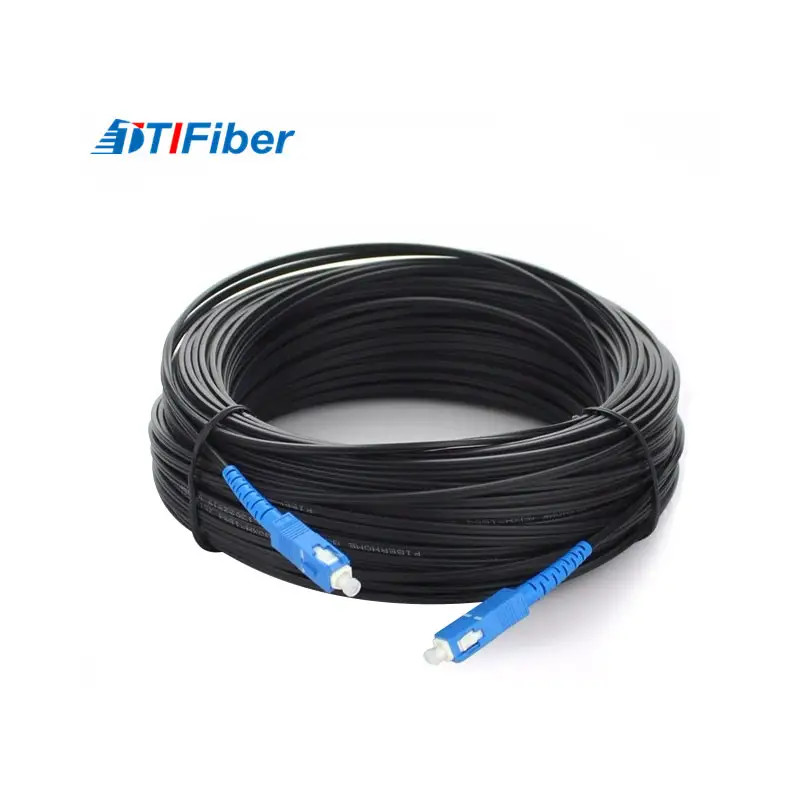

Product Picture of Outdoor Ftth Drop Cable:
FTTH Drop Cable Patch Cord
