G657A1 G657A2 GJYXCH Fiber Optic Cable FTTH Outdoor 4 Core Flat Drop Self Supported
Cable Core : 4 Core
Fiber Mode : Singlemode Multimode
Cable Jacket : LSZH
Usage : Indoor Outdoor
Strength : FRP KFRP Steel
Cable Color : lack
High Light : G657A1 Flat Drop Fiber Cable, G657A2 Flat Drop Fiber Cable, 4 Core Ftth Flat Drop Cable
FTTH Drop Cable Outdoor 4 Core G657A1 G657A2 Gjyxch Self-Supported Drop Fiber Optic Flat Cable
G 657 A2 Description:

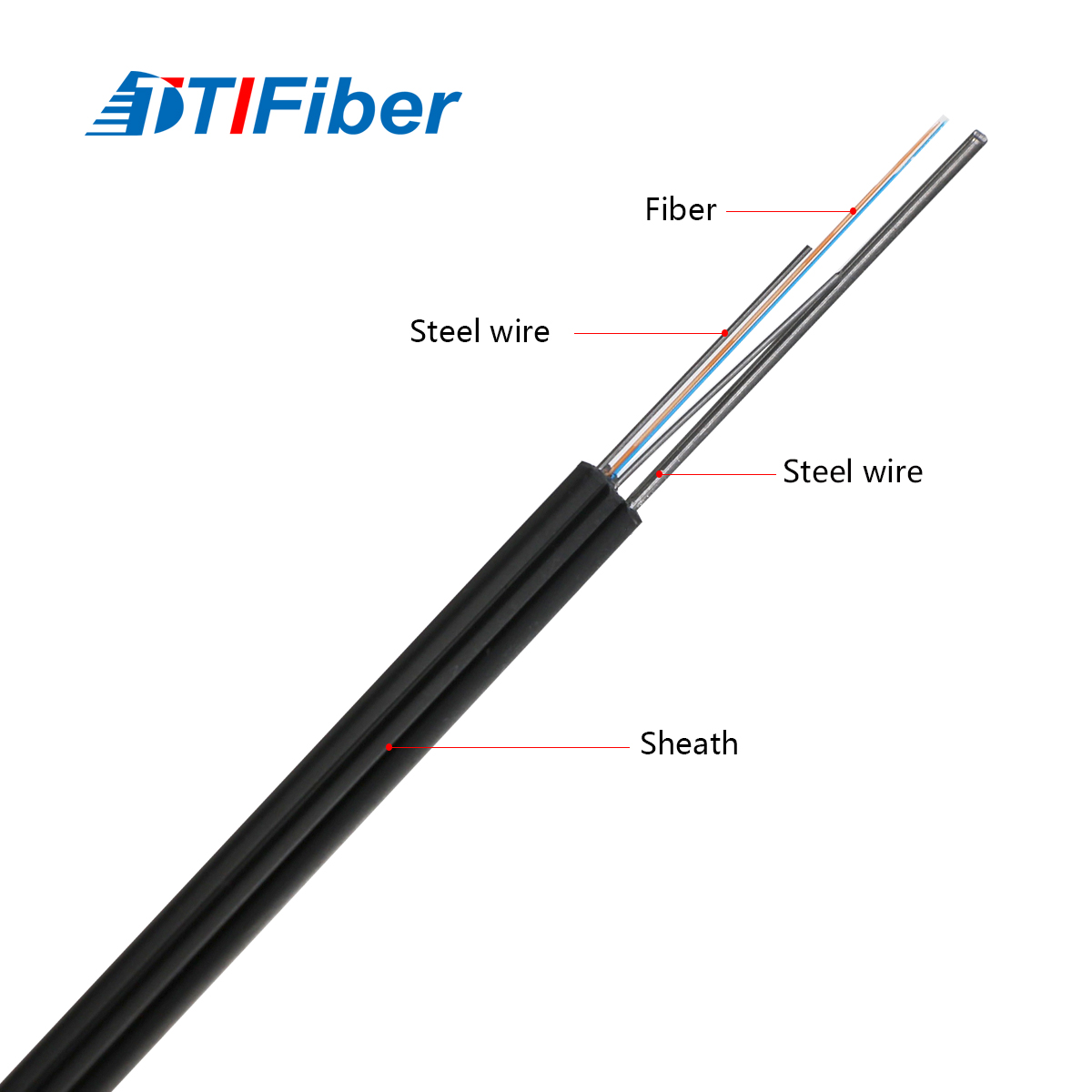

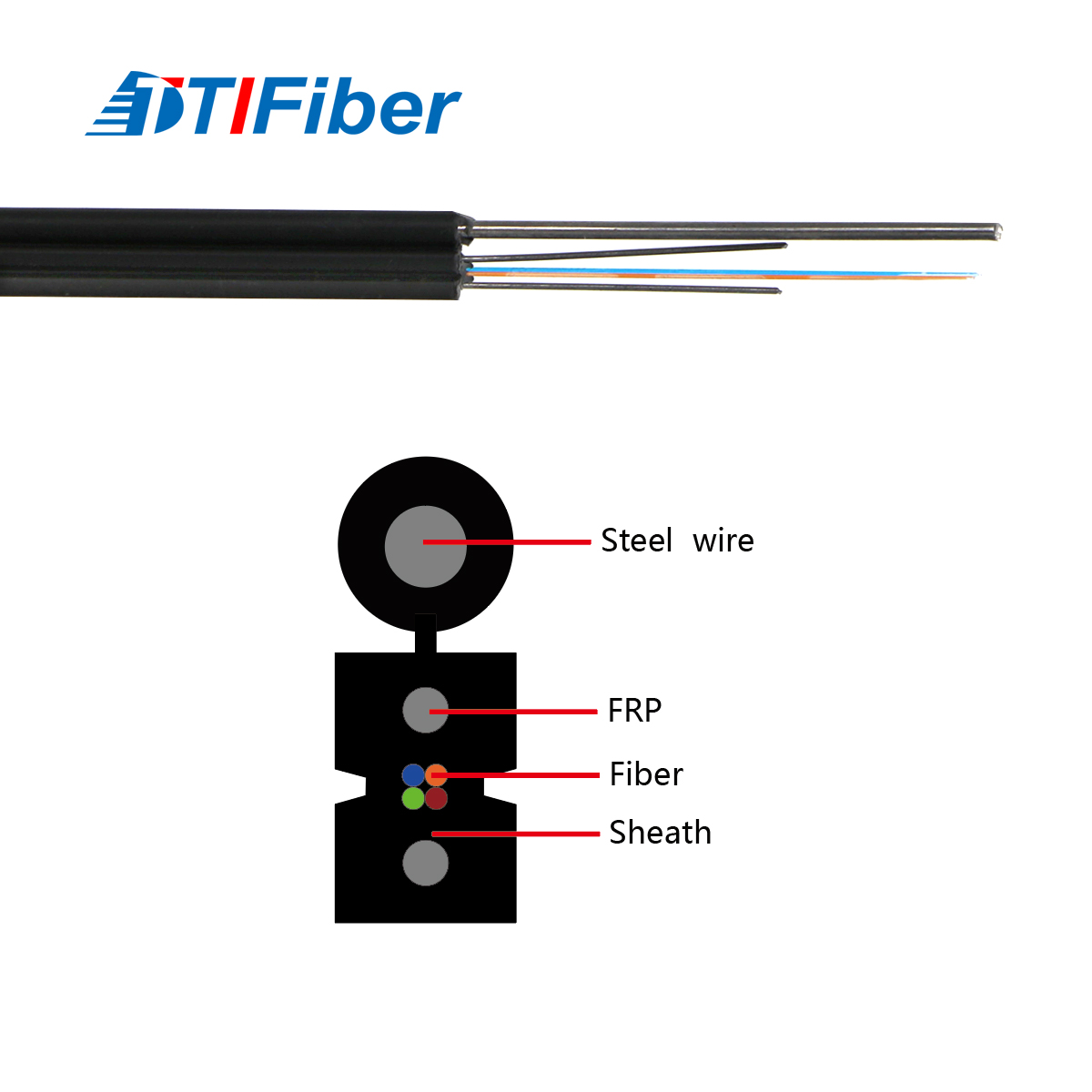

FTTH Drop Cable fiber unit is positioned in the centre.
Two steel wires or Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides.
A steel wire as the additional strength member is also applied.
Then the cable is completed with a black or color LSZH sheath.
G 657 A1 Fiber Feature:
Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.
Environmental protection- Low smoke, zero halogen and flame retardant sheath.
Good preformance of water-proof.
Soft and bendable, easy to deploy and maintenance.
Smaller diameter, Light weight, and high practicability.
G 657 A2 Fiber Application:
High speed optical routes in buildings (FTTx)
Application in L band
All types of fiber cables with different structures
High performance optical network operating
Specification:
FTTH Drop Cable Construction Parameter:
| Fiber Core / FTTH Drop Cable | 1 | 2 | 1 | 4 |
| Cable Dimension(mm) | 2.0×5.0 | 2.0×5.0 | 2.0×5.3 | 2.0×5.3 |
| Cable Weight(kg/km) | 9 | 10 | 11 | 12 |
Mechanical & Environmental Performance:
| Max Load (N) | Long Term | 60 | 60 | 60 | 60 |
| Short Term | 120 | 120 | 120 | 120 | |
| Bending Radius(CM) | Dynamic | 30 | |||
| Static | 15 | ||||
G657A1 G657A2 GJYXCH FTTH Drop Cable Product Picture:
