Model No: GCYFTY
GCYFTY Fiber Optic Cable Central Bundle Tube Type Micro Air Blown Micro Fiber Optic Cable
Cable Type : GCYFTY
Fiber Count : 12 ~ 288
Diameter (mm) : 4.5 ~ 9.3
Weight (kg/km) : 16 ~ 80
Tensile strength : 0.3G
Long/Short term (N) : 1.0G
Crush resistance : 150
Long/Short term (N/100mm) : 500
Fiber Count : 12 ~ 288
Diameter (mm) : 4.5 ~ 9.3
Weight (kg/km) : 16 ~ 80
Tensile strength : 0.3G
Long/Short term (N) : 1.0G
Crush resistance : 150
Long/Short term (N/100mm) : 500
Quantity :
GCYFTY Fiber Optic Cable Central Bundle Tube Type Micro Air Blown Micro Fiber Optic Cable

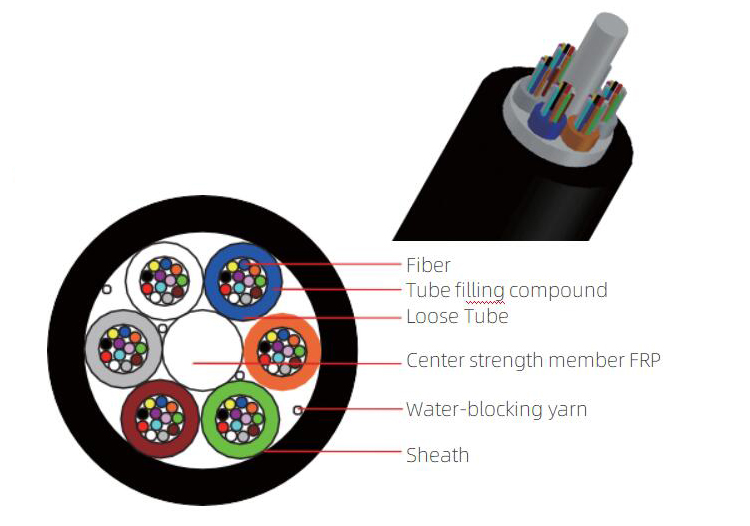

GCYFTY fiber optic Loose layer stranded air blowing micro cable adopts the structure of non-metallic reinforcement and no
armor. It can be laid by pulling or air blowing micro pipeline in the laid outer protective pipe, and then air blowing
micro cable in the micro pipe, which breaks through the limitations of the existing pipeline cable laying technology,
improves the utili ation efficiency of the pipeline, and is easy to expand the capacity.
armor. It can be laid by pulling or air blowing micro pipeline in the laid outer protective pipe, and then air blowing
micro cable in the micro pipe, which breaks through the limitations of the existing pipeline cable laying technology,
improves the utili ation efficiency of the pipeline, and is easy to expand the capacity.
Fiber Outdoor Features
①The optical fiber cable has the advantages of small si e, light weight, moderate soft and hard, easy bending
during air blowing laying and convenient operation.
②All non-metallic structure without grounding.
③The micro cable can be blown out to facilitate the replacement of new varieties of optical fibers and cables
in the future.
④Good crush resistangce and flexibility.
Fiber Optic Outdoor Optical Characteristics
Item | G.652 | G.655 | 50/125um | 62.5/125um | |
Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.2dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
@1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||
Structural Parameters
Cable Type | Fiber Count | Diameter (mm) | Weight (kg/km) | Tensile strength Long/Short term (N) | Crush resistance Long/Short term (N/100mm) |
GCYFTY | 12~36 | 4.5 | 16 | 0.3G/1.0G | 150/500 |
GCYFTY | 48~72 | 5.4 | 26 | 0.3G/1.0G | 150/500 |
GCYFTY | 96 | 6.1 | 36 | 0.3G/1.0G | 150/500 |
GCYFTY | 144 | 7.9 | 52 | 0.3G/1.0G | 150/500 |
GCYFTY | 192 | 7.9 | 52 | 0.3G/1.0G | 150/500 |
GCYFTY | 216 | 7.9 | 52 | 0.3G/1.0G | 150/500 |
GCYFTY | 288 | 9.3 | 80 | 0.3G/1.0G | 150/500 |
Environmental Characteristics
Operating temperature / -20~+70℃
Storage temperature / -20~+70℃
Operating temperature / -20~+70℃
Storage temperature / -20~+70℃
