Model No: GCYFXTY

GCYFXTY Central Bundle Tube Type Micro Air Blown Micro Fiber Optic Cable

This high-quality cable ensures high-speed data transmission with optimal signal integrity for various applications.

minimum order :

1000 meters

Quantity :

add to cart

Contact Now

Central Bundle Tube Type Micro Air Blown Micro GCYFXTY Fiber Optic Cable

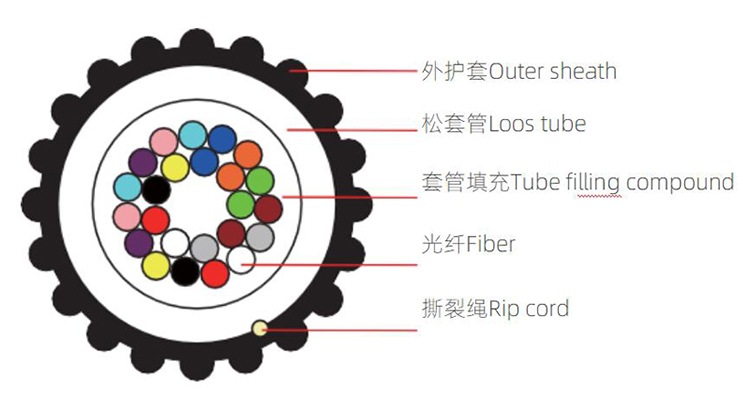

GCYFXTY Fiber Optic Cable The central tube type air blown micro cable is formed by putting the optical
fiber into the loose tube made of high modulus material, filling the loose tube with non-toxic and harmless
waterproof compound, placing the reinforcing element aramid outside the loose tube as required, and then
extruding the sheath with low friction coefficient.

Micro Fiber Optic Cable Features
① The optical fiber cable has the advantages of small si e, light weight, moderate soft and hard, easy bending
during air blowing laying and convenient operation.
② All non-metallic structure without grounding.
③ The micro cable can be blown out to facilitate the replacement of new varieties of optical fibers and cables
in the future.
④ Good crush resistangce and flexibility.

Optical Characteristics

Item		G.652	G.655	50/125um	62.5/125um
Attenuation	@850nm			≤3.0dB/km	≤3.2dB/km
	@1300nm			≤1.0dB/km	≤1.2dB/km
	@1310nm	≤0.36dB/km	≤0.40dB/km
	@1550nm	≤0.22dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500MHZ.km	≥200MHZ.km
Bandwidth	@1300nm			≥1000MHZ.km	≥600MHZ.km
Numerical aperture				0.200±0.015NA	0.275±0.015NA
Cable cut-oﬀ wavelength		≤1260mm	≤1450mm

Structural Parameters

Cable Type

Fiber Count

Diameter (mm)

Weight

(kg/km)

Tensile strength

Long/Short term (N)

Crush resistance

Long/Short term (N/100mm)

GCYFTY

2~12

2.5

5

0.15G/0.5G

150/450

GCYFTY

14~24

3.0

7

0.15G/0.5G

150/450

Environmental Characteristics

Operating temperature / -40~+70℃

Storage temperature / -40~+70℃
