Model No: INVISIBLE OPTIC FIBER CABLE
TTI GJH INVISIBLE OPTIC FIBER CABLE
Cable Type : GJH
Fiber diameter（μm） : 247±0.7
Tightening diameter(μm) : 900±50
Weight（kg/km） : 0.8
Tensile Long / Short term（N） : 5/10
Crush Long / Short term（N） : 300/1000
Bending radius Static/Dynamic（mm） : 20D/10D
Peel strength（N） : ≤13.3
Materia : Nylon/TPU
Fiber diameter（μm） : 247±0.7
Tightening diameter(μm) : 900±50
Weight（kg/km） : 0.8
Tensile Long / Short term（N） : 5/10
Crush Long / Short term（N） : 300/1000
Bending radius Static/Dynamic（mm） : 20D/10D
Peel strength（N） : ≤13.3
Materia : Nylon/TPU
minimum order :
1000 meters
Quantity :
GJH INVISIBLE OPTIC FIBER CABLE

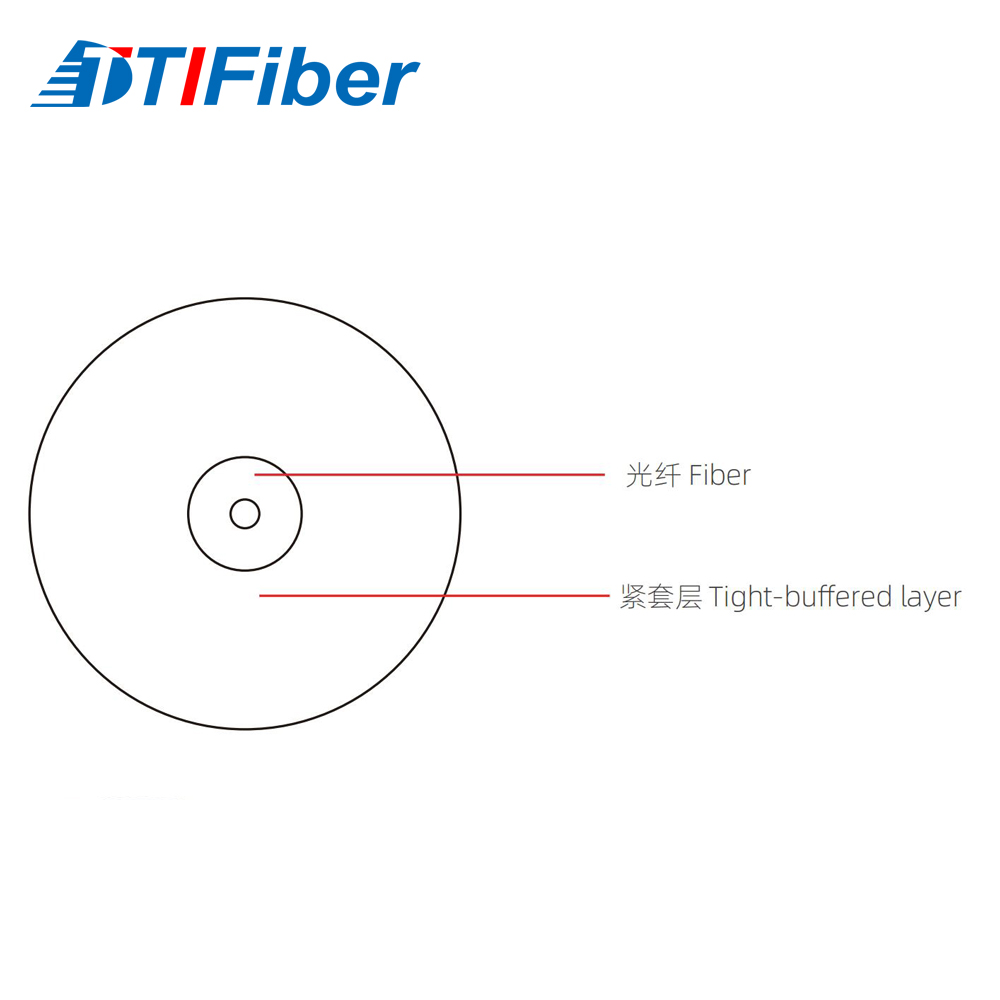

GJH INVISIBLE OPTIC FIBER CABLE is made by extruding a layer of nylon 12 (PA12) or thermoplastic polyurethane
elastomer (TPU) material, which is highly transparent, hard, and resistant to bending, on the outside of the coated
optical fibre. By selecting high quality optical fibre, using special equipment, with precision moulds, the product
hasexcellent performance.
elastomer (TPU) material, which is highly transparent, hard, and resistant to bending, on the outside of the coated
optical fibre. By selecting high quality optical fibre, using special equipment, with precision moulds, the product
hasexcellent performance.
Features
①Good bending performance.
②Good peeling ability.
③Stable high and low temperature characteristics.
④Good transparency.
①Good bending performance.
②Good peeling ability.
③Stable high and low temperature characteristics.
④Good transparency.
Product Application
①Indoor comprehensive wiring.
②Interconnection of instruments and communication equipment.
①Indoor comprehensive wiring.
②Interconnection of instruments and communication equipment.
Optical Characteristics
Fiber type | Attenuation | Full injection bandwidth | Effective bandwidth | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | Max | Typical value | Max | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G 652D | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 16 |
G 657A1 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 10 |
G 657A2 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 7.5 |
50/125 | - | - | 3.0/1.0 | 3.5/1.5 | ≥500/500 | - | - | 30 |
62.5/125 | - | - | 3.0/1.0 | 3.5/1.5 | ≥200/500 | - | 30 | |
OM3 | - | - | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | - | - | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Structural Parameters
Cable Type | Fiber diameter（μm） | Tightening diameter(μm) | Weight（kg/km） | Tensile Long / Short term （N） | Crush Long / Short term （N） | Bending radius Static/Dynamic （mm） | Peel strength（N） | Materia |
GJH | 247±0.7 | 900±50 | 0.8 | 5/10 | 300/1000 | 20D/10D | ≤13.3 | Nylon/TPU |
Environmental Characteristics
Operating temperature / -20~+60℃
Storage temperature / -5~+50℃
Operating temperature / -20~+60℃
Storage temperature / -5~+50℃
