GJXH Indoor Drop Fiber Optic Cable
GJXH Indoor Drop Fiber Optic Cable
GJXH Indoor Drop Fiber Optic Cable
indoor fiber
Model No: GJXH

GJXH Indoor Drop Fiber Optic Cable

Model Number : GJXH

Type : Ftth Drop Cable

Number of Conductors : 2

Jacket : LSZH

Fiber count : 1-12Cores

Length : Custom Length

Packing : 2km/drum

Certification : ISO9001
Quantity :
add to cart
Contact Now
GJXH Indoor Drop Fiber Optic Cable

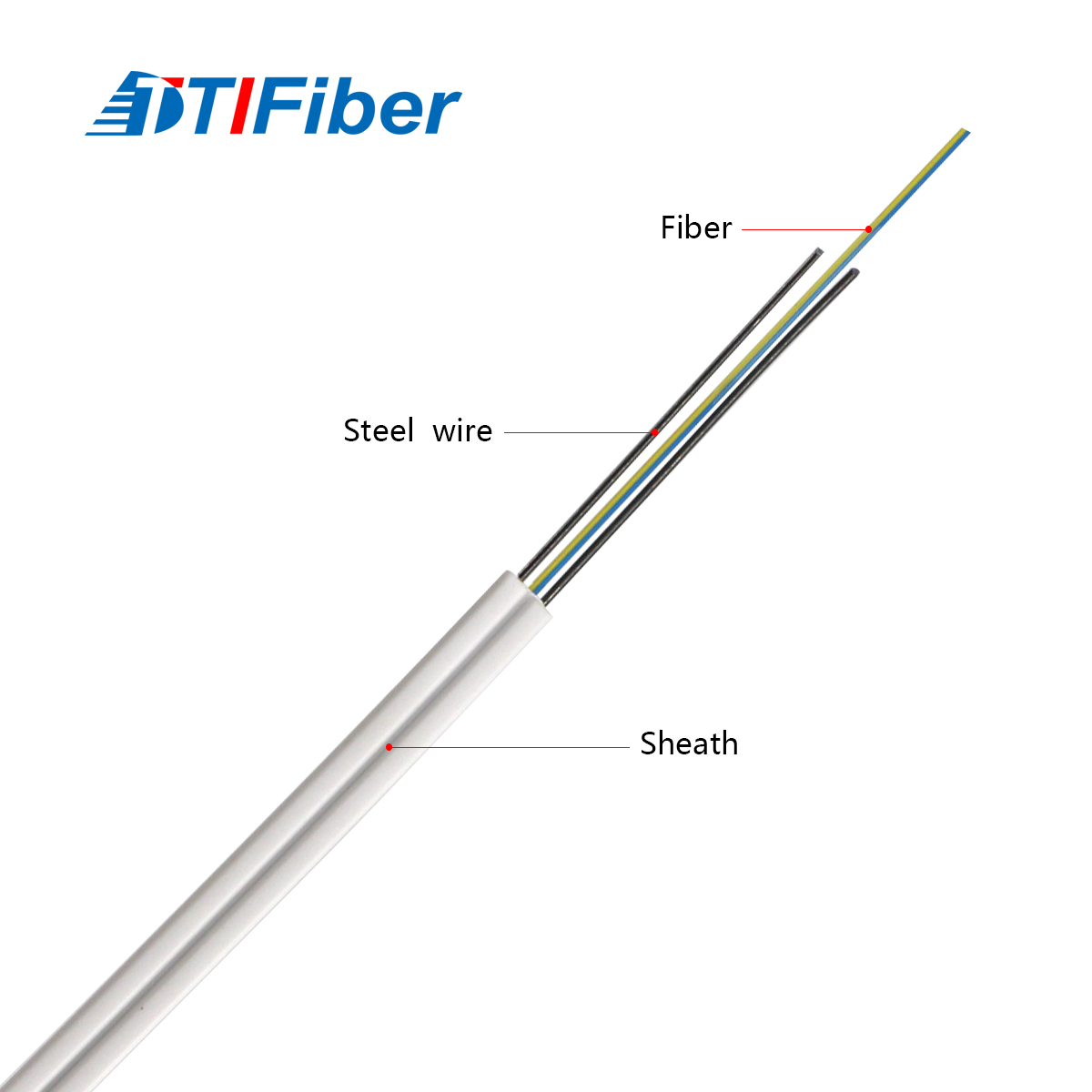

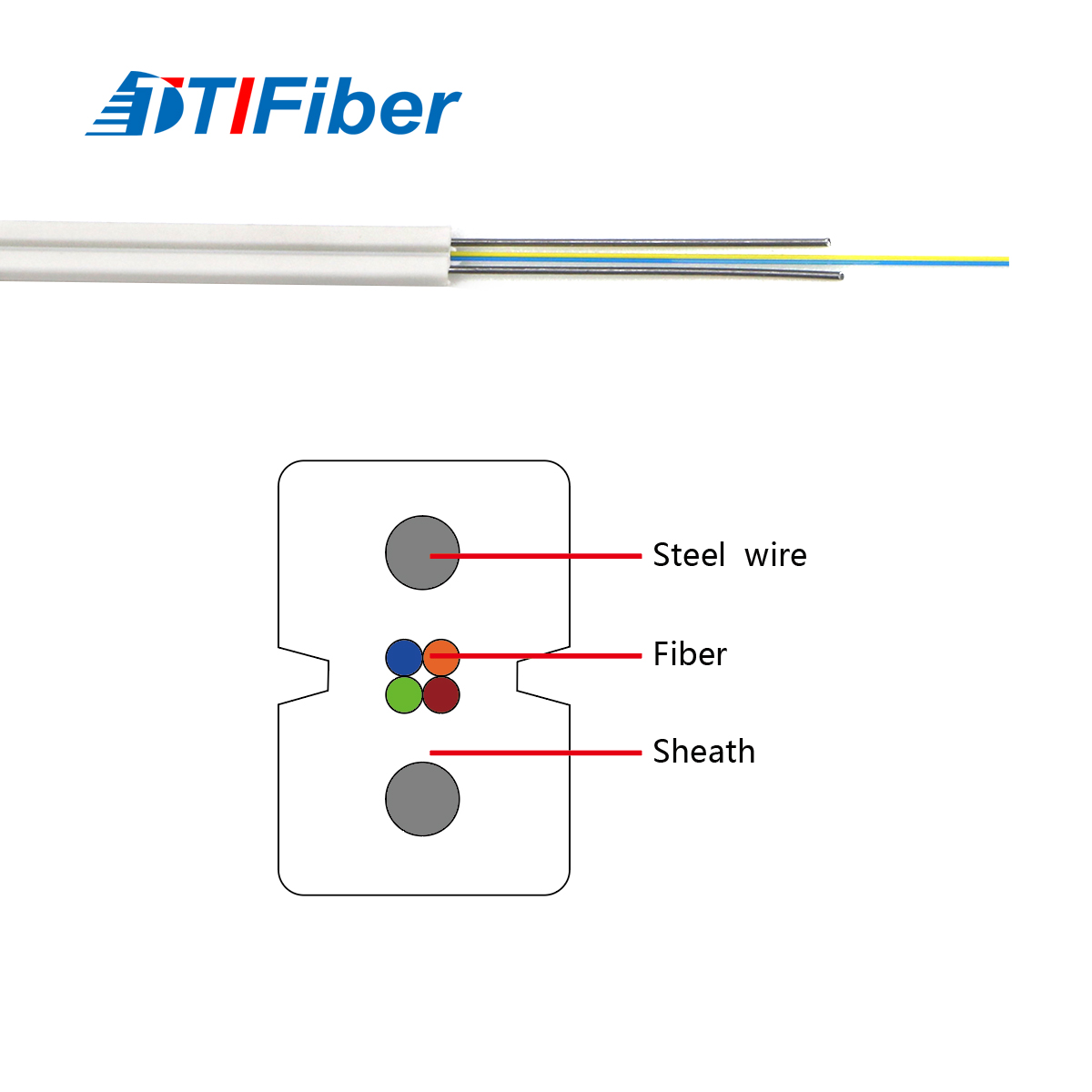

GJXH Indoor Drop Fiber Optic Cable is the optical communication unit in the center. Two parallel reinforcements (FRP/KFRP/steel wire)
are placed on both sides. Finally, black or color low smoke halogen-free flame retardant sheath cable is extruded.

Indoor Fiber Features
①Bend resistant fiber provides greater bandwidth and enhances network transmission characteristics.
②Two parallel stiffeners make the optical cable have good compressive performance and protect the optical fiber.
③The optical fiber cable has the advantages of simple structure, light weight and strong practicability.
④Unique groove design, easy to peel, easy to connect, simplify installation and maintenance.
⑤Low smoke halogen-free flame retardant sheath, environmental protection.

Product application
①FTTX.
②Fiber to home.
GJXH Indoor Drop Fiber Optic CableGJXH Indoor Drop Fiber Optic Cable
Optical Characteristics

Fiber type

Attenuation

Full injection bandwidth

Effective bandwidth

10G Ethernet link length

Minimum bending radius

Condition

1310/1550nm

850/1300nm

850/1300nm

850nm

850nm

/

Typical value

Max

value

Max

Unit

dB/km

dB/km

dB/km

dB/km

MHZ.km

MHZ.km

m

mm

G 652D

0.36/0.22

0.5/0.4

-

-

-

-

-

16

G 657A1

0.36/0.22

0.5/0.4

-

-

-

-

-

10

G 657A2

0.36/0.22

0.5/0.4

-

-

-

-

-

7.5

50/125

-

-

3.0/1.0

3.5/1.5

≥500/500

-

-

30

62.5/125

-

-

3.0/1.0

3.5/1.5

≥200/500

-

30

OM3

-

-

3.0/1.0

3.5/1.5

≥1500/500

≥2000

≤300

30

OM4

-

-

3.0/1.0

3.5/1.5

≥3500/500

≥4700

≤550

30



Structural Parameters

Cable model

Cable diameter

(mm)

Weight (kg/km)

Allowable tensile force

Long / Shor（N）

Allow squash Force

Long / Short（N）

Bending radius

Static / dynamic

（mm）

GJXH -1/2/4

（2.0*3.0）±0.1

10

40/80

500/1000

15D/30D

GJXFH-1/2/4

（2.0*3.0）±0.1

9

40/80

500/1000

15D/30D

GJXDH-4

（2.0*4.0）±0.1

10.3

40/80

500/1000

15D/30D

GJXFDH-4

（2.0*4.0）±0.1

9.3

40/80

500/1000

15D/30D



Environmental Characteristics
Operating temperature / -20~+60℃
Storage temperature / -20~+60℃

Standards
Comply YD / T 1997.1、ICEA-596、GR-409、IEC 60794 etc.
