Drop Fiber Optic Cable
Drop Fiber Optic Cable
Model No: GJYXCH

GJYXCH Indoor / Outdoor Drop Fiber Optic Cable

Model Number : GJYXCH

Use : FTTH

Network : Wireless Lan, None, wifi, 4g

Cores : 1 2 4

Jacket : LSZH

Fiber : G652D G657A

Strength member : 1.0mm or 1.2mm Steel

Cetificates : RoHS , ISO9001

Application : FTTH FTTB FTTX Network
Quantity :
add to cart
Contact Now
GJYXCH Indoor / Outdoor Drop Fiber Optic Cable

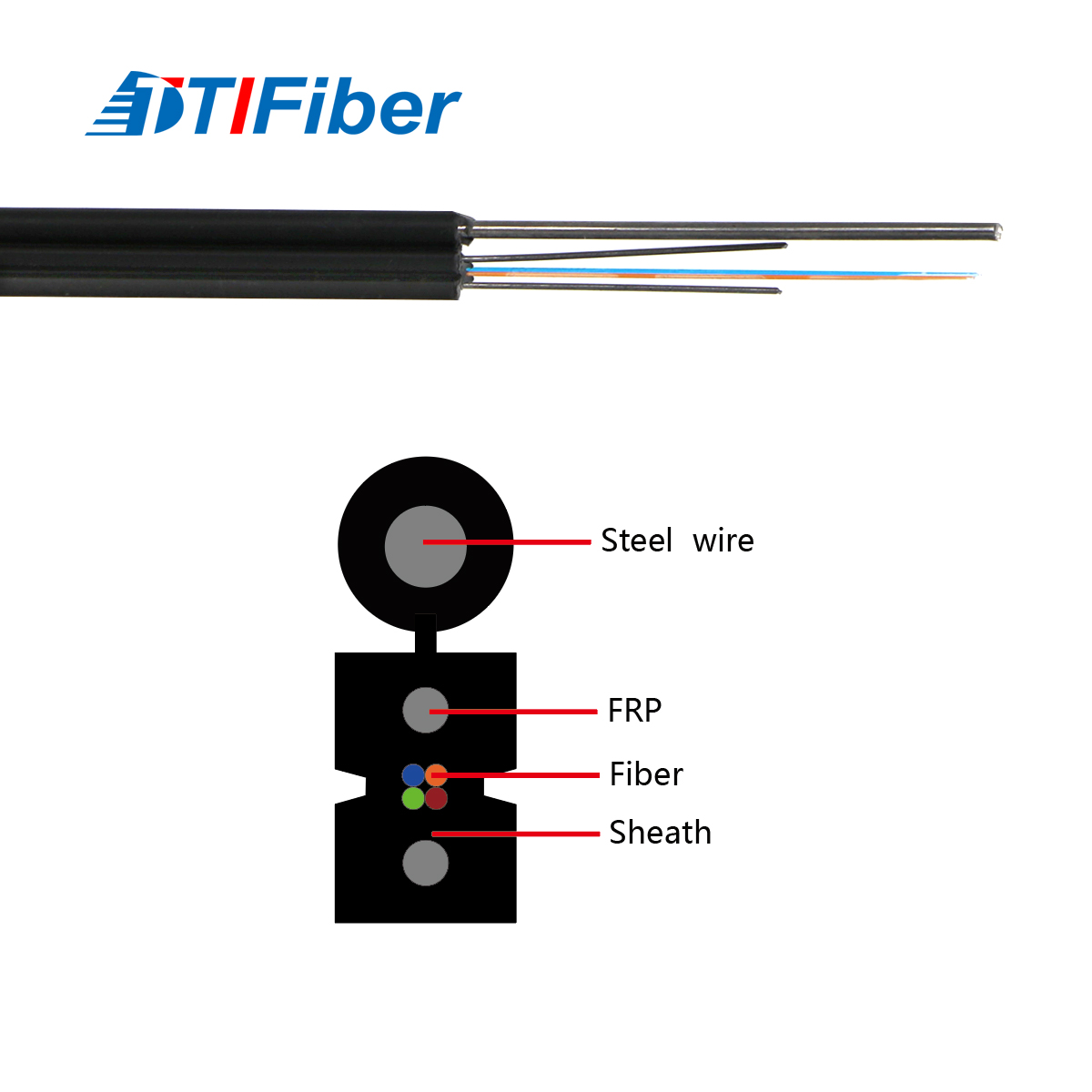

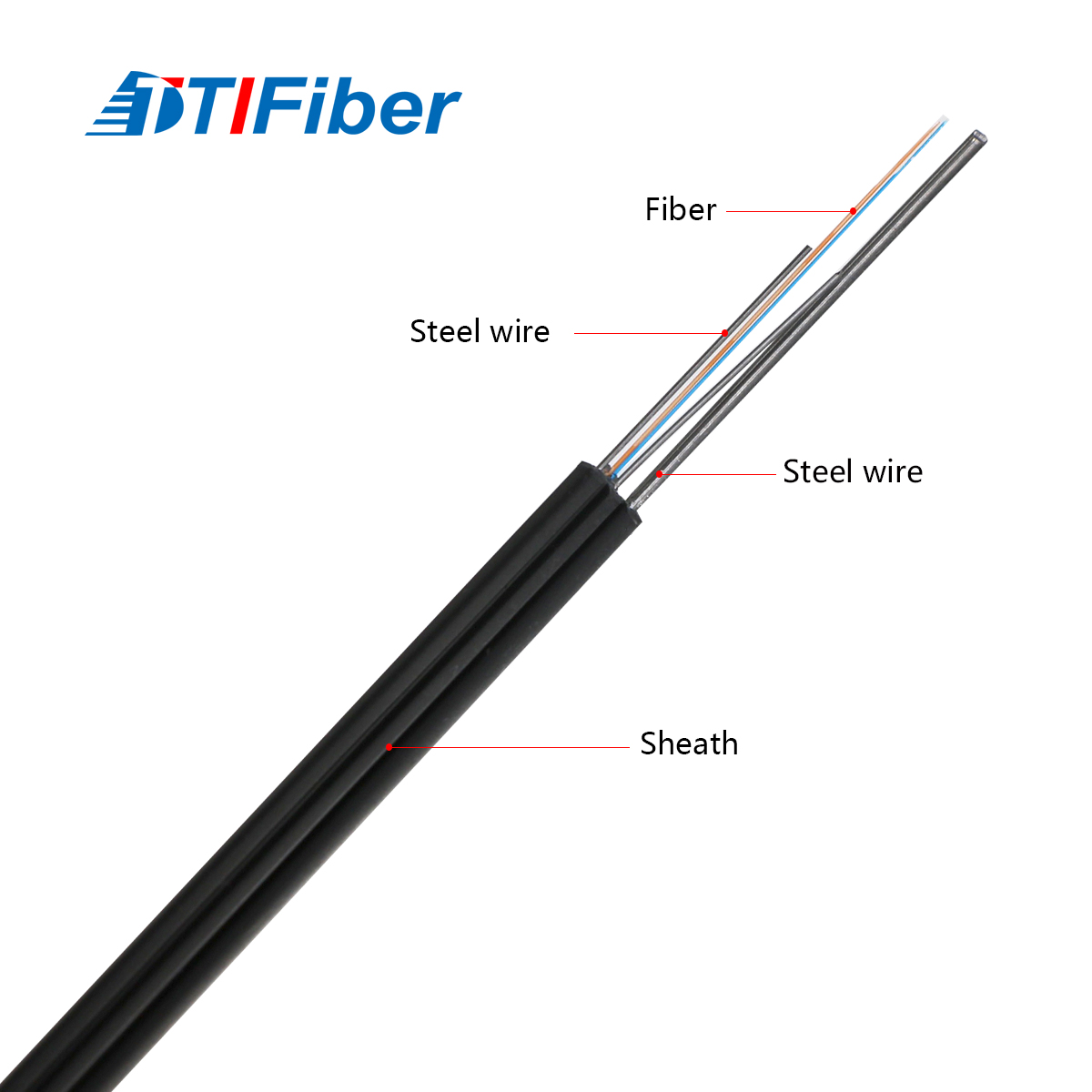

GJYXCH Indoor / Outdoor Drop Fiber Optic Cable for communication use the optical communication unit at the center,
two parallel strengthening elements (GFRP/KFRP/steel wire) are placed on both sides, and a steel wire strengthening
element is added to the side, and finally extruded black or color low smoke-free halogen sheath into cable.

Indoor Optic Fiber Cable Features
①Bend resistant fiber provides greater bandwidth and enhances network transmission characteristics.
②Two parallel stiffeners make the optical cable have good compressive performance and protect the optical fiber.
③A single steel wire is added with reinforcing elements to make the optical cable have good tensile properties.
④The optical fiber cable has the advantages of simple structure, light weight and strong practicability properties.
⑤Unique groove design, easy to peel, easy to connect, simplify installation and maintenance.
⑥Low smoke halogen-free flame retardant sheath, environmental protection.

Product application
①FTTX.
②Fiber to home.
Drop Fiber Optic CableDrop Fiber Optic Cable
Optical Characteristics

Fiber type

Attenuation

Full injection bandwidth

Effective bandwidth

10G Ethernet link length

Minimum bending radius

Condition

1310/1550nm

850/1300nm

850/1300nm

850nm

850nm

/

Typical value

Max

Typical value

Max

Unit

dB/km

dB/km

dB/km

dB/km

MHZ.km

MHZ.km

m

mm

G 652D

0.36/0.22

0.5/0.4

-

-

-

-

-

16

G 657A1

0.36/0.22

0.5/0.4

-

-

-

-

-

10

G 657A2

0.36/0.22

0.5/0.4

-

-

-

-

-

7.5

50/125

-

-

3.0/1.0

3.5/1.5

≥500/500

-

-

30

62.5/125

-

-

3.0/1.0

3.5/1.5

≥200/500

-

30

OM3

-

-

3.0/1.0

3.5/1.5

≥1500/500

≥2000

≤300

30

OM4

-

-

3.0/1.0

3.5/1.5

≥3500/500

≥4700

≤550

30


Structural Parameters

Cable model

Cable diameter(mm)

Weight (kg/km)

Allowable tensile force

Long / Short（N）

Allow squash Force

Long / Short（N）

Bending radius

Static / dynamic

（mm）

GJYXCH-1/2/4

（2.0±0.1）*（5.0±0.2）

21

300/600

1000/2200

15D/30D

GJYXFCH-1/2/4

（2.0±0.1）*（5.0±0.2）

20

300/600

1000/2200

15D/30D

GJYXDCH-4

（2.0±0.1)*(6.0±0.2)

22

300/600

1000/2200

15D/30D

GJYXFDCH-4

（2.0±0.1)*(6.0±0.2)

21

300/600

1000/2200

15D/30D


Environmental Characteristics
Operating temperature / -20~+60℃
Storage temperature / -20~+60℃

Standards
Comply YD / T 1997.1、ICEA-596、GR-409、IEC 60794 etc.
