Model No: GJYXHS

GJYXHS G652D G657A1 G657A2 50/125 62 5/125 OM3 OM4 Duct Drop Fiber Optic Cable

Cable model : GJYXHS

Cable diameter(mm) : 7.３±0.3,7.４±0.3

Weight (kg/km) : 60

Fiber type : G 652D,G 657A1,G 657A2,50/125,62.5/125,OM3,OM4

Attenuation : 1310/1550nm,850/1300nm

Quantity :

add to cart

Contact Now

GJYXHS G652D G657A1 G657A2 50/125 62 5/125 OM3 OM4 Duct Drop Fiber Optic Cable

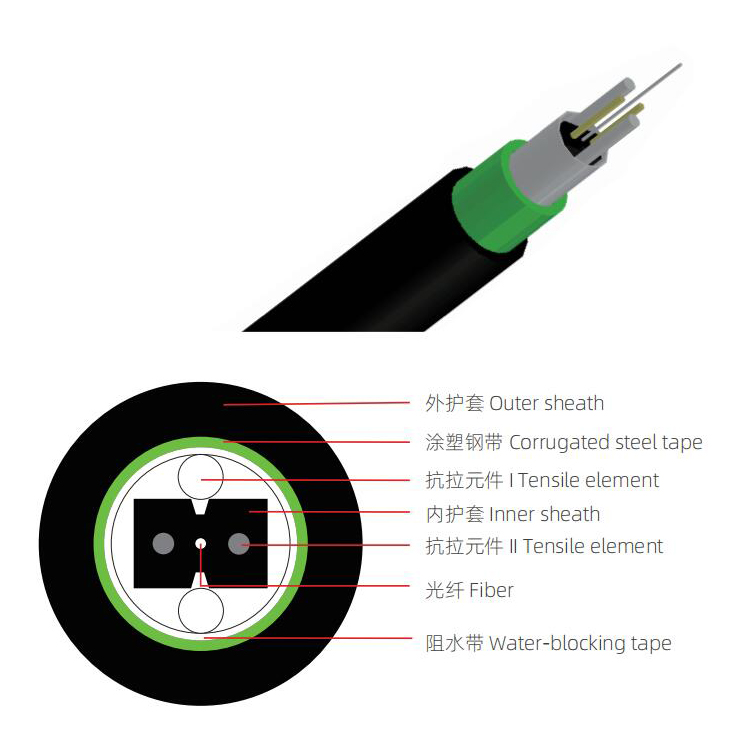

GJYXHS duct drop cable for duct is placed in the center of the optical communication unit, and two parallel non-metallic
reinforcing elements (FRP) are placed on both sides to extrude a black low-smoke halogen-free sheath.The corrugated
steel tape with a moisture barrier and the PE sheath is finally extruded.

Features for om4 multimode fiber
①Special bend resistant optical fiber provides greater bandwidth and enhances network transmission characteristics.
②Two parallel strength memebr make the optical cable have good compressive performance and protect the optical fiber.
③The optical cable has the advantages of simple structure, light weight and strong practicability.
④Unique groove design, easy to peel, easy to connect, simplify installation and maintenance.
⑤Low smoke halogen-free flame retardant sheath, environmental protection.
⑥PE outer sheath has good UV resistance.
⑦Corrugated steel tape longitudinally covers cable core and provides good crush resistance.

GJYXHS Product application
①optical fiber cable introduced from outdoor to indoor in access network or user resident network.
②Building lead-in optical fiber cable in generic cabling, especially the wiring when indoor or outdoor overhead lead-in.

GJYXHS Optical Characteristics

GJYXHS Fiber type	Attenuation				Full injection bandwidth	Eﬀective bandwidth	10G Ethernet link length	imum bending radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Condition	Typical value	Max	Typical value	Max	850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G 652D	0.36/0.22	0.5/0.4	-	-	-	-	-	16
G 657A1	0.36/0.22	0.5/0.4	-	-	-	-	-	10
G 657A2	0.36/0.22	0.5/0.4	-	-	-	-	-	7.5
50/125	-	-	3.0/1.0	3.5/1.5	≥500/500	-	-	30
62.5/125	-	-	3.0/1.0	3.5/1.5	≥200/500	-		30
OM3	-	-	3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4	-	-	3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30

GJYXHS Structural Parameters

Cable model

Cable diameter

(mm)

Weight (kg/km)

Allowable tensile force

Long / Short（N）

Allow squash Force

Long / Short（N）

Bending radius

Static / dynamic

（mm）

GJYXHS - 1

7.３±0.3

60

300/600

1000/2000

10D/20D

GJYXHS - 2

7.４±0.3

60

300/600

1000/2000

10D/20D

Environmental Characteristics
Operating temperature / -20~+60℃
Storage temperature / -20~+60℃

Standards
Comply YD / T 1997.1、ICEA-596、GR-409、IEC 60794 etc.
