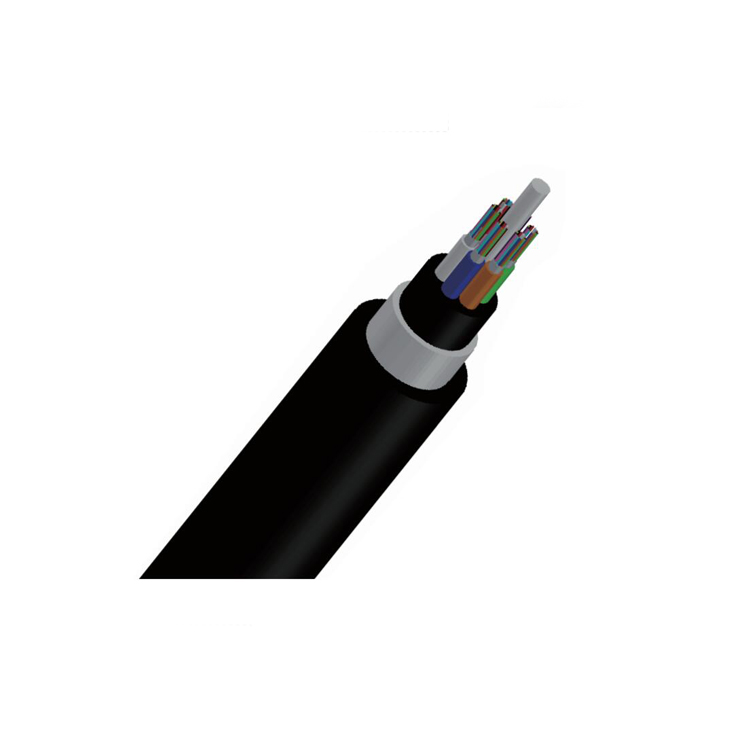

GYFTY63 Optical Fiber Cable Loose Tube Laye Staranded Non-Metallic Heavy Type Rodent Protected
Fiber Count : 2 - 144
Tensile strength Long / Short term (N) : 600/2000 ~ 600 / 2500
Crush resistance / Long/Short term (N/100mm) : 300 / 1000
Bending radius / Static/Dynamic (mm) : 12.5D/25D

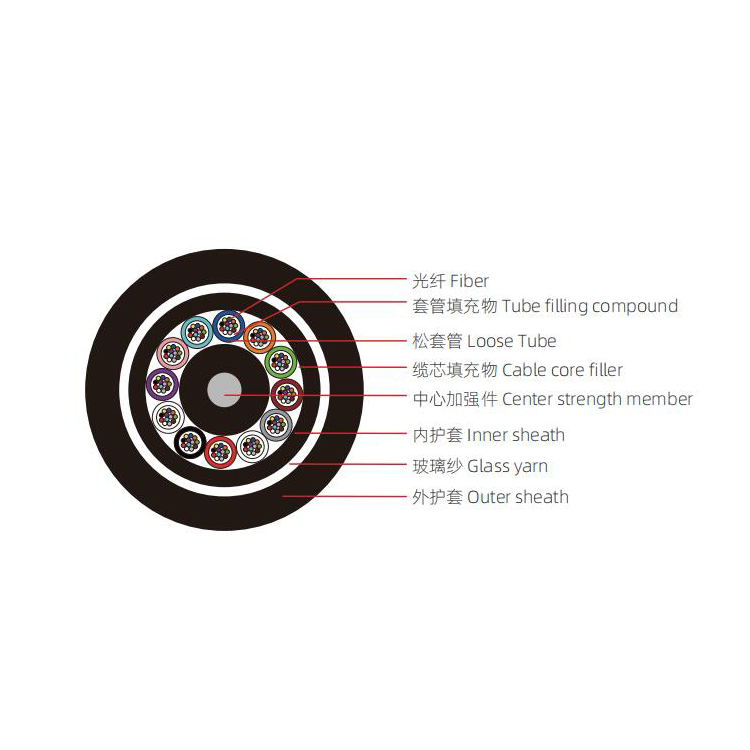

material, and the loose tube is filled with waterproof compound. The center of the cable core is a metallic Fiber
Reinforced Plastic (FRP)，for some cores fiber cable, a layer of polyethylene (PE) needs to be extruded outside
the metallic central strength member. The tubes (and filling rope) is stranded around the central reinforcing
core to form a compact and circular cable core. The gaps in the cable core are filled with water-blocking fillers,
and a layer of polyethylene (PE) inner sheath is extruded. After the glass yarns covered over the inner sheath,
the cable is completed with a PE outer sheath.
①Excellent mechanical property and temperature performance.
②Loose tube material has good hydrolysis resistance and higher intensity.
③Non-metallic central strength member FRP withstand axial loads.
④Inner sheath effectively lower the external mechanical loading.
⑤Glass yarn effectively prevents rodents from damaging optical fiber cable.
⑥PE sheath protects cable from ultraviolet radiation.
⑦Fully cable core filled.
Optical Characteristics
Item | G.652 | G.655 | 50/125um | 62.5/125um | |
Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.2dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
@1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||
Structural Parameters
Cable Type | Fiber Count | Tubes | Fillers | Diameter (mm) | Weight (kg/km) | Tensile strength Long/Short term (N) | Crush resistance Long/Short term (N/100mm) | Bending radius Static/Dynamic (mm) |
GYFTY63-2~6 | 2~6 | 1 | 5 | 13.5 | 200 | 600/2000 | 300/1000 | 12.5D/25D |
GYFTY63-8~12 | 8~12 | 2 | 4 | 13.5 | 200 | 600/2000 | 300/1000 | 12.5D/25D |
GYFTY63-20~24 | 20~24 | 4 | 2 | 13.5 | 200 | 600/2000 | 300/1000 | 12.5D/25D |
GYFTY63-32~36 | 32~36 | 6 | 0 | 13.5 | 200 | 600/2000 | 300/1000 | 12.5D/25D |
GYFTY63-38~48 | 38~48 | 4 | 2 | 14.1 | 215 | 600/2500 | 300/1000 | 12.5D/25D |
GYFTY63-50~60 | 50~60 | 5 | 1 | 14.1 | 215 | 600/2500 | 300/1000 | 12.5D/25D |
GYFTY63-62~72 | 62~72 | 6 | 0 | 14.1 | 215 | 600/2500 | 300/1000 | 12.5D/25D |
GYFTY63-86~96 | 86~96 | 8 | 0 | 15.5 | 255 | 600/2500 | 300/1000 | 12.5D/25D |
GYFTY63-134~144 | 134~144 | 12 | 0 | 18.4 | 345 | 600/2500 | 300/1000 | 12.5D/25D |
Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
Standards
Comply with standard YD / T 901, IEC 60794-1 and other standards.
