ISO9001 ISO14001 GYFY Fiber Optic Cable Anti Ultraviolet Radiation
Fiber Model : SM / MM
Fier Count : 2 ~288
Certification : ISO9001/ISO14001/Rohs
Apllication : Outdoor
Package : Wood Drum Or Customer Request
Cable OD (MM) : 11 ~ 18
Transport/storage Temperature : -40℃ To +70℃
Cable Weight : 100 ~ 255KG/KM
High Light : GYFY Fiber Optic Cable, ISO14001 Fiber Optic Cable, ISO14001 outdoor fiber patch cable
ISO9001 ISO14001 GYFY Fiber Optic Cable Anti Ultraviolet Radiation
1. GYFY Fiber Optic Cable Descreption:
The GYFY Fiber Optic Cable loose tubes are made of high modulus plastics (PBT) and filled with a water resistant
filling gel. Loose tubes are stranded around non-metallic central strength member (FRP). The cable core wrapped
with a water blocking tape, and then aramid yarns or glass yarns are applied over the cable core. Polyethylene (PE)
is extruded as inner sheath.

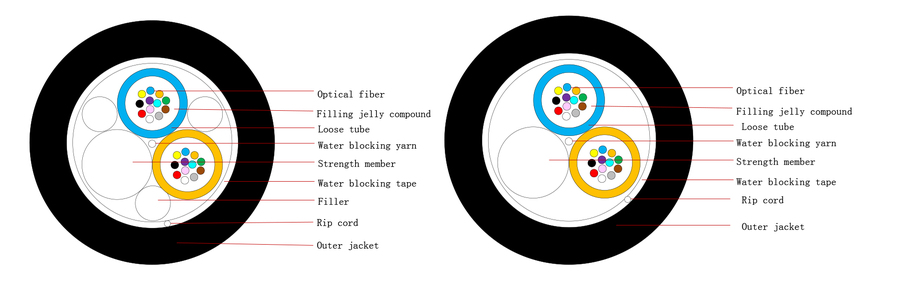

2. Structure:
♦ Central strength member: metal materials available
♦ Loose tube: PP or other materials available
♦ Water blocking materials for loose tube: water blocking yarn available
♦ Water blocking materials for cable core: cable filling compound available
3. Features:
♦ All section water blocking
♦ Anti-ultraviolet radiation
♦ Excellent transmission, mechanical and environmental performance
♦ All dielectric, anti-lightning, anti-electromagnetic interference
♦ Easy installation, easy maintenance
♦ Lifespan over 30 years
4. Application.
♦ Aerial installation
♦ Duct installation
♦ Backbone network and metro network
5. Installation
♦ Min. bend radius: installation 25D, operation 12.5D
♦ Temperature range: storage -40～+70℃, installation -30～+70℃, operation -40～+70℃
6. performance
♦ GYFY Applicable to direct burial/aerial installation
♦ For flame retardant cable, outer sheath can be made of low-smoke halogen-free (LSZH) material and the type is
GYFY, for anti-termite cable, additional nylon resin is extruded over outer sheath and type is GYFY04
♦ Special cable structure can be designed and manufactured on customer's request
7. specification
| GYFY Fiber Count | Structure | Diameter | Weight (kg/km) | Tensile(N) | Crush(N) | Bending Radius(mm) | |||
| (mm) | Long Short term term | Long Short term term | Static Dynamic | ||||||
| 2-30 | 1+6 | 10. 7 | 90 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 32-36 | 1+6 | 10. 7 | 91 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 38-60 | 1+6 | 11. 4 | 101 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 62-72 | 1+6 | 11. 4 | 102 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 74-84 | 1+7 | 12.1 | 119 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 86-96 | 1+8 | 12.9 | 130 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 98-108 | 1+9 | 13.6 | 146 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 110-120 | 1+10 | 14.3 | 159 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 122-132 | 1+11 | 15. 0 | 178 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| 134-144 | 1+12 | 15. 7 | 193 | 1000 | 3000 | 300 | 1000 | 10D | 20D |
| GYFY Note 1. D refers to the GYFY cable diameter; 2. The relevant technical Parameters canbe adjusted according to the customer’s demands; 3. The block water way can be adjustedaccording to the customer’s demands; 4. The design flame resistance,anti-rodent, termite resistant cable according to the customer’s demands. | |||||||||
GYFY Fiber Optic Cable Anti Ultraviolet Radiation:
