GYHTY Loose Tube Laye Staranded Non-Metallic Strength Member Optical Fiber Cable
Jacket : PVC LSZH LSOH PE HDPE
Fiber count : 2-288 Cores
Application : Aerial
Length : Custom Length
Packing : 2km/drum

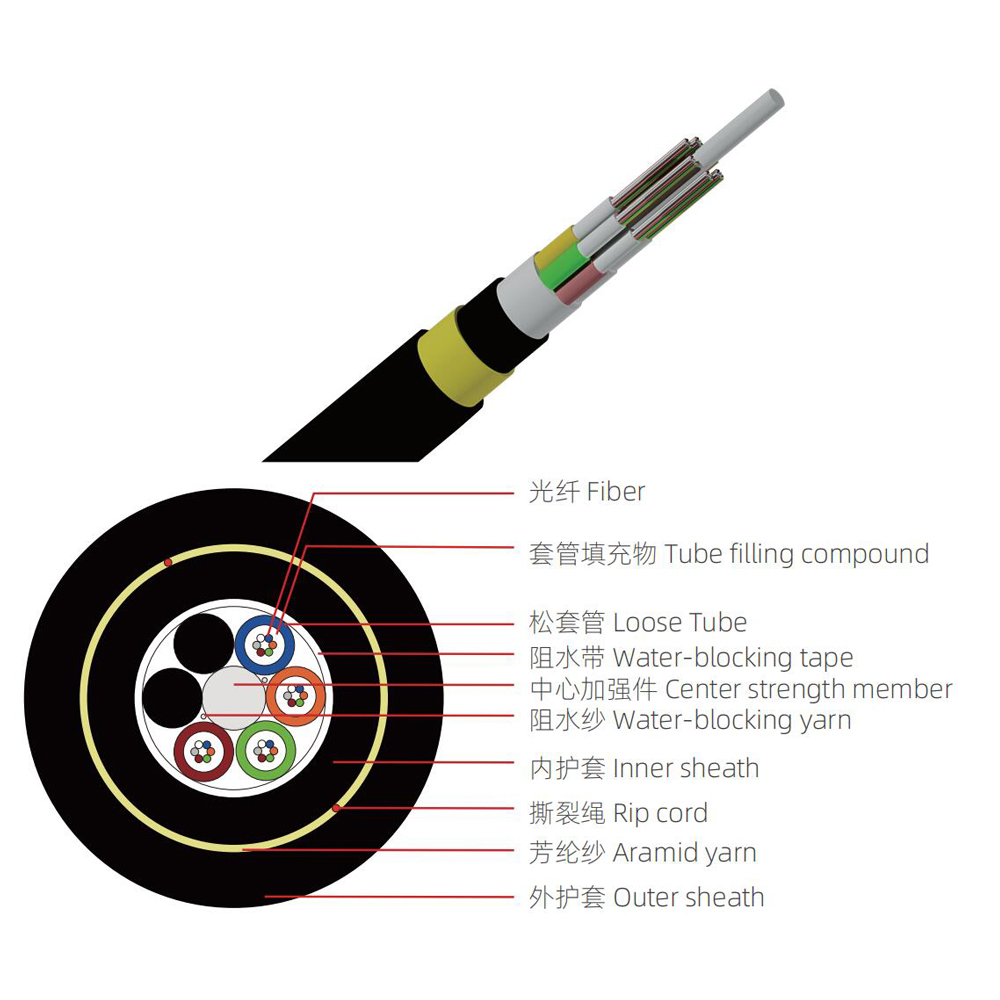

and the loose tube is filled with waterproof compound. The center of the cable core is a metallic Fiber Reinforced
Plastic (FRP)，for some cores fiber cable, a layer of polyethylene (PE) needs to be extruded outside the metallic central
strength member. The tubes (and filling rope) is stranded around the central reinforcing core to form a compact and
circular cable core. After the cable core is filled with the filling compound to protect it from water ingress, it is covered
with thin PE(polyethylene) inner sheath. Then a layer of aramid yarn is applied as additional strength member and the
cable is completed with a polyethylene(PE) outer sheath.
Loose Tube Optical Cable Features
① Excellent mechanical property and temperature performance.
② Aramid yarn strength member ensure good performance of tensile strength.
③ Good crush resistance and flexibility.
④ Loose tube material has good hydrolysis resistance and higher intensity.
⑤ Single FRP as the central strength member to withstand axial loads.
⑥ PE sheath protects cable from ultraviolet radiation.
⑦ Fully cable core filled.
Optical Fiber Loose Tube Cable Optical Characteristics
Item | G.652 | G.655 | 50/125um | 62.5/125um | |
Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.2dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
@1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||
Structural Parameters
Cable Type | Fiber Count | Tubes | Fillers | Diameter (mm) | Weight (kg/km) | Tensile strength Long/Short term (N) | Crush resistance Long/Short term (N/100mm) | Bending radius Static/Dynamic (mm) |
GYHTY-2~6 | 2~6 | 1 | 5 | 10.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-8~12 | 8~12 | 2 | 4 | 10.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-14~18 | 14~18 | 3 | 3 | 10.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-20~24 | 20~24 | 4 | 2 | 10.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-26~30 | 26~30 | 5 | 1 | 10.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYHTY-32~36 | 32~36 | 6 | 0 | 10.7 | 90 | 600/1500 | 300/1000 | 10D/20D |
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
Comply with standard YD / T 901,
IEC 60794-1 and other standards.
