GYTS Outdoor Fiber Optic Cable Anti Electromagnetic Field Interference

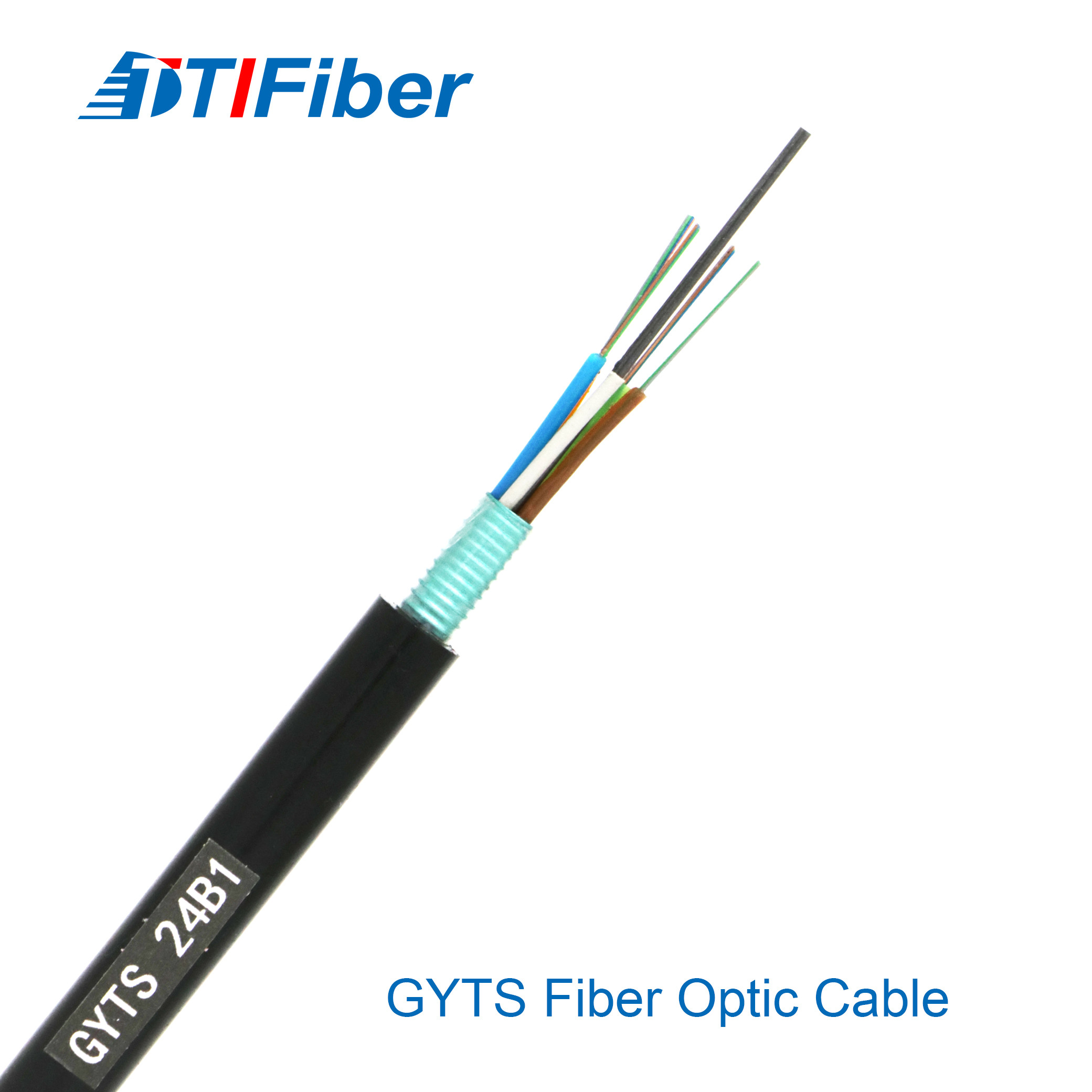

1. Product Description of GYTS outdor fiber optic cable with steel tap.

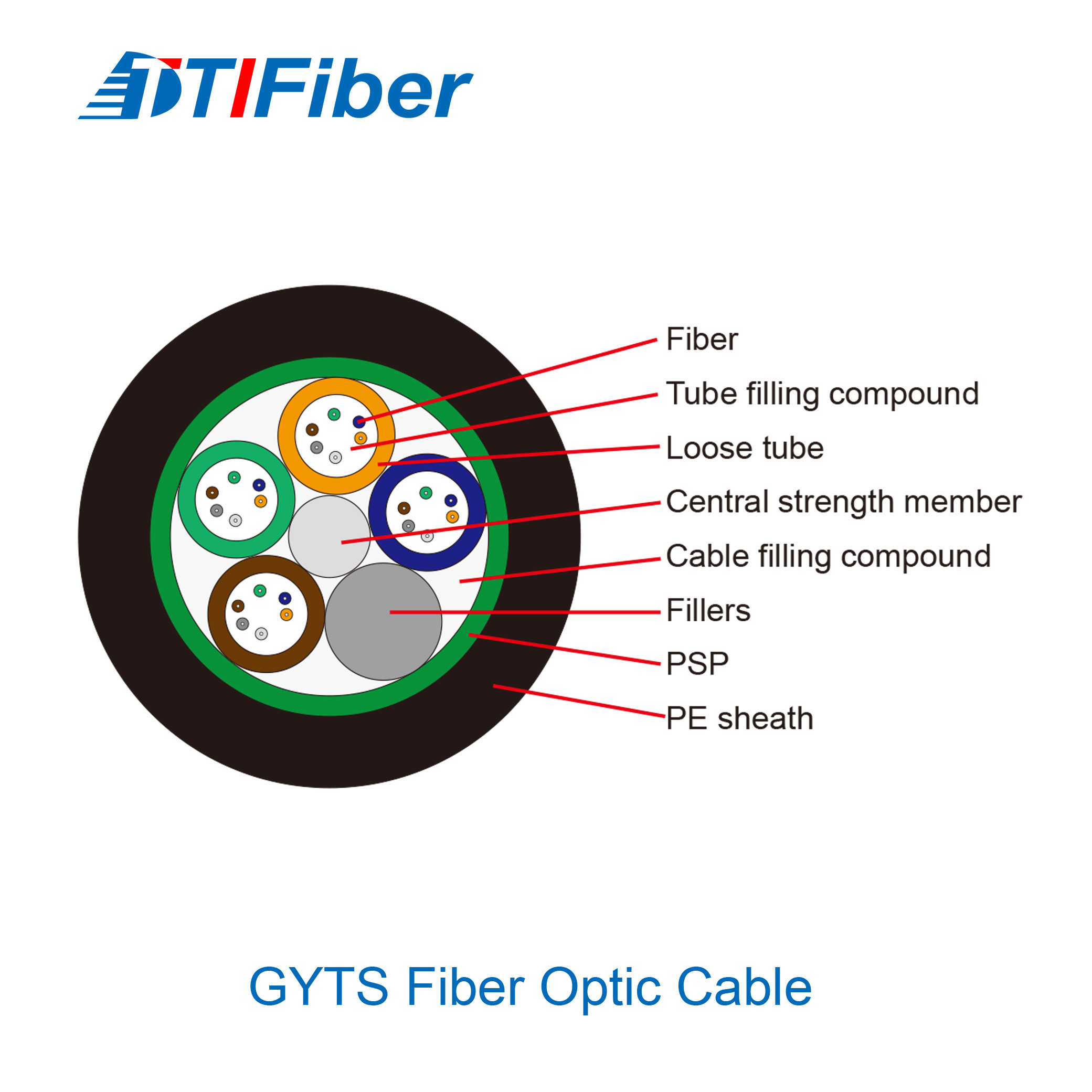

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high
fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around
the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable
core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a
PE sheath.


2. Gyts Fiber Optic Cable Feature

♦ Excellent mechanical and temperature performance

♦ Special tube filling compound ensure a critical protection of fiber and resist the water.

♦ Single steel wire as the central strength member to withstand axial loads.

♦ PE sheath protects cable from ultraviolet radiation.

♦ 100% core filling water prevent cable jelly to ensure the cable watertight.

♦ Corrugated steel tape longitudinal cover cable core and provide good crush resistance.


3. Gyts Cable Optical Characteristics

Item		G.652		G.655		50/125um			62.5/125um
Attenuation	@850nm					≤3.0dB/km			≤3.2dB/km
	@1300nm					≤1.0dB/km			≤1.2dB/km
	@1310nm	≤0.36dB/km		≤0.40dB/km
	@1550nm	≤0.22dB/km		≤0.23dB/km
Bandwidth (Class A)	@850nm					≥500MHZ.km			≥200MHZ.km
	@1300nm					≥1000MHZ.km			≥600MHZ.km
Numerical aperture						0.200±0.015NA			0.275±0.015NA
Cable cut-off wavelength		≤1260mm		≤1450mm


4. Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diamete rmm	Cable Weight kg/km	Tensile strength Long/Short term (N)		Crush resistance Long/Short term (N/100mm)		Bending radius Static/Dynamic (mm)
GYTS-2~6	2~6	1	4	9.0	100	600/1500		300/1000		10D/20D
GYTS-8~12	8~12	2	3	9.0	100	600/1500		300/1000		10D/20D
GYTS-14~18	14~18	3	2	9.0	100	600/1500		300/1000		10D/20D
GYTS-20~24	20~24	4	1	9.0	100	600/1500		300/1000		10D/20D
GYTS-26~30	26~30	5	0	9.0	100	600/1500		300/1000		10D/20D
GYTS-32~36	32~36	6	0	9.0	100	1000/3000		300/1000		10D/20D
GYTS-38~48	38~48	4	1	9.0	100	1000/3000		300/1000		10D/20D
GYTS-50~60	50~60	5	0	9.0	100	1000/3000		300/1000		10D/20D
GYTS-62~72	62~72	6	0	9.0	100	1000/3000		300/1000		10D/20D
GYTS-86~96	86~96	8	0	13.5	192	1000/3000		300/1000		10D/20D
GYTS-134~144	134~144	12	0	16.9	227	1000/3000		300/1000		10D/20D
GYTS-204~216	204~216	18	0	16.9	240	1000/3000		300/1000		10D/20D
