Model No: GYTXW/GYTC8S/GJFJV/GJXH/GJXFH Fiber Optical Cable

GYTXW GYTC8S GJFJV GJXH GJXFH Fiber Optical Cable G652D G657A1 G657A2

Fiber Type : G652D G657A1 G657A2
Product Name : GYTXW/GYTC8S/GJFJV/GJXH/GJXFH Fiber Optical Cable
Color : Black
Material : PE/LSZH
Number Of Conductor : ≥ 10 Fiber Count 2-288 Core
Wavelength : 1310nm Or 1550nm
Use : FTTX
Length : Customizted
Quality Control : 100% Test Before Shipping
Operating Temperature : -40°C To + 70°C Package Wooden Drum
High Light : GJXFH Fiber Optical Cable, GYTC8S, GJFJV

minimum order :

1000 meters

Quantity :

add to cart

Contact Now

GYTXW GYTC8S GJFJV GJXH GJXFH Fiber Optical Cable G652D G657A1 G657A2

4 6 8 12 24 48 72 96 128 288 Core Fiber Optical Cable

Outdoor Fiber Specification:
Single mode or multimode fibres are position in a loose tube made of a high modulus plastic.The tube are filled
with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high
fiber count,locates in the center of core as a metallic strength member.Tubes (and fillers) are stranded around the
strength member into a compact and circular cable core.the cable core is filled with filling compound to protect it
from water ingress,over which a thin PE inner sheath is applied.After the PSPis longitudinally applied overthe inner
sheath, the cable is completed with a PE sheath.

Item	GYTXW GYTC8S GJFJV GJXH GJXFH Fiber Optical Cable Price Per Meter
Feature	1. Choice of fiber type 2. Color code of fiber 3. High water & crush resistance 4. Choice of sheath material 5. Low attenuation and dispersion 6. Good flexibility and bending performance
Application	Suitable for external application in duct and aerial
Structure Characters	1. Metallic strengthen member (Phosphated steel wire) 2. Steel taoe under PE sheath
Temperature	1. Operating temperature: -20℃ to 70℃ 2. Storage temperature: -20℃ to 70℃

Outdoor Optical Cable Feature:
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Crush resistance and flexibility.
5. PSP enhancing moisture-proof
6. Tow parallel steel wires ensure tensile strength
7. Small diameter, light weight and easily installation

Fiber Type /Fiber Optical Cable		G.652	G655	50/125μm	62.5/125μm
Attenuation(+20℃)	@850nm			≤3.0 db/km	≤3.3 db/km
	@1300nm			≤1.0 db/km	≤1.0 db/km
	@1310nm	≤0.36 db/km	≤0.40 db/km
	@1550nm	≤0.22 db/km	≤0.23 db/km
Bandwidth	@850nm			≥500MHz.km	≥200MHz.km
Bandwidth	@1300nm			≥500MHz.km	≥500MHz.km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260 nm	≤1450 nm

Application:
1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aeri

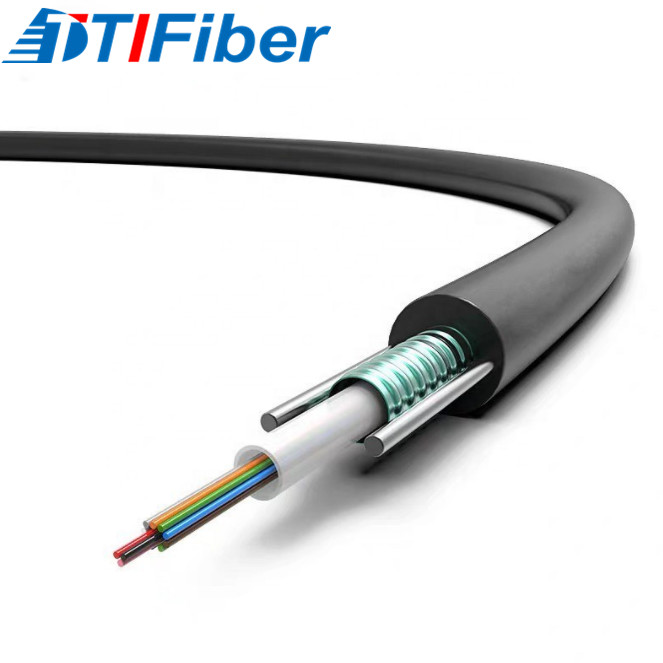

Fiber Optical Cable Product Picture:

GYTXW GYTC8S GJFJV GJXH GJXFH
