Model No: GYXTC8 S
GYXTC8 S Self-Supporting Central Loose Tube Figure-8 Fiber Optic Cable
Product Name : GYXTC8 S Fiber Optical Cable
Application : Aerial
Material : PE
Fiber type : G652D
Fiber Count : 2-144 Cores
Wavelength : 1310nm or 1550nm
Strength member : Central Steel Wire
Use : FTTX
Application : Aerial
Material : PE
Fiber type : G652D
Fiber Count : 2-144 Cores
Wavelength : 1310nm or 1550nm
Strength member : Central Steel Wire
Use : FTTX
minimum order :
1000 meters
Quantity :
GYXTC8 S Optical Fiber Cable Self-Supporting Central Loose Tube Figure-8

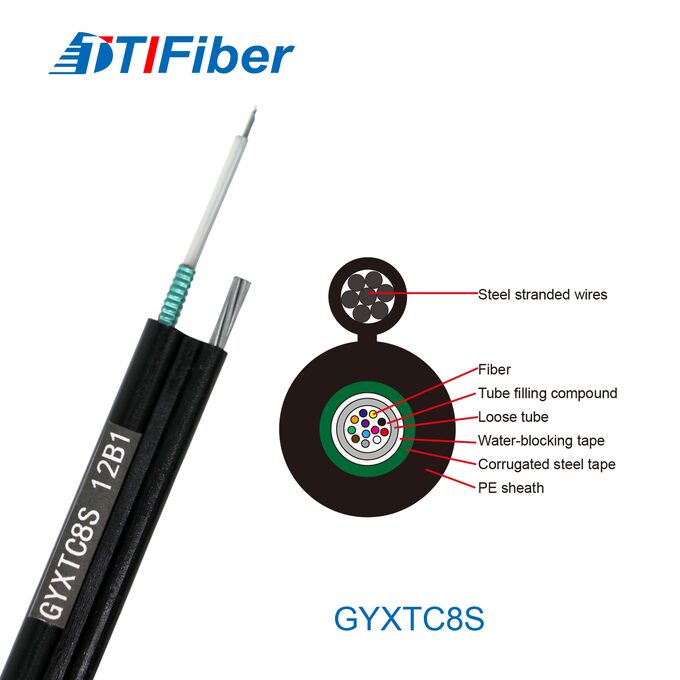

The structure of GYXTC8 S optical fiber cable 250μm fiber is positioned in a loose tube made of high modulus
The structure of GYXTC8 S optical fiber cable 250μm fiber is positioned in a loose tube made of high modulus
material, and the loose tube is filled with waterproof compound. The Corrugated steel tape are longitudinally
applied over the outer loose tube. Corrugated steel tape and loose tubes filled with water proof compound to
ensure compact and longitudinally water blocking, this part of cable accompanied with the stranded wires as
the supporting part are completed a polyethylene(PE) sheath to be figure o structure.
ensure compact and longitudinally water blocking, this part of cable accompanied with the stranded wires as
the supporting part are completed a polyethylene(PE) sheath to be figure o structure.
Loose Tube Fiber Optic Cable Features
①Excellent mechanical property and temperature performance.
②Loose tube material has good hydrolysis resistance and higher intensity.
③PE sheath protects cable from ultraviolet radiation.
④Fully cable core filled.
⑤Corrugated steel tape longitudinally covers cable core and provides good crush resistance.
⑥High tensile strength of stranded wires meets the requirement of self-supporting aerial laying and reduce
installation cost.
①Excellent mechanical property and temperature performance.
②Loose tube material has good hydrolysis resistance and higher intensity.
③PE sheath protects cable from ultraviolet radiation.
④Fully cable core filled.
⑤Corrugated steel tape longitudinally covers cable core and provides good crush resistance.
⑥High tensile strength of stranded wires meets the requirement of self-supporting aerial laying and reduce
installation cost.
GYXTC8 S Optical Fiber Cable：
Optical Characteristics
GYXTC8 S Item | G.652 | G.655 | 50/125um | 62.5/125um | |
Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.2dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
@1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||
Structural Parameters
GYXTC8 S Cable Type | Fiber Count | Tubes | Fillers | Diameter (mm) | Weight ( kg/km) | Tensile strength Long/Short term (N) | Crush resistance Long/Short term (N/100mm) | Bending radius |
GYXTC8 S | 2-24 | 8.0*13.5 | 100 | 1.2mm | 125 | 2000/5000 | 1000/3000 | 80/160 |
Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
GYXTC8 S Optical Fiber Cable Standards
Comply with standard YD / T 901, IEC 60794-1 and other standards
