GYXY Fiber Optic Cable Outdoor 2 - 24 Core Central Loose Tube Non-Armored
Type : Single mode
Number of Conductors : ≥ 10
Structure : uni-tube non armored
Strength member : Steel Wire or FRP
Application : Aerial/Duct/Direct
Jacket Material : PE
Operating temperature : -40 to 70
Certification : CE / ROHS / ISO 9001
Use : FTTX

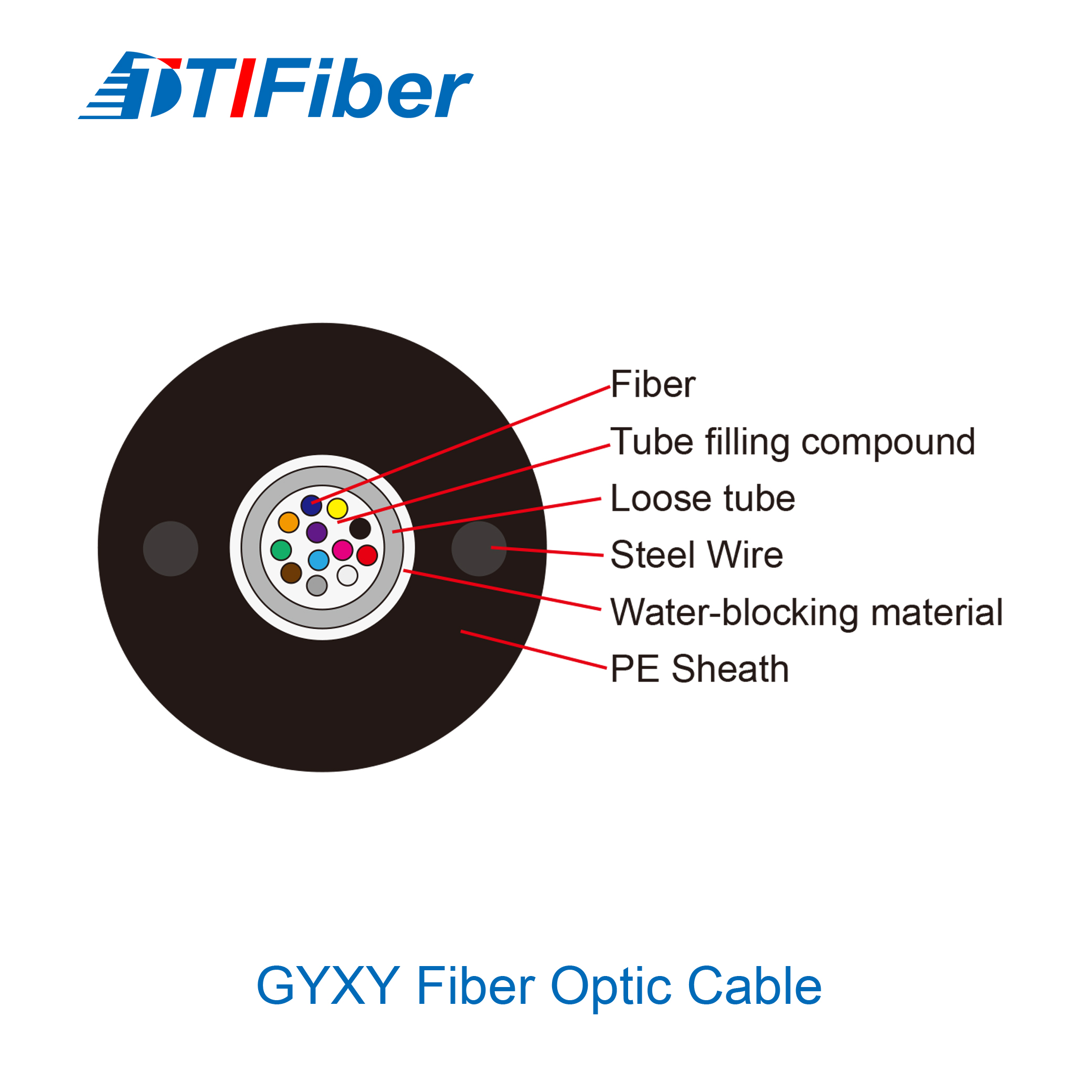

and the loose tube is filled with waterproof compound. Over the tube, water-blocking material is applied to keep
the cable watertight. Two parallel steel wires are placed at the two sides of the cable, which cable is completed with
a polyethylene (PE) sheath.
①Excellent mechanical property and temperature performance.
②Loose tube material has good hydrolysis resistance and higher intensity.
③Two parallel steel wires ensure tensile strength.
④PE sheath protects cable from ultraviolet radiation.
⑤Small diameter, light weight and easy installation.
Outdoor GYXY Fiber Optic Cable Optical Characteristics
Item | G.652 | G.655 | 50/125um | 62.5/125um | |
Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||
@1300nm | ≤1.0dB/km | ≤1.2dB/km | |||
@1310nm | ≤0.36dB/km | ≤0.40dB/km | |||
@1550nm | ≤0.22dB/km | ≤0.23dB/km | |||
Bandwidth | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||
@1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||
Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||
Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||
Loose Tube Fiber Optic Structural Parameters
Cable Type | Fiber Count | Diameter (mm) | Weight (kg/km) | Tensile strength Long/Short term (N) | Crush resistance Long/Short term (N/100mm) | Bending radius Static/Dynamic (mm) |
GYXY-2~24 | 2~12 | 8.0 | 55 | 600/1500 | 300/1000 | 10D/20D |
Environmental Characteristics
Operating temperature / -40~+70℃
Storage temperature / -40~+70℃
Standards
Comply with standard YD / T 769, IEC 60794-1 and other standards.
