Model No: GYFTY Fiber Optic
High Strength Fiber Optic Wire OM3 / OM4 With Black MDPE / HDPE Outer Jacket
Cable Type : Outdoor
Fiber Type : SM/MM
Cable Core : 2-24 Cable
Jacket : LSZH/MDPE/HDPE
Structure : Uni-Tube Jacket Black
High Light : armored fiber optic cable, armored fiber cable, MDPE Jacket Fiber Optic Wire
Fiber Type : SM/MM
Cable Core : 2-24 Cable
Jacket : LSZH/MDPE/HDPE
Structure : Uni-Tube Jacket Black
High Light : armored fiber optic cable, armored fiber cable, MDPE Jacket Fiber Optic Wire
minimum order :
1000 meters
Quantity :
GYFTY om3 om4 fiber optic cable with Black MDPE / HDPE Outer Jacket
om3 om4 fiber optic cable Description:
Loose Tube Single Jacket All Dielectric cables are lightweight with small diameter and designed for duct and
aerial(lashed) installation.
Application of om3 fiber optic cable:
Laying modes: Aerial & Conduit/Duct.
Rural communication
Local trunk line
CATV
Computer networks system
Specification:
om3 om4 fiber optic cable Description:
Loose Tube Single Jacket All Dielectric cables are lightweight with small diameter and designed for duct and
aerial(lashed) installation.
om3 om4 fiber optic cable Features:
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Excellent crush resistance and flexibility
The following measures are taken to ensure the cable water -proof performance
Single Fiber Reinforced Plastic as the central strength member
Loose tube is filled with special filling compound
100% cable core filling
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Excellent crush resistance and flexibility
The following measures are taken to ensure the cable water -proof performance
Single Fiber Reinforced Plastic as the central strength member
Loose tube is filled with special filling compound
100% cable core filling
Application of om3 fiber optic cable:
Laying modes: Aerial & Conduit/Duct.
Rural communication
Local trunk line
CATV
Computer networks system
Specification:
| Fiber Type om3 om4 fiber optic cable | G.652 | G.655 | 50/125^m | 62.5/125^m | |
Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||

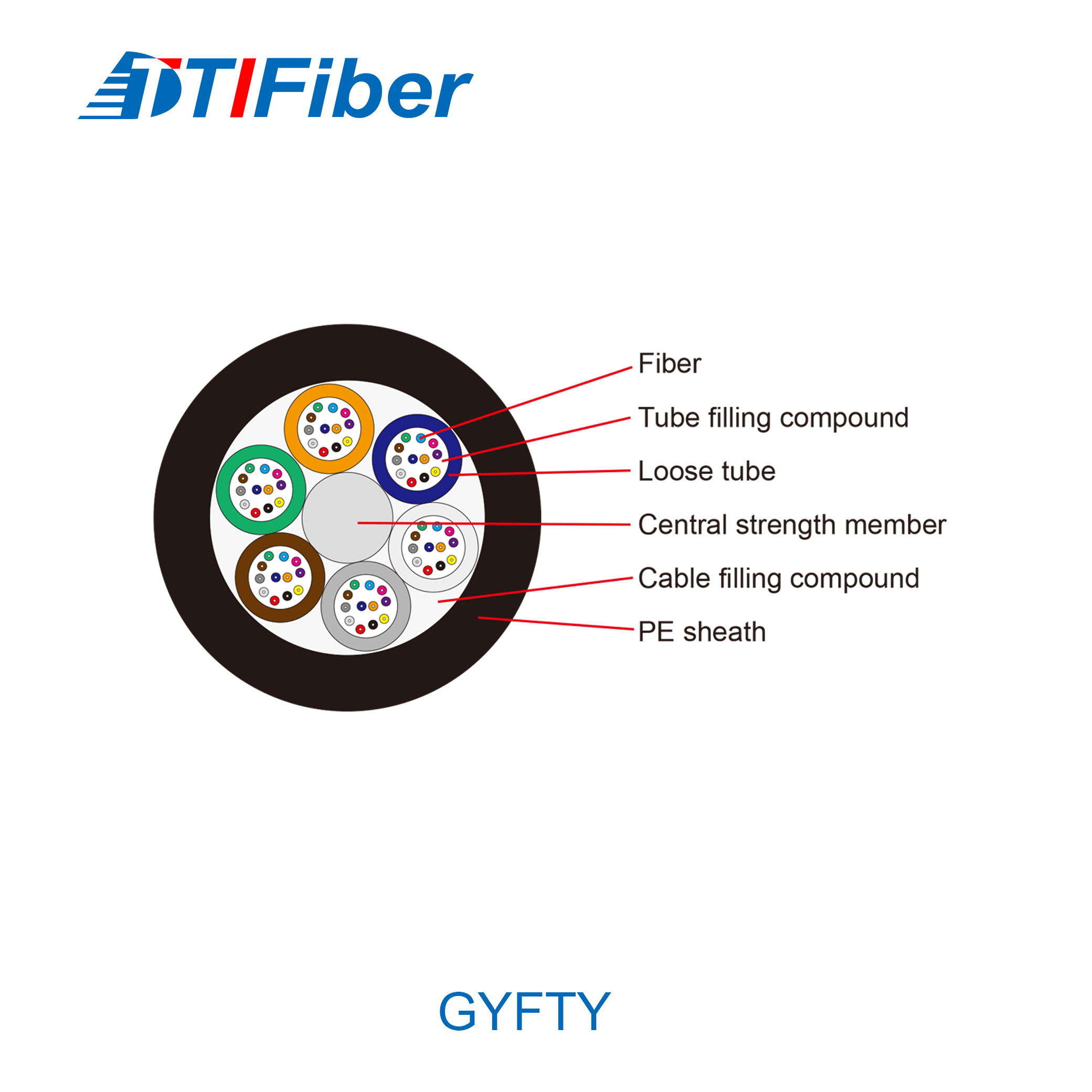

Structure and Technical Specifications:
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 8.6 | 95 | 1500 | 600 | 1000 | 300 |
| 14~24 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
Note :om3 om4 fiber optic cable
This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information.
om3 om4 fiber optic cable Product Picture:
