How Do Multimode Fiber Pigtails Work in Fiber Optic Networks?

author: TTI Fiber

2025-04-07

Multimode Fiber Pigtails Features, Benefits, and How to Choose the Right One

When it comes to building reliable fiber optic networks, choosing the right components is crucial, and multimode fiber pigtails are one of those essential parts. Whether you’re working in telecommunications, data centers, or enterprise networking, understanding what multimode fiber pigtails are, how they work, and how to select the best one can make all the difference in network performance.

In this guide, we’ll walk you through everything you need to know about multimode fiber pigtails, from their technical features to their practical uses and where to find the best suppliers. Let’s dive in!

What Exactly is a Multimode Fiber Pigtail?

A multimode fiber pigtail is a short, single-fiber cable with a connector on one end that’s used to connect multimode fiber optic cables to other equipment. Essentially, they’re the bridge between the fiber optic network and your devices, helping you maintain clear, efficient data transmission.

These pigtails are crucial in networking environments where large amounts of data need to be transferred over short to medium distances—such as in enterprise networks, data centers, and telecommunications systems.

How Do Multimode Fiber Pigtails Work in Fiber Optic Networks?

In the world of fiber optics, pigtails are often used to simplify installations and maintain high-quality signal transmission. They’re connected to a fiber optic patch panel or directly to other network devices. The pigtail acts as an intermediary between your fiber cable and the active components of your network.

The connector type at the end of a multimode fiber pigtail (like SC, LC, or ST) matches the ports on your networking hardware, ensuring you can plug the fiber in without issues. When installed correctly, they help prevent signal loss and reduce the chance of network errors.

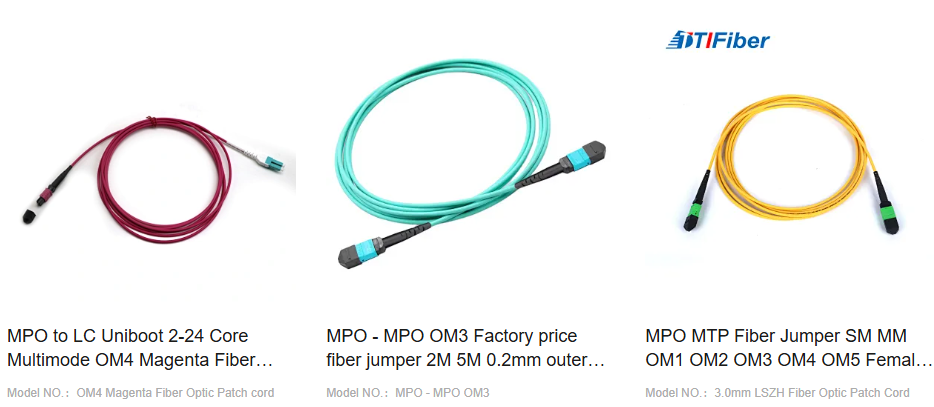

What’s the Difference Between OM1, OM2, OM3, OM4, and OM5 Multimode Fiber Pigtails?

Not all fiber pigtails are the same—there are several multimode fiber types, each with its specific performance capabilities. Here's a quick breakdown of the common multimode fiber pigtails:

- OM1: The oldest type, with a 62.5-micron core, best suited for low-bandwidth applications.
- OM2: Slightly more advanced, with a 50-micron core, offering better bandwidth than OM1.
- OM3: A high-performance multimode fiber designed for higher bandwidth and longer distances (up to 300 meters at 10Gbps).
- OM4: Similar to OM3 but supports even higher speeds and longer distances (up to 550 meters at 10Gbps).
- OM5: The latest in multimode technology, designed to handle high-speed data transfers over even longer distances, often used for 100Gbps or higher.

Choosing the right fiber type depends on your specific data transmission requirements. Each multimode fiber type has its pros and cons based on bandwidth, distance, and the application it’s used for.

Common Applications of Multimode Fiber Pigtails

These pigtails aren’t just used in one setting—they are essential across multiple industries:

1. Telecommunications - Multimode fiber pigtails are commonly used in telecom networks to ensure high-speed data transfer over medium distances.
2. Data Centers - In high-performance data centers, fiber pigtails play a key role in linking servers, switches, and other equipment together, ensuring fast and reliable communication.
3. Enterprise Networks - Businesses rely on multimode fiber pigtails for robust internal networks, connecting routers, switches, and other devices with minimal downtime.

Key Features to Look for When Choosing a Multimode Fiber Pigtail

When you’re choosing multimode fiber pigtails, there are a few key aspects to keep in mind:

1. Make sure to match the pigtail type (OM1, OM2, OM3, OM4, OM5) with your required bandwidth and distance.
2. Ensure compatibility with your existing networking hardware. Popular connectors include SC, LC, ST, and MTP.
3. Consider the environmental conditions where your fiber pigtails will be used. Look for pigtails with high-quality jackets, such as LSZH (Low Smoke Zero Halogen) for safer installations.

Benefits of Using Multimode Fiber Pigtails in Your Network

1. Compared to single-mode fiber, multimode fiber and its pigtails are generally more affordable, making them a popular choice for networks that don’t need extremely long-distance transmission.
2. They provide fast data transfer rates over medium distances, making them perfect for high-speed connections in data centers and enterprise networks.
3. Pigtails make the installation process easier because you don’t have to splice fibers directly; the connectors are pre-installed for you.

How to Calculate the Required Fiber Pigtail Length

Calculating the correct length for your fiber pigtails is an important part of fiber optic installations, as it ensures minimal signal loss and a tidy setup. Too short a fiber pigtail may leave you scrambling to make connections, while a length that's too long can result in excess fiber that may cause clutter and potential signal degradation.

Here’s a step-by-step guide on how to calculate the required fiber pigtail length:

1. Measure the Distance Between Devices or Equipment

The first step in calculating the required fiber pigtail length is to measure the distance between the devices or equipment that you need to connect. This includes both the fiber optic patch panels and any networking hardware (e.g., switches, routers, servers).

- Tip: Use a tape measure or a laser distance meter for accuracy, ensuring that you measure the straight-line distance along the planned fiber path.

2. Account for Slack

When installing fiber optic cables, you’ll need to account for some slack to ensure flexibility and to prevent excessive tension on the cable. This is especially important for future adjustments or maintenance.

- Slack is typically added by considering an additional 10-20% length to your measured distance. For example, if the distance between your equipment is 10 meters, you would add 1-2 meters of slack, depending on your project needs.

3. Consider the Bend Radius

Fiber optic cables, including pigtails, have a minimum bend radius—the tightest curve that the cable can be bent without damaging it. This is typically specified by the manufacturer.

When calculating fiber length, consider how much fiber will be needed to account for bends in the path. Plan your installation to avoid sharp bends, which can cause signal loss or even damage the cable.

- Tip: Allow extra length for the bend radius when routing fiber around corners or obstacles.

4. Ensure Compatibility with Connectors

Each fiber pigtail has a connector that plugs into the device or fiber optic panel. The connector's length is also a factor to consider when determining the final length. Be sure to account for the length of the connectors in your measurement.

For example, if you're using LC, SC, or ST connectors, the length of the connector could add 1-2 centimeters to the overall required length of the fiber.

5. Double-Check for Future Expansion

If you're designing a network that may be expanded in the future, it's a good idea to leave a bit more slack to account for changes. Consider any upcoming hardware upgrades or network expansions that may require additional length.

6. Use Fiber Length Estimators or Tools

If you’re unsure about your calculations or need a quick estimate, many fiber optic suppliers provide fiber length calculators or guidelines that help you determine the ideal fiber length for your specific installation.

Example Calculation:

Let's say you need to install a multimode fiber pigtail between two network switches:

- Measured distance between the switches: 15 meters
- Add 15% slack for flexibility: 15m x 0.15 = 2.25 meters of slack
- Total required length: 15 meters + 2.25 meters = 17.25 meters

If you plan to route the fiber around a corner with a minimum bend radius, consider allowing an additional 1 meter for flexibility in the bend. The total length would be 18.25 meters.

Always Have Extra

When in doubt, it's better to have slightly more length than too little. You can always trim extra fiber if needed, but it’s far more difficult to make a pigtail longer after installation.

By following these steps, you can calculate the optimal fiber pigtail length for your installation, ensuring that your network is efficient, tidy, and well-prepared for future changes.

How to Maintain and Protect Your Multimode Fiber Pigtails

Proper maintenance can extend the life of your fiber pigtails and ensure high performance:
1. Fiber pigtails can accumulate dust or dirt, leading to signal loss. Regular cleaning with proper tools like lint-free wipes and isopropyl alcohol is key.
2.Make sure that the pigtails aren’t exposed to excessive stress, and check for any signs of wear or damage, especially at the connectors.
3. Store unused pigtails in a safe, dry, and dust-free environment to prevent them from being damaged.

Common Mistakes to Avoid When Installing Multimode Fiber Pigtails

Here are a few common pitfalls to avoid when working with fiber pigtails:
1. Always double-check that the pigtail connectors match the ports on your equipment.
2. Fiber cables are sensitive to sharp bends. Always follow the recommended bend radius to prevent damaging the fibers inside.
3. After installation, always test the fiber connection to ensure everything is working properly before finalizing your network setup.

Top Manufacturers and Suppliers of Multimode Fiber Pigtails

When it comes to buying high-quality multimode fiber pigtails, choosing the right supplier is crucial. Some of the leading brands in the industry include:

1. Corning: A global leader in fiber optics, offering a wide range of multimode fiber pigtails with various connector types and lengths.
2. Prysmian Group: Known for their durable and high-performance fiber optic solutions, including multimode pigtails.
3. CommScope: A trusted name in networking infrastructure, providing high-quality multimode pigtails for businesses worldwide.

Pricing of Multimode Fiber Pigtails: What Can You Expect?

The price of multimode fiber pigtails varies depending on the fiber type, length, and connector type. Generally, you can expect prices ranging from $1 to $10 per pigtail. For bulk purchases, most suppliers offer discounts, so it’s worth negotiating if you need a large number of pigtails for a project.

Choosing the Right Multimode Fiber Pigtail for Your Business

In the fast-paced world of business networking, choosing the right multimode fiber pigtail is essential for maintaining high-speed, reliable communications. Whether you’re upgrading your data center, setting up an enterprise network, or installing fiber in a telecom environment, the right pigtail will ensure that your system performs at its best.

If you’re unsure which type of pigtail to choose or need help with bulk orders, don’t hesitate to reach out to one of the trusted suppliers mentioned earlier. They can guide you to the right product based on your specific needs.

Get in Touch with Suppliers for Quotes and Custom Solutions

Now that you’ve learned about multimode fiber pigtails, the next step is to find the right supplier. Contact manufacturers for quotes, custom solutions, and bulk discounts that meet your network requirements.
