Model No: LC FC Fiber Optic Patch Cord

2.0 3.0mm LC FC Fiber Optic Patch Cord Simplex Singlemode PVC LSZH Network Fiber patchcord

Fiber type : G652D,G657A,G655

Application : FTTH FTTB FTTX Network

Connector type : APC/UPC

Material : PVC/LSZH

Wavelength : 1310nm or 1550nm

Fiber count : Simplex or Duplex

Polish : PC/UPC/APC

minimum order :

1000 meters

Quantity :

add to cart

Contact Now

2.0mm/3.0mm LC FC Fiber Optic Patch Cord Simplex Singlemode PVC LSZH Network Fiber patchcord
High Quality LC-FC Simplex SM 2.0mm Optic fiber Network Optical Jumper Patch Cord

Specification:

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic
cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application
areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides
various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well
as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ,
connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.
4. Environmentally Stable

Application:
1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

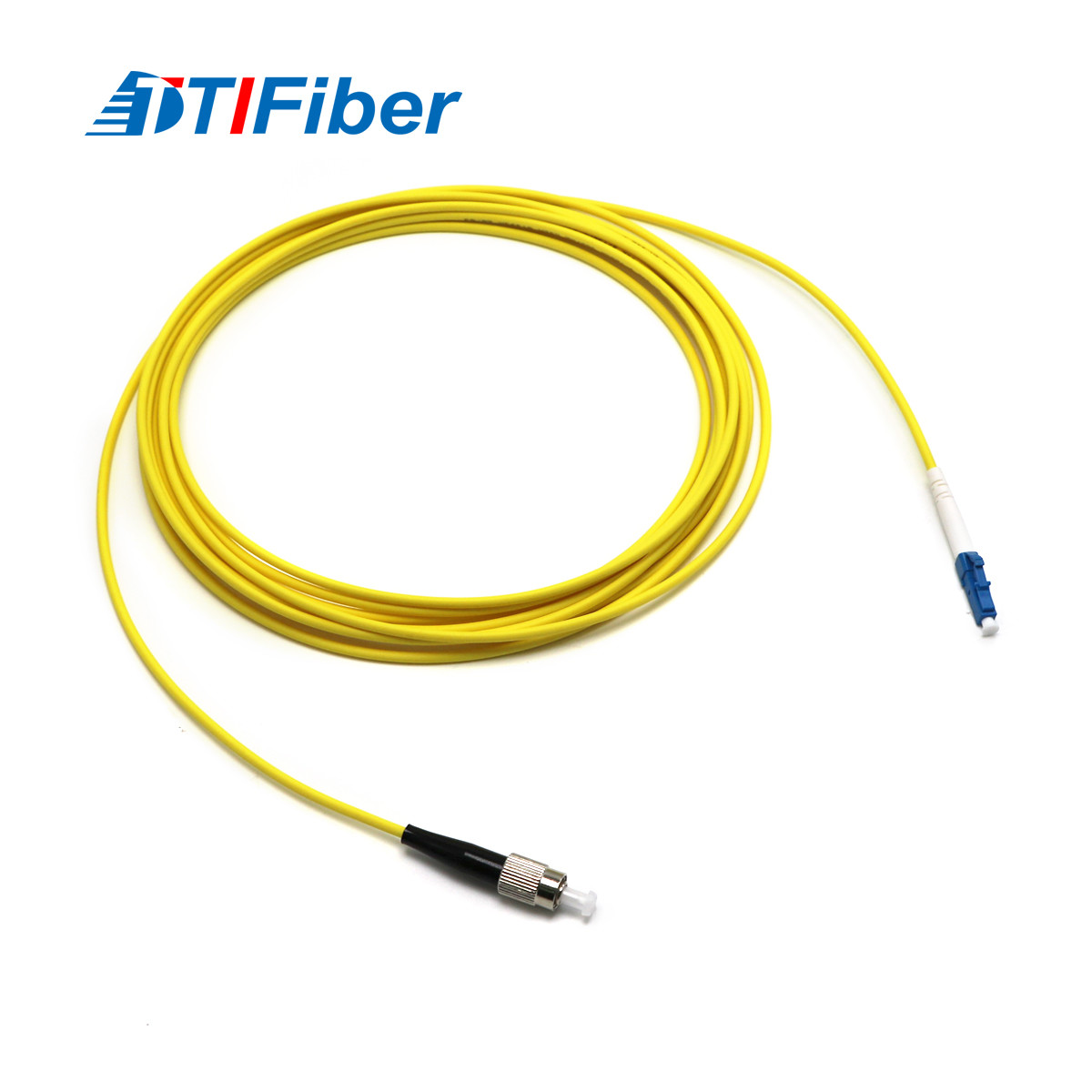

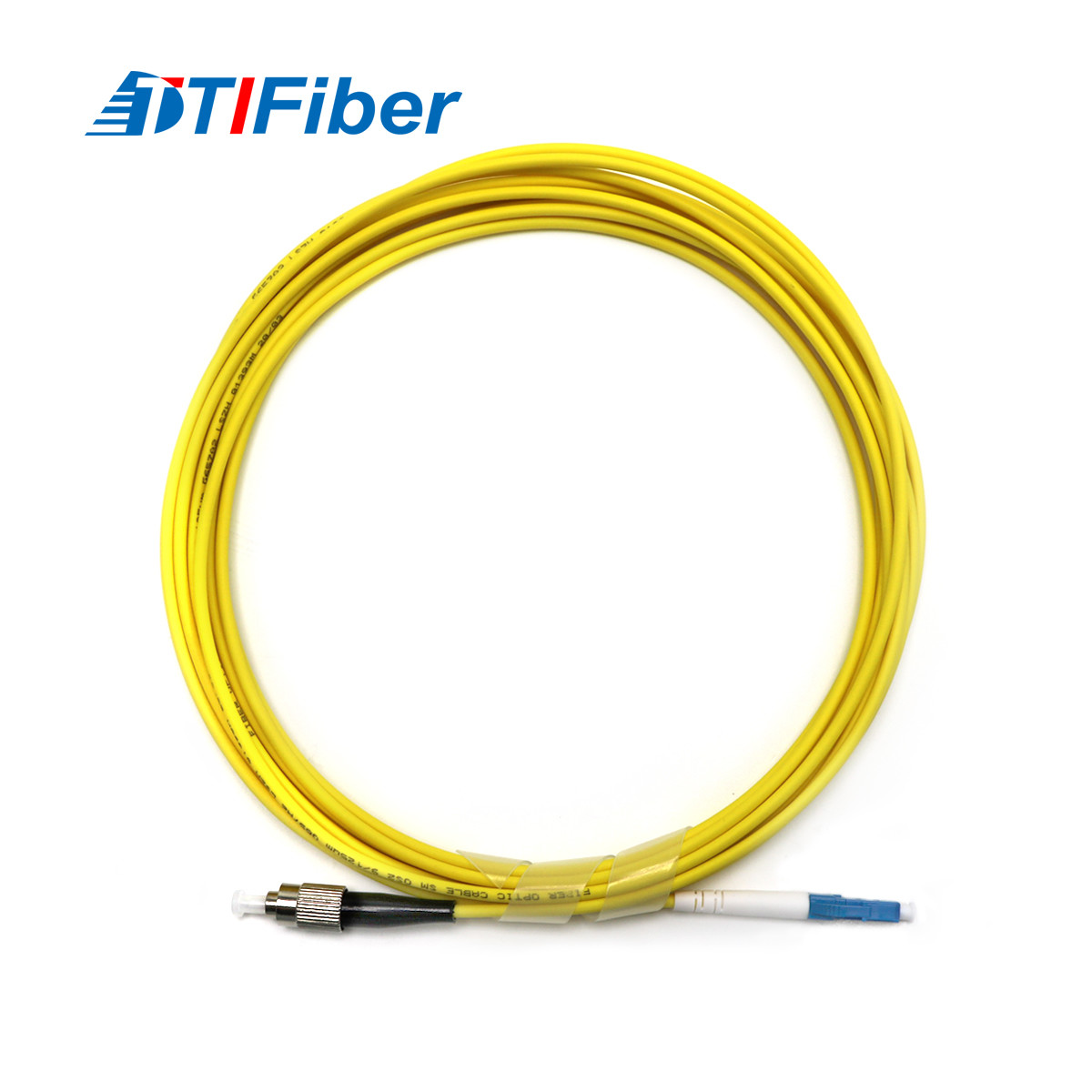

LC FC Fiber Optic Patch Cord Product Picture:
