FC Fiber Optic Patch Cord With G657A1 Fiber , LSZH Armored Fiber Patch Cable
Ferrule End-face : UPC
Fiber Type : G657A1 Singlemode
Cable Type : Simplex
Cable OD : 3.0mm
Cable Jacket : LSZH Outer Jacket
Cable Length : 1M,2M Or Customized
Cable Color : Blue Color Or Customized
High Light : fiber optic jumper, fiber optic cable patch cord
FC Fiber Optic Patch Cord with G657A1 Fiber , LSZH Armored Fiber Patch Cable
Fc Fiber Patch Cord Description:
Fiber patch cord is suited for equipment jumper cable, cross connects, and work area connections.All fiber optic
patch cords are manufactured with telecom class and polished A, and 100% factory tested to ensure performance
to TIA/EIA-568-B-3 standards.Fiber optic patch cable are available in both multimode (62.5/125µm and 50/125µm)
and singlemode cable types, in duplex and simplex versions.
Armored Fiber Optic Patch Cord Features:
Good exchangeability
Good Durability
High temperature stability
Low insertion loss and High back reflection loss
Compliant to IEC, TIA/EIA, NTT and JIS specifications
Armored Fiber Patch Cord Application:
Gigabit Ethernet
Video; Multimedia; CATV
Premise installations
Active device termination
Telecommunication networks
Local area networks
Specification:
Specification | Unit | FC, SC, LC/Armored Cable | ST, MU | MT-RJ, MPO | D4 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥50 | ≥60 |
Wavelength | nm | 850,1310 | 850,1310 | 850,1310 | 850,1310 | ||||||||
Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Order Information:
| FC/UPC-LC/UPC-SM-SX-3.0mm-1M | ||||||||||||||||
FC | / | UPC | — | LC | / | UPC | / | SM | — | SX | / | 3.0 | — | 1M | ||
1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
1 | Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. | |||||||||||||||
2 | Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) | |||||||||||||||
3 | Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. | |||||||||||||||
4 | Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 | |||||||||||||||
5 | Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... | |||||||||||||||
6 | Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | |||||||||||||||
7 | Cable Length: 3m(Length in meter) | |||||||||||||||

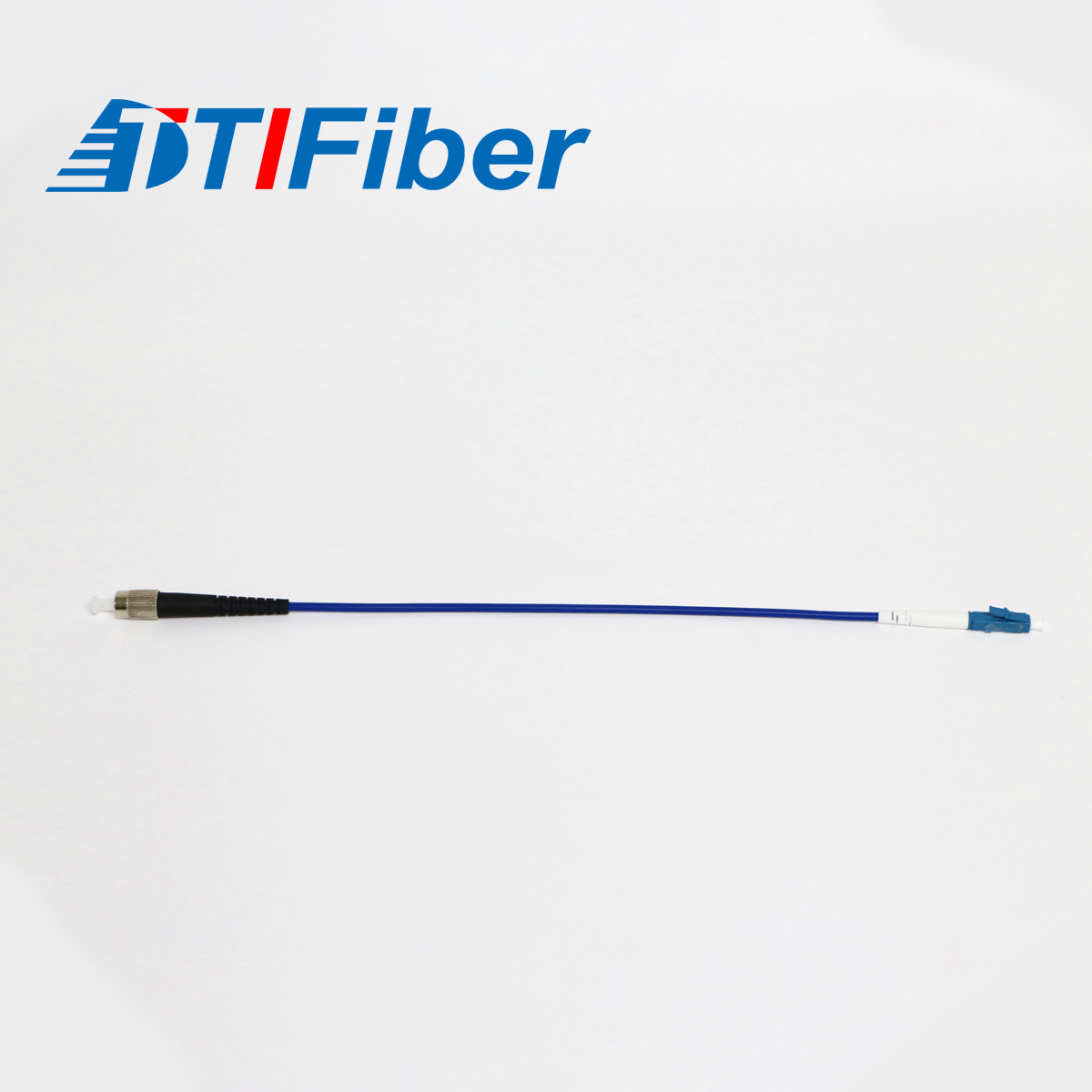

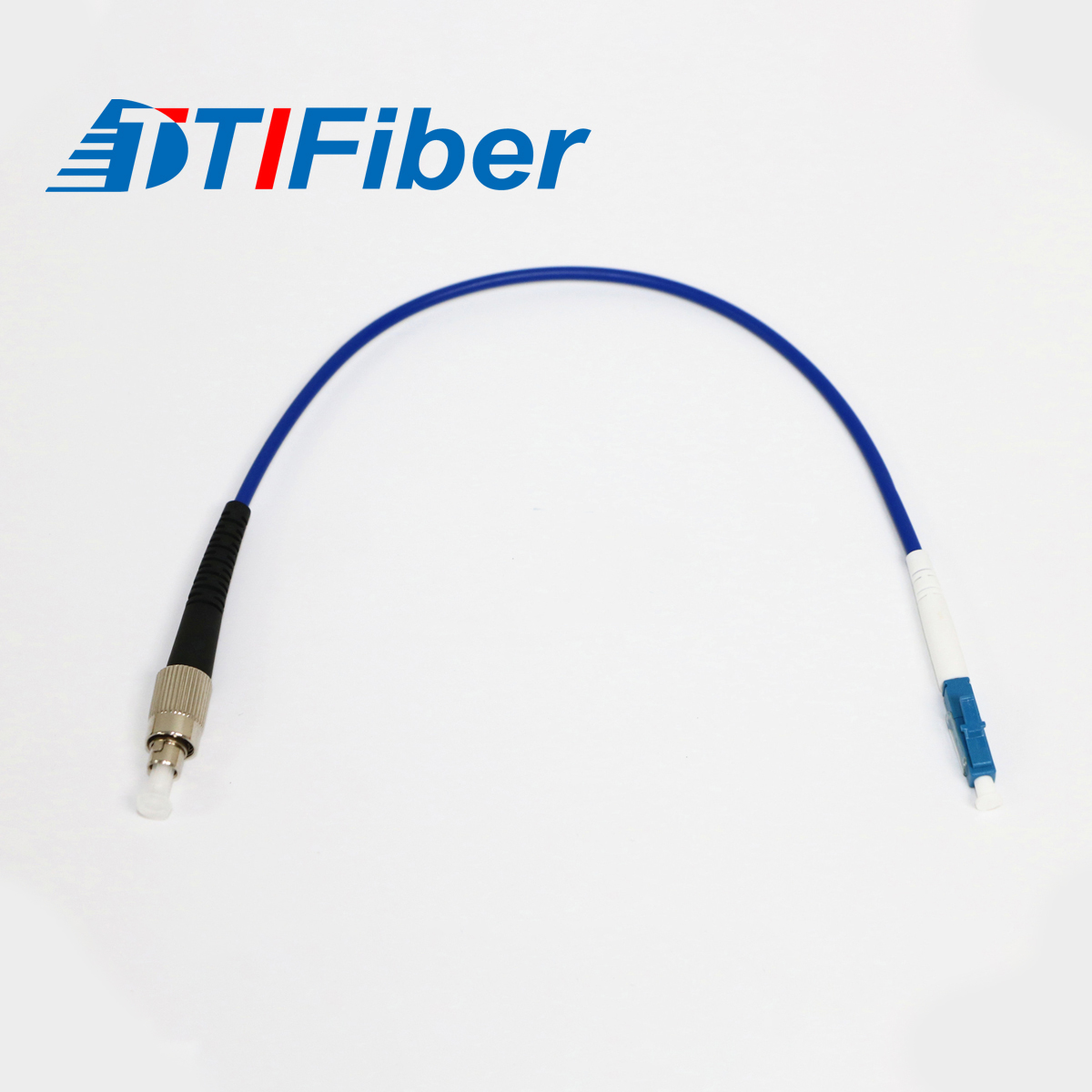

LSZH Armored Fiber Patch Cable Product Picture:
