MPC 24 Core Multi Purpose Distribution Fiber Optic Cable
②Tight sleeved optical fiber has good flame retardant performance.
③Aramid reinforcing element provides the optical cable with excellent tensile properties.
④The external protection material has the advantages of corrosion resistance, waterproof, UV protection, flame retardant, environmental protection and so on.
MULTI PURPOSE DISTRIBUTION CABLE
Description

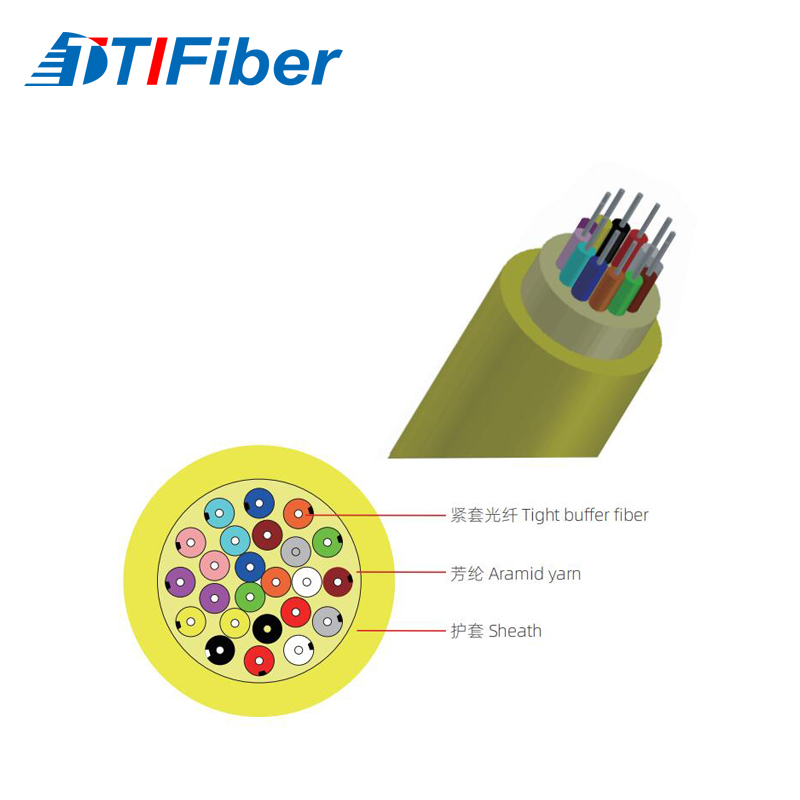

MPC multi-purpose distribution cable use several Φ900μm tight buffer fiber as optical communication medium,the tight
buffer fiber wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a PVC or LSZH
(Low smoke, ero halogen,Flame-retardant) sheath.
①Tight sleeve optical fiber is adopted for easy stripping.
②Tight sleeved optical fiber has good flame retardant performance.
③Aramid reinforcing element provides the optical cable with excellent tensile properties.
④The external protection material has the advantages of corrosion resistance, waterproof, UV protection, flame retardant,
environmental protection and so on.
①Indoor generic cabling.
②As the backbone cabling optical cable of the building.
③Multi core optical fiber movable patch cord.
MULTI PURPOSE DISTRIBUTION CABLE Optical Characteristics
MPC | Attenuation | Full injection bandwidth | Effective bandwidth | 10G Ethernet link length | Minimum bending radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical value | Max | Typical value | Max | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G 652D | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 16 |
G 657A1 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 10 |
G 657A2 | 0.36/0.22 | 0.5/0.4 | - | - | - | - | - | 7.5 |
50/125 | - | - | 3.0/1.0 | 3.5/1.5 | ≥500/500 | - | - | 30 |
62.5/125 | - | - | 3.0/1.0 | 3.5/1.5 | ≥200/500 | - | 30 | |
OM3 | - | - | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | - | - | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
MPC | Cable diameter(mm) | Weight (kg/km) | Tight buffer diameter (um) | Allowable tensile force Long / Short（N） | Allow squash Force Long / Short（N） | Bending radius Static / dynamic（mm） | |
PVC sheath | LSZH sheath | ||||||
MPC-4 | 4.8±0.3 | 16 | 18 | 900±50 | 130/440 | 300/1000 | 20D/10D |
MPC-6 | 5.1±0.3 | 20 | 23 | 900±50 | 130/440 | 300/1000 | 20D/10D |
MPC-8 | 5.6±0.3 | 27 | 31 | 900±50 | 130/440 | 300/1000 | 20D/10D |
MPC-12 | 6.2±0.3 | 32 | 36 | 900±50 | 130/440 | 300/1000 | 20D/10D |
MPC-24 | 8.1±0.3 | 53 | 57 | 900±50 | 200/660 | 300/1000 | 20D/10D |
Operating temperature / -20~+60℃
Storage temperature / -5~+50℃
Standards
Meet YD / T 1258.2、ICEA-596、GR-409、IEC60794-2 and other standards.
