DOUBLE CORE
Model No: MPC 24 core

DOUBLE CORE 8-SHAPED OPTICAL CABLE

① Indoor generic cabling.

② As the backbone cabling optical cable of the building.

③ Multi core optical fiber movable patch cord.
minimum order :
1000 meters
Quantity :
add to cart
Contact Now
DOUBLE CORE 8-SHAPED OPTICAL CABLE
MPC multi-purpose distribution cable use several Φ900μm tight buffer fiber as optical communication medium, the tight buffer fiber
wrapped with a layer of aramid yarn as strength member units,and the cable is completed with a PVC or LS H (Low smoke, ero
halogen, Flame-retardant) sheath.

Features
①Tight-buffered optical fiber is easy to strip.
②Tight-buffered optical fiber has good flame retardant performance.
③Aramid yarn reinforcingelement provides the optical fiber cable with excellent tensile properties.
④The outer sheath material has the advantages of corrosion resistance, waterproof, UV protection, flame
retardant, environmental protection and so on.

Product application
① Indoor generic cabling.
② As the backbone cabling optical cable of the building.
③ Multi core optical fiber movable patch cord.

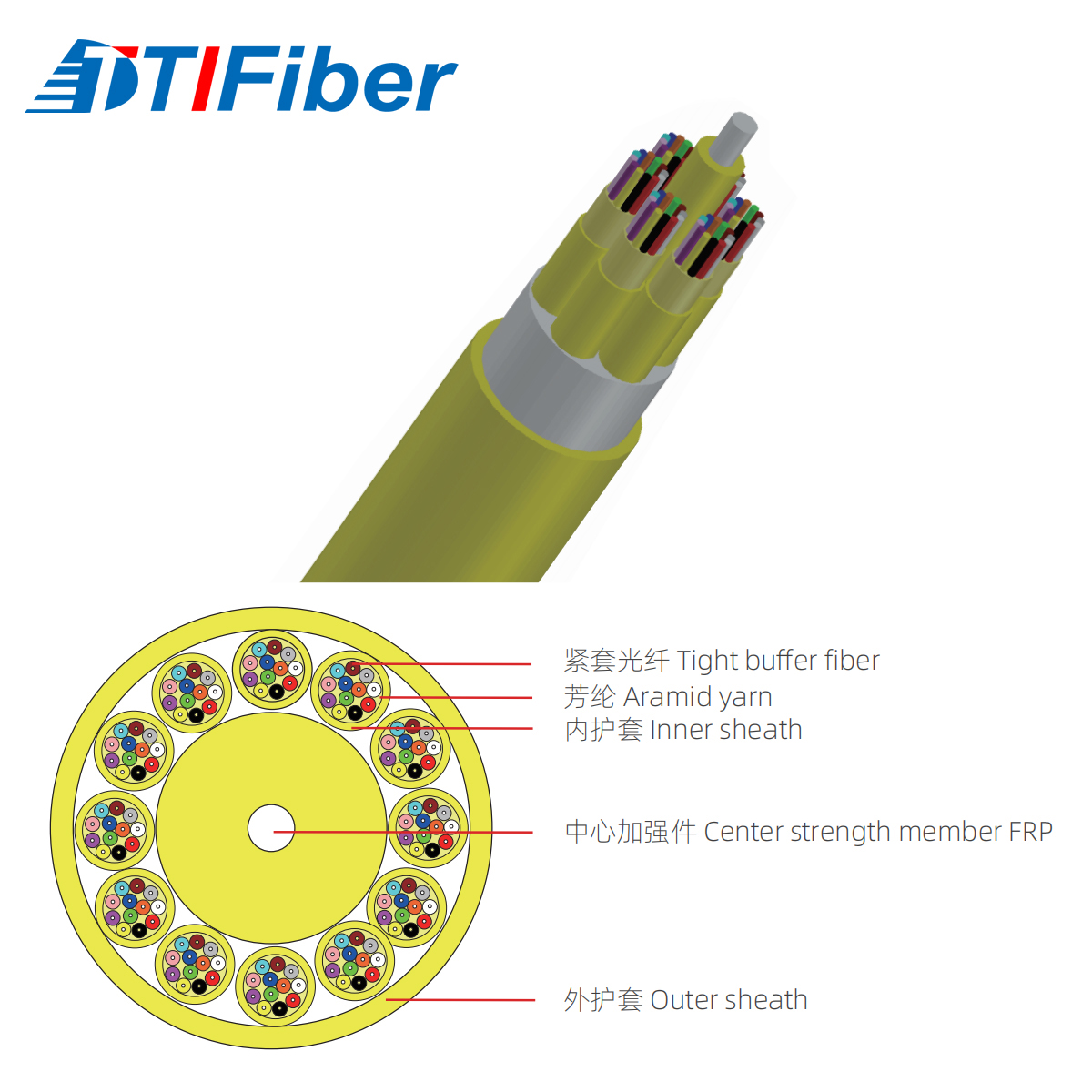

MPC cable


Optical Characteristics

Fiber type

Attenuation

Full injection bandwidth

Effective bandwidth

10G Ethernet link length

Minimum bending radius

Condition

1310/1550nm

850/1300nm

850/1300nm

850nm

850nm

/

Typical value

Max

Typical value

Max

Unit

dB/km

dB/km

dB/km

dB/km

MHZ.km

MHZ.km

m

mm

G 652D

0.36/0.22

0.5/0.4

-

-

-

-

-

16

G 657A1

0.36/0.22

0.5/0.4

-

-

-

-

-

10

G 657A2

0.36/0.22

0.5/0.4

-

-

-

-

-

7.5

50/125

-

-

3.0/1.0

3.5/1.5

≥500/500

-

-

30

62.5/125

-

-

3.0/1.0

3.5/1.5

≥200/500

-

30

OM3

-

-

3.0/1.0

3.5/1.5

≥1500/500

≥2000

≤300

30

OM4

-

-

3.0/1.0

3.5/1.5

≥3500/500

≥4700

≤550

30



Structural Parameters

Cable model

Cable diameter

(mm)

Weight (kg/km)

Tight buffer diameter (um)

 Allowable tensile force
Long / Short（N）

Allow squash Force

Long / Short（N）

 Bending radius
Static / dynamic（mm）

PVC sheath

LSZH sheath

MPC-24

12.3±0.5

117

124

900±50

200/660

300/1000

20D/10D

MPC-36

14.5±0.5

171

180

900±50

200/660

300/1000

20D/10D

MPC-48

14.8±0.5

161

170

900±50

400/1320

300/1000

20D/10D

MPC-72

17.5±0.5

244

254

900±50

400/1320

300/1000

20D/10D

MPC-96

20.7±0.5

351

366

900±50

400/1320

300/1000

20D/10D

MPC-144

24.8±0.5

443

451

900±50

400/1320

300/1000

20D/10D


Environmental characteristics
Operating temperature / -20~+60℃
Storage temperature / -5~+50℃

Standards
Meet YD/T 1258.2、ICEA-596、GR-409、IEC60794-2 and other standards.
