Model No: MPO - MPO OM3
MPO - MPO OM3 Factory price fiber jumper 2M 5M 0.2mm outer diameter DX PVC LSZH fiber optic patch cord
Model Number : MPO fiber optic patch cord
Number of Conductors : ≥ 10
Product Type : MPO fiber optic patch cord
Package details : 46cm*33cm*23cm (100PCS)
Durability : >1000 times
Color : Aqua or customized
OEM : Support
Tensile Strength : more than 20N
Application : FTTH/LAN/CATV
Number of Conductors : ≥ 10
Product Type : MPO fiber optic patch cord
Package details : 46cm*33cm*23cm (100PCS)
Durability : >1000 times
Color : Aqua or customized
OEM : Support
Tensile Strength : more than 20N
Application : FTTH/LAN/CATV
Quantity :
MPO - MPO OM3 Factory price fiber jumper 2M 5M 0.2mm outer diameter DX PVC LSZH fiber optic patch cord
Features
① Low insertion loss
② High return loss
③ High reliability (Hi-Rel)
④ Product smart degree is high
⑤ Excellent temperature stability
Application area
① Optical fiber communication system
② Telecommunication network
③ Communication base station cabling
④ Cable box cabling
⑤ Optically active equipment
Introduce

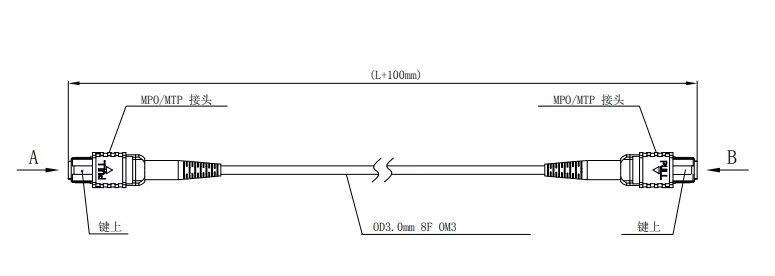

MPO fiber optic patch cord, MPO (Multi-fiber Push On) connector is one of the MT series connectors. The MT
series ferrules use two guide holes with a diameter of 0.7mm on the left and right sides of the ferrule end face
and guide pins (also called PIN pins) for precise connection.The compact design of the MPO connector makes
the MPO patch cord have more cores and smaller size. MPO patch cords are widely used in the wiring process,
where high-density integrated optical fiber lines are required, and in FTTX, 40/100GSFP, SFP+ and other
transceiver modules or internal and external connections of equipment.
Application
1.LAN cabling between different buildings of an enterprise
2.Optical link interconnection in optical active equipment
3.Wiring in communication base stations, wiring in distribution boxes
4.Optical signal connection in residential areas, industrial park computer rooms, and commercial building
computer rooms
computer rooms
5.Building dense cabling systems
6.Fiber optic communication systems, cable TV networks, telecommunication networks
7.Local area networks (LANs), wide area networks (WANs), FTTx
Connector Specifications
Central wavelength | 1550nm、1310nm、 1300nm、850nm |
Enter the connector type Out-put connector type | MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F） MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F） |
MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F） | |
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F） | |
Optical fiber number | 8=8 Fiber, 12=12 Fiber, 16=16 Fiber, 24=24 Fiber, or specified |
Optical fiber type | G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,or specified |
Fiber diameter | Φ9/125um、Φ50/125um、Φ62.5/125m |
Cable outer diameter | Φ3.0mm、Φ3.5mm、Φ4.5mm、or specified |
Product line sequence The pigtail pigtail | A polarity、 B polarity、 C polarity MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F） |
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F） |
