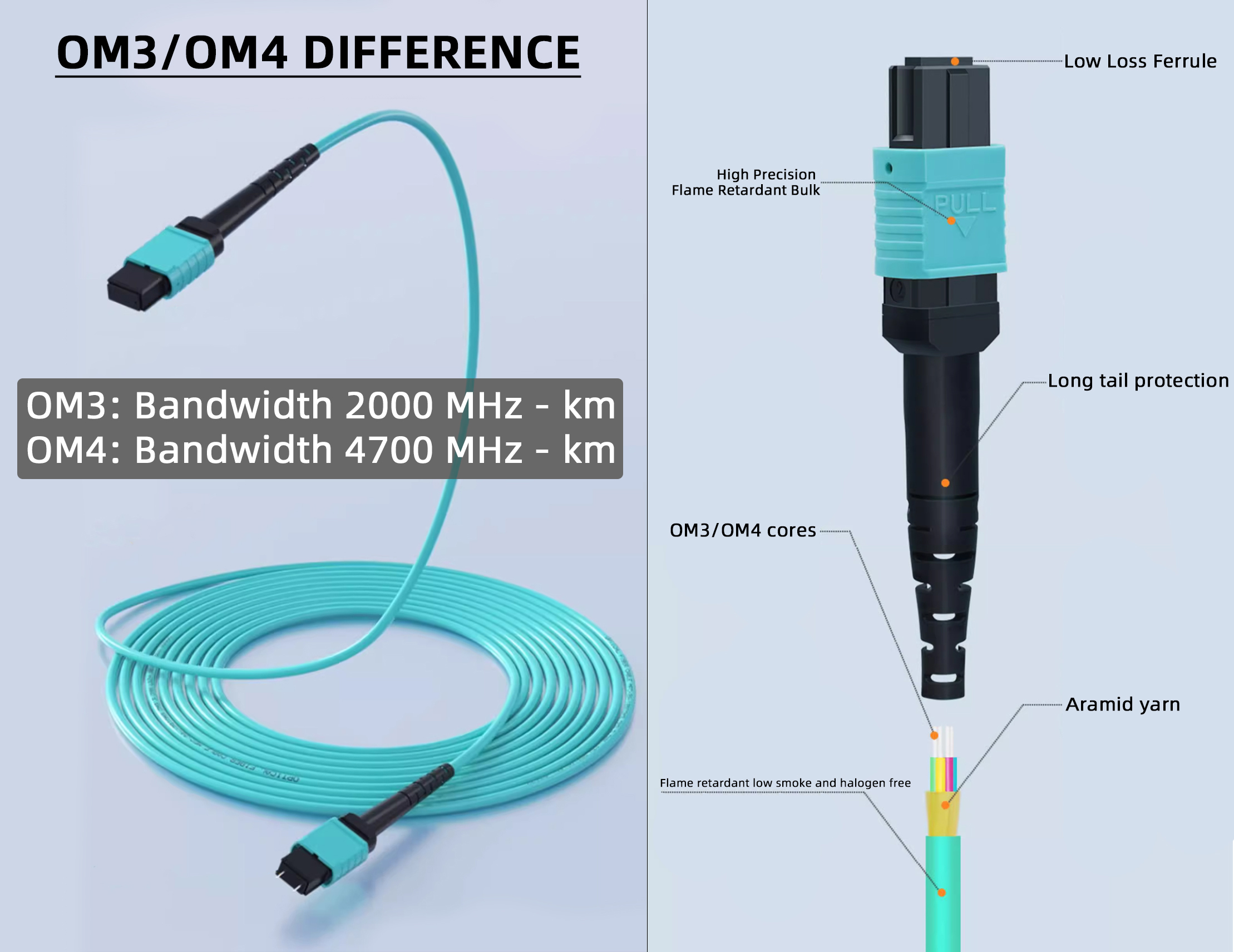

MPO fiber optic patch cord
MPO fiber optic patch cord
Model No: MPO OM3 OM4 optic patch

MPO - MPO OM3 OM4 Factory price PVC LSZH fiber optic patch cord

Application : Telecommunication

Number of Conductors : ≥ 10

Jacket : PVC LSZH LSOH PE HDPE

Connector : SC, LC, FC, ST, MPO, MTRJ

Fiber Type : G652D, G657A1, G657A2, OM1, OM2, OM3, OM4

Ferrule end -face : UPC/APC

Packing : PE Bag

OEM/ODM : Customized

Length : 1m, 2m, 3m, 5m, Customized
minimum order :
1000 meters
Quantity :
add to cart
Contact Now
MPO - MPO OM3 OM4 Factory price PVC LSZH MPO fiber optic patch cord
MPOMPO
Technical Parameters
Parameter
unit
Numerical value
Connector type
/
MPO-MPO、MTP-MTP
Central wavelength
nm
1550
1310
1300
850
Maximum insertion loss (23℃)

dB
Typical value 0.3
maximum 0.75
Typical value 0.3
maximum 0.75
Typical value 0.3
maximum 0.75
Typical value 0.3
maximum 0.75

Minimum return loss (23℃)
PC
dB
≥45
≥20
UPC
dB
≥50
≥25
APC
dB
≥60
≥45
Repeatability
dB
≤0.1
Interchangeability
dB
≤0.2
Axis alignment Angle tolerance
deg
±0.3
Nuber of plug
times
≥500
Operating temperature
℃
-20~+70
Storage temperature
℃
-40~+85

Central wavelength
1550nm、1310nm、 1300nm、850nm
Enter the connector type

Out-put connector type
MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）
MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）
Optical fiber number
8=8 Fiber, 12=12 Fiber, 16=16 Fiber, 24=24 Fiber, or specified
Optical fiber type
G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,or specified
Fiber diameter
Φ9/125um、Φ50/125um、Φ62.5/125m
Cable outer diameter
Φ3.0mm、Φ3.5mm、Φ4.5mm、or specified
Product line sequence
The pigtail pigtail
A polarity、 B polarity、 C polarity
MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）


Product Description

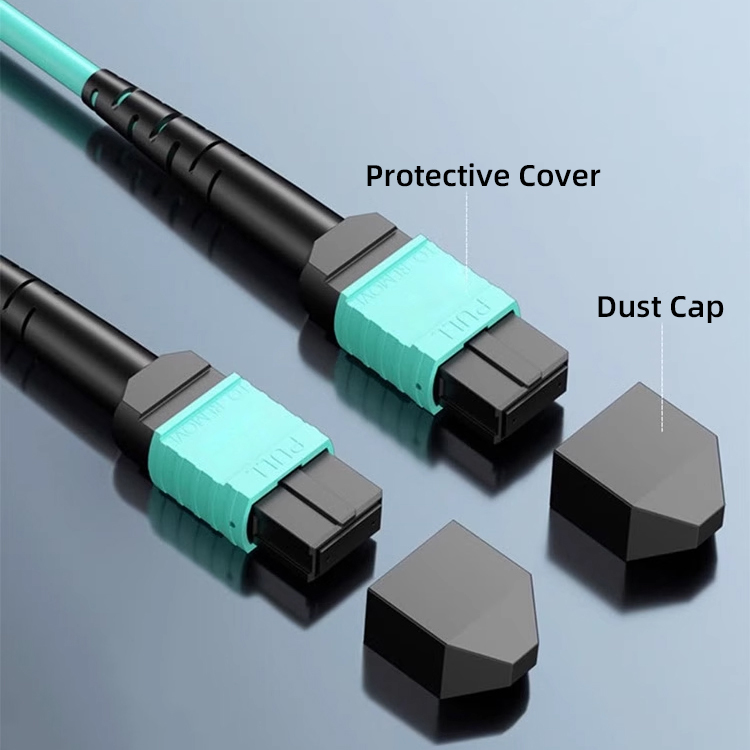

MPO
MPO fiber optic patch cord
MPO fiber optic patch cord

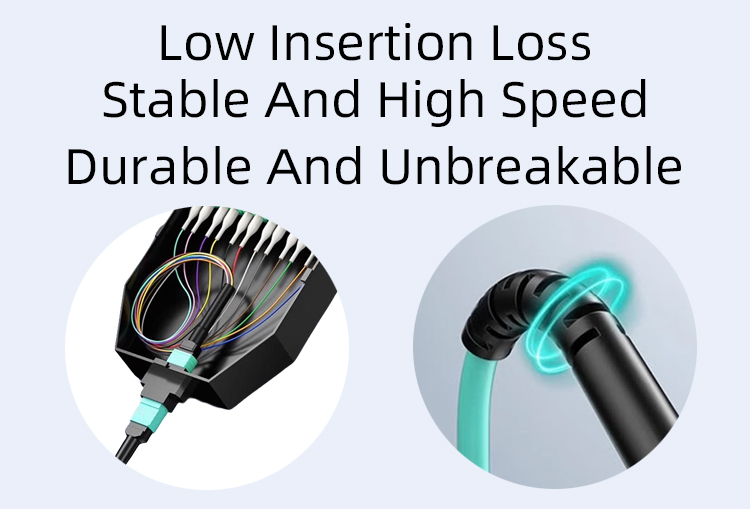

Features
①Low insertion loss
②High return loss
③High reliability (Hi-Rel)
④Product smart degree is high
⑤Excellent temperature stability

Application Area
①Optical fiber communication system
②Telecommunication network
③Communication base station cabling
④Cable box cabling
⑤Optically active equipment
