Model No: MPO Patch Cord

MPO OM3 OM4 8 12 16 24 Core Single Mode Fiber Optic Patch Cord

Application : Telecommunication

Number of Conductors : ≥ 10

Jacket : PVC LSZH LSOH PE HDPE

Connector : SC, LC, FC, ST, MPO, MTRJ

Fiber Type : G652D, G657A1, G657A2, OM1, OM2, OM3, OM4

Ferrule end -face : UPC/APC

Packing : PE Bag

OEM/ODM : Customized

Length : 1m, 2m, 3m, 5m, Customized
minimum order :
1000 meters
Quantity :
add to cart
Contact Now
MPO OM3 OM4 8 12 16 24 Core Single Mode Fiber Optic Patch Cord
MPOMPO
Technical Parameters
Parameter
unit
Numerical value
Connector type
/
MPO-MPO、MTP-MTP
Central wavelength
nm
1550
1310
1300
850
Maximum insertion loss (23℃)

dB
Typical value 0.3
maximum 0.75
Typical value 0.3
maximum 0.75
Typical value 0.3
maximum 0.75
Typical value 0.3
maximum 0.75

Minimum return loss (23℃)
PC
dB
≥45
≥20
UPC
dB
≥50
≥25
APC
dB
≥60
≥45
Repeatability
dB
≤0.1
Interchangeability
dB
≤0.2
Axis alignment Angle tolerance
deg
±0.3
Nuber of plug
times
≥500
Operating temperature
℃
-20~+70
Storage temperature
℃
-40~+85

Central wavelength
1550nm、1310nm、 1300nm、850nm
Enter the connector type

Out-put connector type
MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）
MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）
Optical fiber number
8=8 Fiber, 12=12 Fiber, 16=16 Fiber, 24=24 Fiber, or specified
Optical fiber type
G652D,G657A1,G657A2,OS2,OM1,OM2,OM3,OM4,OM5,or specified
Fiber diameter
Φ9/125um、Φ50/125um、Φ62.5/125m
Cable outer diameter
Φ3.0mm、Φ3.5mm、Φ4.5mm、or specified
Product line sequence
The pigtail pigtail

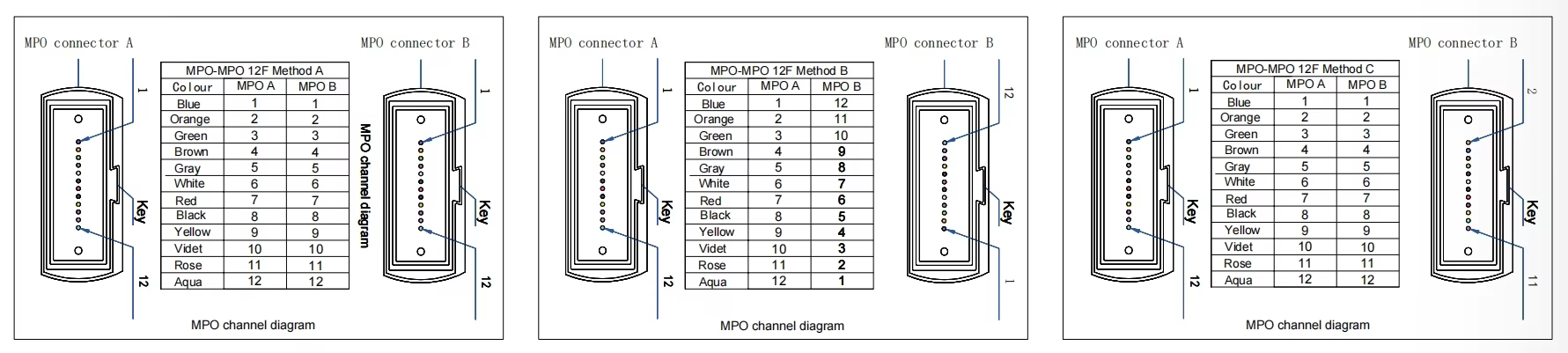

A polarity、 B polarity、 C polarity
MPO/UPC（M）、MPO/UPC（F）、MTP/UPC（M）、MTP/UPC（F）
MPO/APC（M）、MPO/APC（F）、MTP/APC（M）、MTP/APC（F）


Product Description
MPO
MPOMPO

Features
①Low insertion loss
②High return loss
③High reliability (Hi-Rel)
④Product smart degree is high
⑤Excellent temperature stability

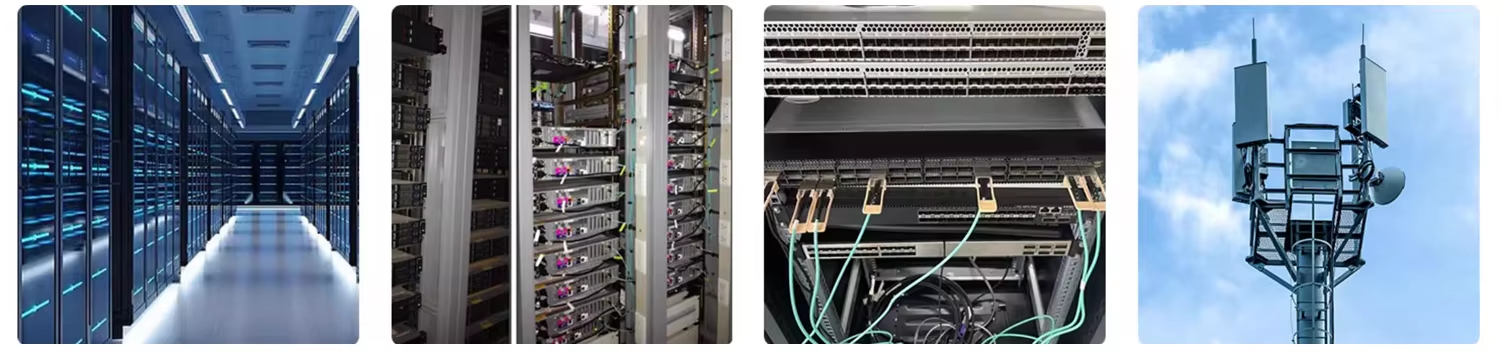

Application Area
①Optical fiber communication system
②Telecommunication network
③Communication base station cabling
④Cable box cabling
⑤Optically active equipment

MPO

MPO
MPO
TTI Fiber Communication Tech. Co., Ltd., is a professional manufacturer specialized in Fiber optic
products. Our factory located in Shenzhen, China, covers an area of 12,000 square meters and has
obtained ISO 9001, ISO 14001, REACH, RoHS, CE and CPR certificates and so on. We have a wide
range of fiber optic products, including Fiber Optic Cable, Fiber Optic Patch Cord, Fiber Optic
Splitter, Fiber Optic Patch Panel, FTTx products, etc. We also provide professional Fiber Cabling
Solutions and one-stop OEM & ODM service. Our main markets are in North America, South
America, Europe, Africa and Asia. Our reliable quality and sincere service are highly recognized
by our clients all over the world. We have cooperated with Global 500 top brands on FTTx
products, and more than 30 well-known brand clients in fiber optic industry. Our products are
exported to over 100 countries. We are committed to providing our clients with the best support,
regardless of their business scale. Our expertise and knowledge of market trends, enables us
provide technical support and matched solutions on fiber optic products. We are proud of
providing excellent quality, competitive price and timely delivery.

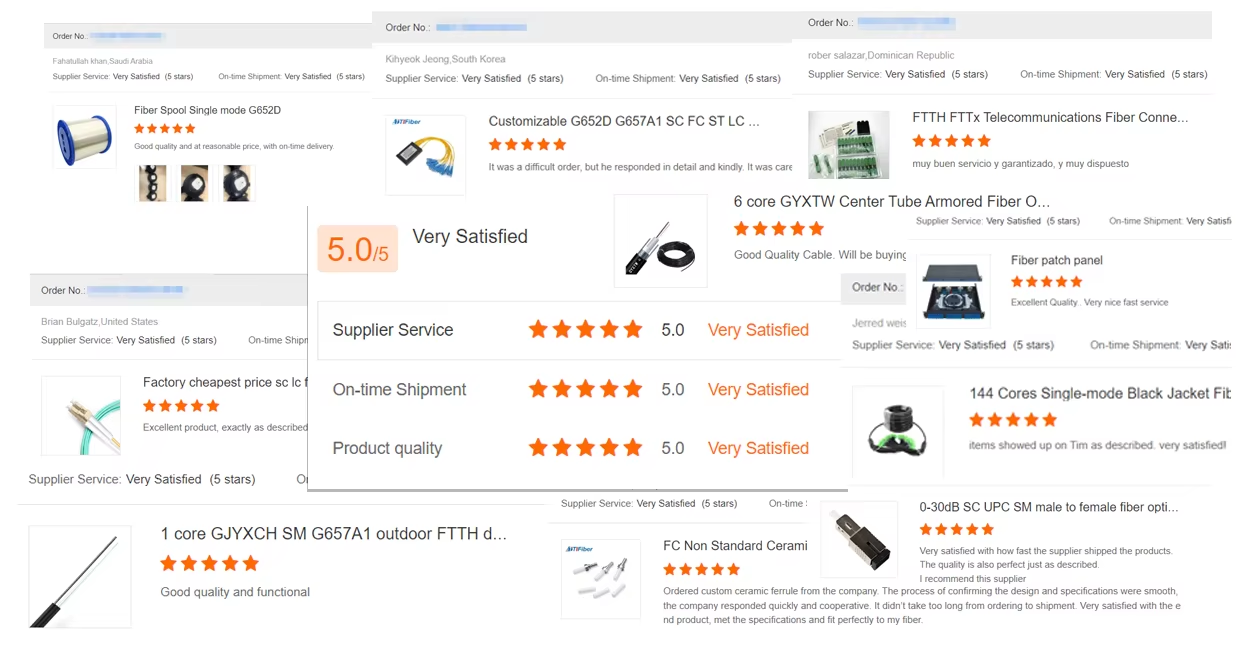

Customer Photos
