Model No: MPO/UPC 12F

MPO/UPC-MPO/UPC MM 12F 12 core OM3 3.0mm LSZH Fiber Optic Patch Cord

Model Number : MPO

Products : 50/125um OM3 MPO/MPO Optical Fiber Cable

Inner : Ceramic

Fiber : G652D,G657A1or Others

Cable Size : 0.9mm,2.0mm or 3.0mm

Fiber Core : Simplex,Duplex, or Mulit Core

Connector : SC/LC/ST/FC/MPO/MU

Length : 1/2/3/4/5/6/7/8/9/10 or Others

minimum order :

1000 pieces

Quantity :

add to cart

Contact Now

Multimode 12 core OM3 MPO Female To Female Fiber Optic Patch Cord

MPO/UPC-MPO/UPC MM 12F 12 core OM3 3.0mm LSZH

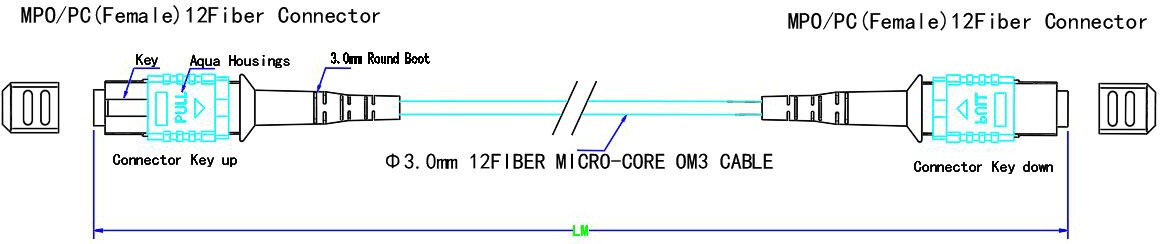

Product Structure：

Product Length Tolerance

L≤1m	-1cm≤△L≤+5cm
1m＜L≤10m	-10cm≤△L≤+10cm
L≥10m	-10cm≤△L≤1％*L

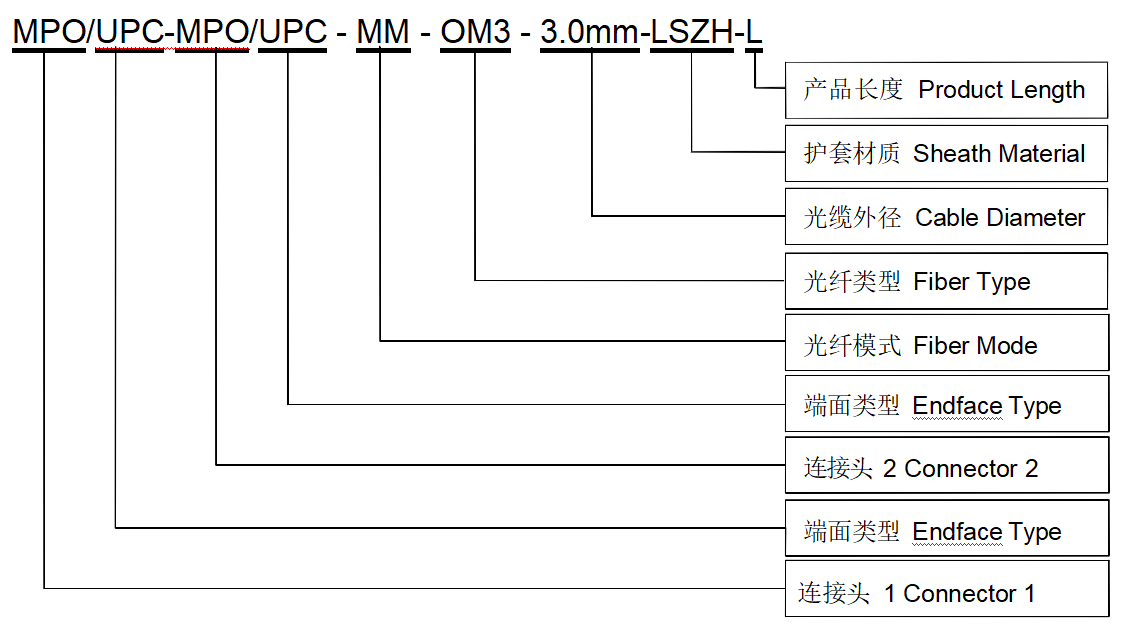

Product Model：

Connector1	Connector2	Endface Type	Fiber Type	Cable Diameter	Sheath Material	Colour
MPO	MPO	UPC	OM3	3.0mm	LSZH	Aqua
It can also be customized according to the specifications specified by customers.

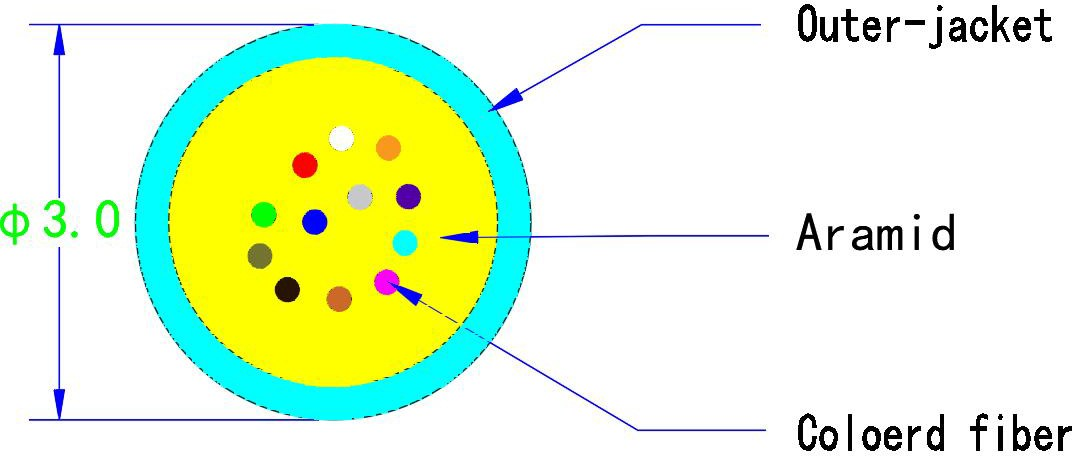

Fiber optic cable structure and performances / 12Fiber Round Cable

Optical Performances

Item	Connector
Insertion Loss(dB)	≤0.75
Return Loss(dB)	SM:≥50（UPC） ≥60（APC）; MM:≥25（PC）
Conform to criterion	IEC61754

1.mechanical performances

Vibration test

Test criterion：IEC 61300-2-1

Amplitude：0.75mm
Frequency sweep range：10~50HZ/minute

Time：30minutes

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

2.Impact test

Test criterion：IEC 61300-2-12

Drop height：1.5m

Drop times：5 次/times

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

3.Mating durability test

Test criterion：IEC 61300-2-2

Durability：500 次/times

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

4.Environmental performances

High temperature test

Test criterion：IEC61300-2-18

Temperature：70℃

Time：96 /hours

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

5.Low temperature test

Test criterion：IEC61300-2-17

Test criterion：-25℃

Time：96 /hours

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

6.Change of temperature：

Test criterion：IEC 61300-2-22

Temperature range：-25℃to + 70℃

Time：96 /hours，12 /cycles

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

7.Damp heat

Test criterion：IEC 61300-2-19

Test condition：40℃，93% RH

Time：96 /hours

After test：

a.No mechanical damage, such as deformation, crack, slack, etc

b.The optical performance conforms to Table 5

No.	Test Item	Insertion Loss variation（dB）
1	Vibration test	≤0.2
2	Impact test	≤0.2
3	Mating durability test	≤0.2
4	High temperature test	≤0.2
5	Low temperature test	≤0.2
6	Change of temperature	≤0.2
7	Damp heat	≤0.2

Temperature Performances

Opration temperature: -25℃～+70℃

Installation temperature: -10℃~+60℃

Storage temperature: -40℃~+85℃

Environmental protection: Products meet ROHS.

Packaging,Transportation and Storage

1.Identification

Product packaging box (bag) should be marked with product model and specifications, optical
performance parameters, production batch number and other information.

2.Packaging

After the coils are tied up, they are packed in ziplock bags, and then packed in cartons according
to the customer's order quantity

3.Transportation

as outer packing, on the packing boxes, according to the provisions of the national standards,
do the corresponding marks

4.Storage

Products should not be stored in open air, wet or seriously corroded environment for a long time

Note: the above specifications can be produced according to the customer's requirements.
