MU MTRJ Single Mode Patch Cord / Duplex Multimode Fiber Optic Cable
Ferrule End-face : UPC/APC
Fiber Type : SM/MM/OM3/OM4
Cable Type : Simplex/Duplex
Cable OD 0.9/2.0/3.0mm
Cable Jacket : PVC/LSZH/OFNR/OFNP Outer Jacket
Cable Length : 1M, 2M, 3M Or Customized
Cable Color : Orange, Yellow, Aqua, Purple, Violet Or Customized
High Light : fiber optic jumper, fibre optic patch leads
MU MTRJ Fiber Optic Patch Cord Singl mode / Multimode Duplex Fiber Cable
Mu Cable Description:
1. Mode: OS1/OS2/OM1/OM2/OM3/OM4
2. Core: Simplex, Duplex
3. Insertion Loss: ≤0.2 dB
4. Return Loss: ≥50dB
5. Exchangeability: ≤0.2dB
6. Repeatability: ≤0.2dB/1000times
7. Operation Wavelenghth: 850nm,1310nm,1550nm
8. Operating Temperature: -30 °C ~ +75 °C
9. Storage Temperature: -40 °C ~ +85 °C
10. Cable OD: 3.0mm/2.0mm/0.9mm
11. Cable Material: OFNR,LSZH&Polarization maintaining
12. Fiber Cable Type: PVC 3.0mm, Purple color
13. Spec: single core , dual - core , the 4 core , 6 cores , 12 core . . . etc(according to your requests)
14 . Connector type: FC,SC,ST,LC,MU,MTRJ,E-2000 and other
15. Length : The length of patch cord is depend on user's requirements
Mtrj Cable Features:
Low insertion loss, high return loss
High credibility and stability
High dense connection, easy for operation
Good in repeatability and exchangeability
Application:
LAN/CATV
Telecommunication
Optical appliances connection
Communication equipment rooms, FTTX
Specification:
| Item | Single mode | Multi mode | |
| Splicing Type | UPC | APC | PC |
| Insertion Loss | <=0.3dB | <=0.2dB | <=0.3dB |
| Reture Loss | >=45dB | >=55dB | >=35dB |
| Repeatability | <=0.1dB | <=0.1dB | <=0.1dB |
| Temperature | -40/+80°C | ||
Order Information:
Fiber Optic Patch Cord | |||||
Connector Type | Ceramic Ferrule | Cable Diameter (mm) | Simplex/Duplex | Single mode | Length (meter) |
| FC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
| SC | PC/UPC/APC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
ST | PC/UPC | Φ0.9, Φ2,Φ3 | Simplex/Duplex | SM/MM | Customized |
LC | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
MU | PC/UPC | Φ0.9, Φ2 | Simplex/Duplex | SM/MM | Customized |
MTRJ | PC/UPC | Φ0.9, Φ2 | Duplex | SM/MM | Customized |

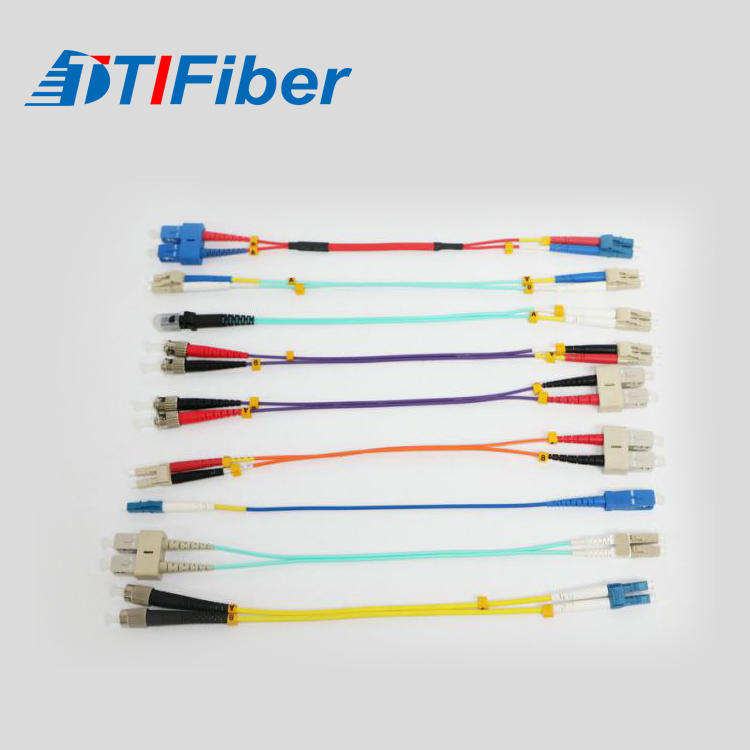

MU MTRJ Fiber Optic Patch Cord Product Picture:
