Model No: FC/UPC-FC/UPC patch cord

FC/UPC-FC/UPC Multimode OM5 Duplex Customized Length Fiber Optic Patch Cord

Product Namee : Fiber Optic Patch Cord
Application : FTTH FTTB FTTX Network
Connector Type : APC/UPC
Material : PVC/LSZH
Fiber Type : G652D/G657A/G655
Color : Customized
Wavelength : 1310nm Or 1550nm
Fiber Count : Simplex Or Duplex
Polish : PC/UPC/APC
Type : Single Mode/Multi-mode
Quality Control : 100% Test Before Shipping
Length : 1m 2m 3m Or Customized
High Light : fiber patch cord, optical patch cord

minimum order :

1 meter

Quantity :

add to cart

Contact Now

FC/UPC-FC/UPC Multimode OM5 Duplex Customized Length FC Fiber Optic Patch Cord

High Quality FC-FC Duplex OM5 2.0mm Optic fiber Network Optical Jumper Patch Cord

Om 5 Fiber Specification:

Type	Standard,Master
Style	LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber	Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3
Cable	Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH
Polishing Manner	UPC,SPC,APC (8°& 6°)
Insertion Loss	≤ 0.1dB (For Singlemode Master) ≤ 0.25dB (For Singlemode Standard) ≤ 0.25dB (For Multimode) Tested by JDS RM 3750
Return Loss (Singlemode)	UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750
Repeatability	±0.1dB
Operating temperature	-400C to 850C
Geometry Requirement ( Singlemode)	Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber
optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major
application areas: computer work station to outlet and patch panels or optical cross connect distribution center.
TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core,
armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables,
the SC, ST, FC, LC, MU, MTRJ,connectors (APC/UPC polish) are all available. In addition, we also have MTP/MPO
cables in stock.

Om5 Fibre Feature:
1. Low insertion loss
2. High return loss
3. Excellent Repeatability, exchangeability, wearability and stability.
4. Environmentally Stable

Om5 Fiber Application:

1. FTTH, LAN, PON & Optical CATV, Local ring net
2. Optical fiber communication system
3. Optical fiber test equipment
4. Optical fiber sensor
5. Industry and military application

Product Picture:

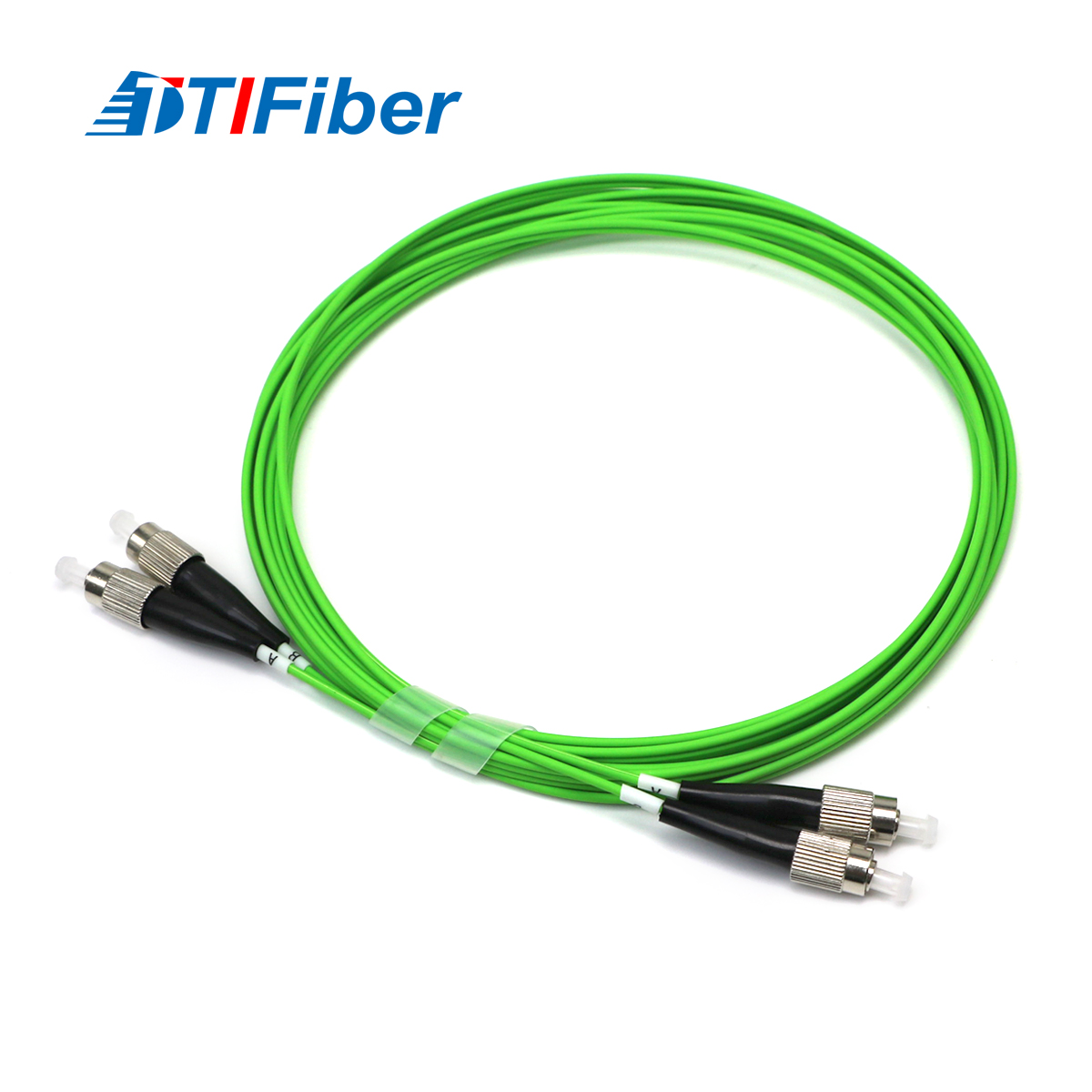

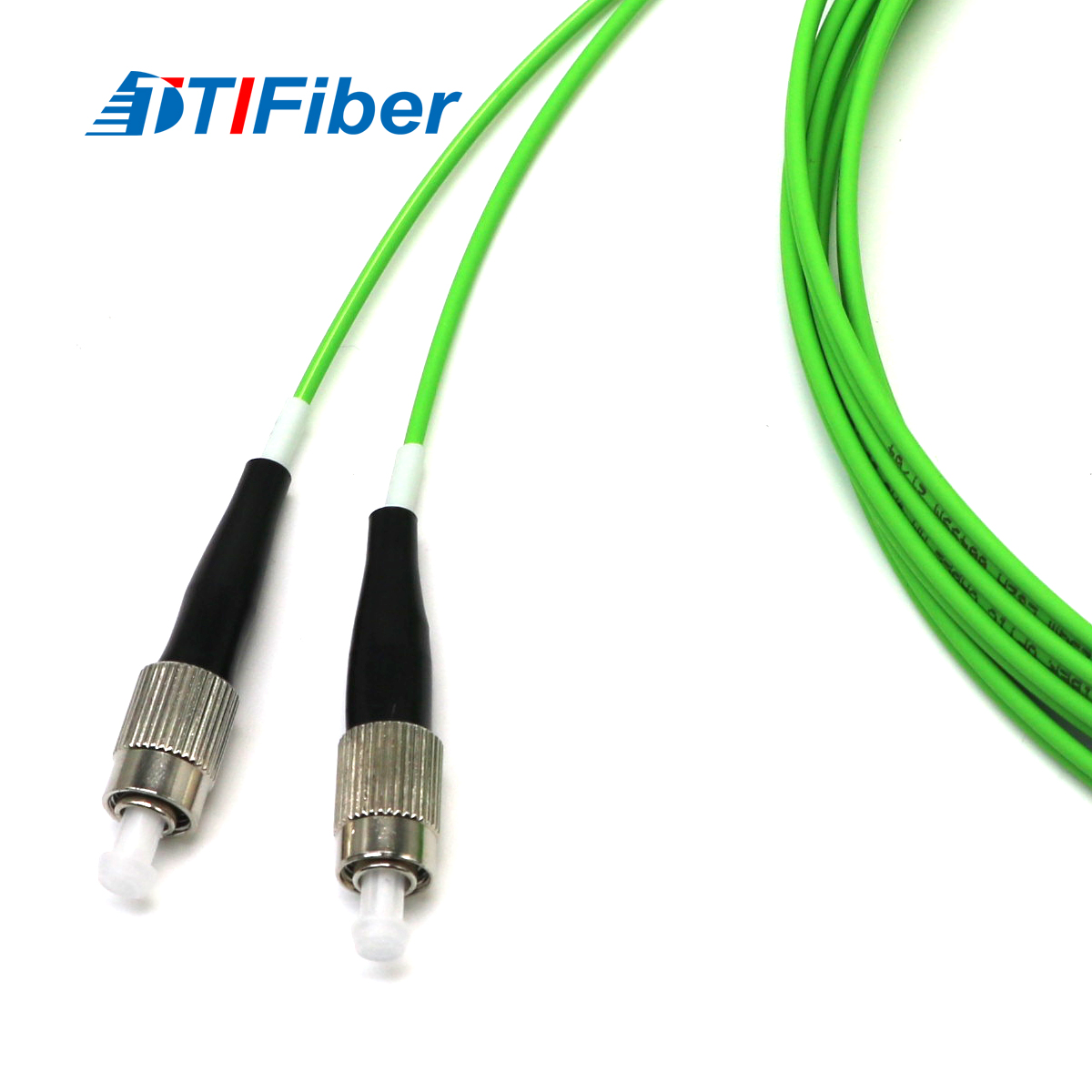

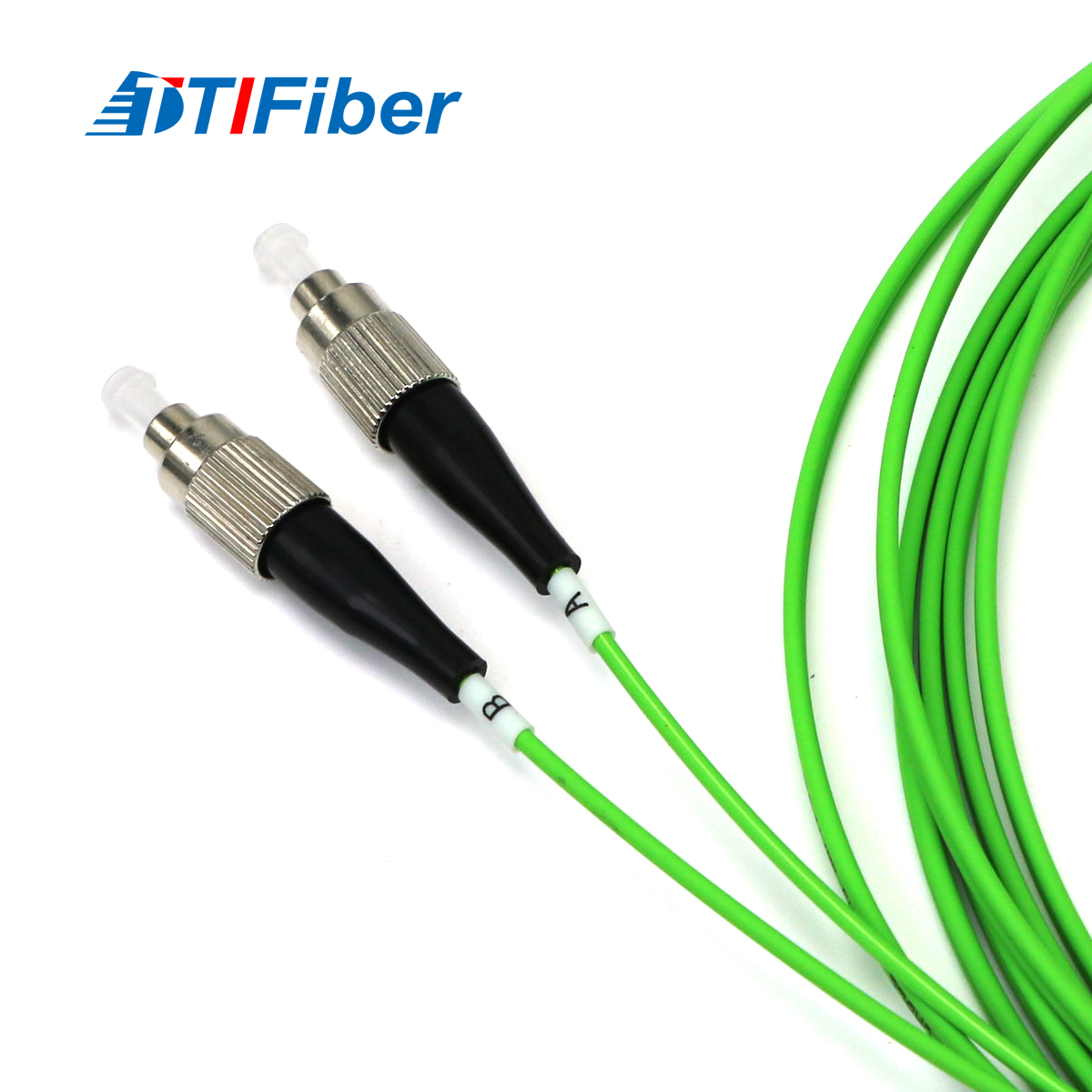

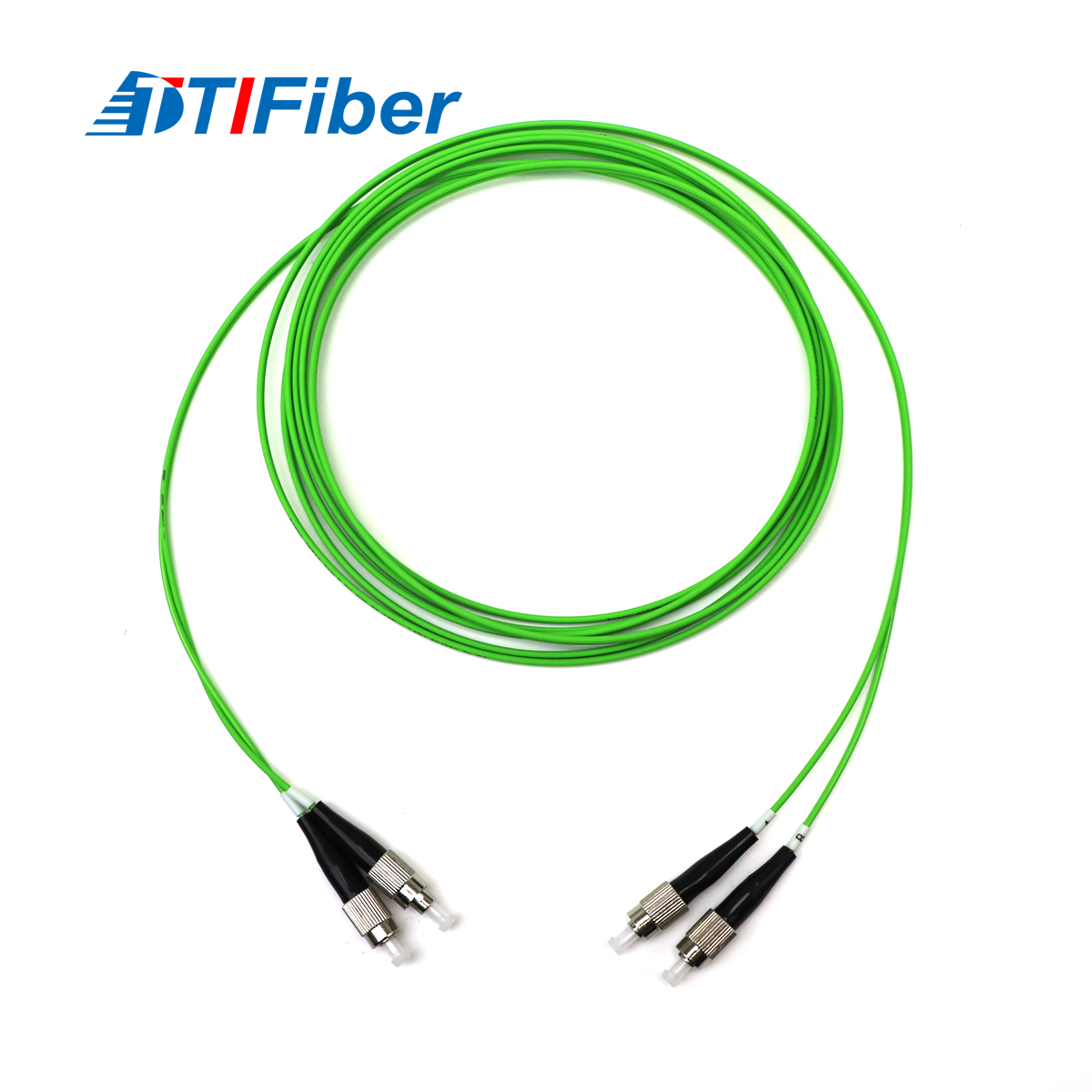

FC Fiber Optic Patch Cord
