Model No: GYXTW Fiber Optic Cable
Outdoor 2 or 12 Cores GYXTW FTTH Fiber Optic Cable
Material : PE
Application : Aerial/Duct/Direct
Operating temperature : -40 to 70
Wavelength : 1310nm or 1550nm
Type : SM
Quality control : 100% test before shipping
Package : Wooden Drum
Sheath : MDPE/HDPE/LSZH/PVC
Application : Aerial/Duct/Direct
Operating temperature : -40 to 70
Wavelength : 1310nm or 1550nm
Type : SM
Quality control : 100% test before shipping
Package : Wooden Drum
Sheath : MDPE/HDPE/LSZH/PVC
minimum order :
1000 meters
Quantity :
Singlemode GYXTW G652D Fiber Optic Wire Cable Black Outdoor Aerial
4 8 12 24 Fiber Count Singlemode Fiber Optic Wire Cable Black Outdoor Aerial GYXTW
1. Specification:
Central loose tube optical cable with Corrugated steel tape and parallel steel wires | |
NO.Of cores | 2~12 |
The cable´s outer diameter(mm) | 9.8~10.8 |
The cable´s weight(kg/km) | 70~94 |
Permissible tensile force(N) | Tempotensile force≤1500 |
Permtensile force≤600 | |
Permissible crush force(N/100mm) | Tempoflatting force≤1000 |
Permflatting force≤300 | |
Min.bending radius(mm) | Dynamic bending: Optic cable OD of 20 times |
Static bending: Optic cable OD of 10 times | |
Operating temperature | -40~+60℃ |
Layout mode | Pipeline,overhead and embedment |
2.Product Picture:
3. Characteristic:
1. GYXTW is an outdoor use optical fiber cable suitable for duct and aerial applications.
2. We supply GYXTW fiber optic cable from 2 fiber cores to 24 fiber cores.
3. Both single mode type and multimode types are available.
4. Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel
tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.
tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.
4. Feature:

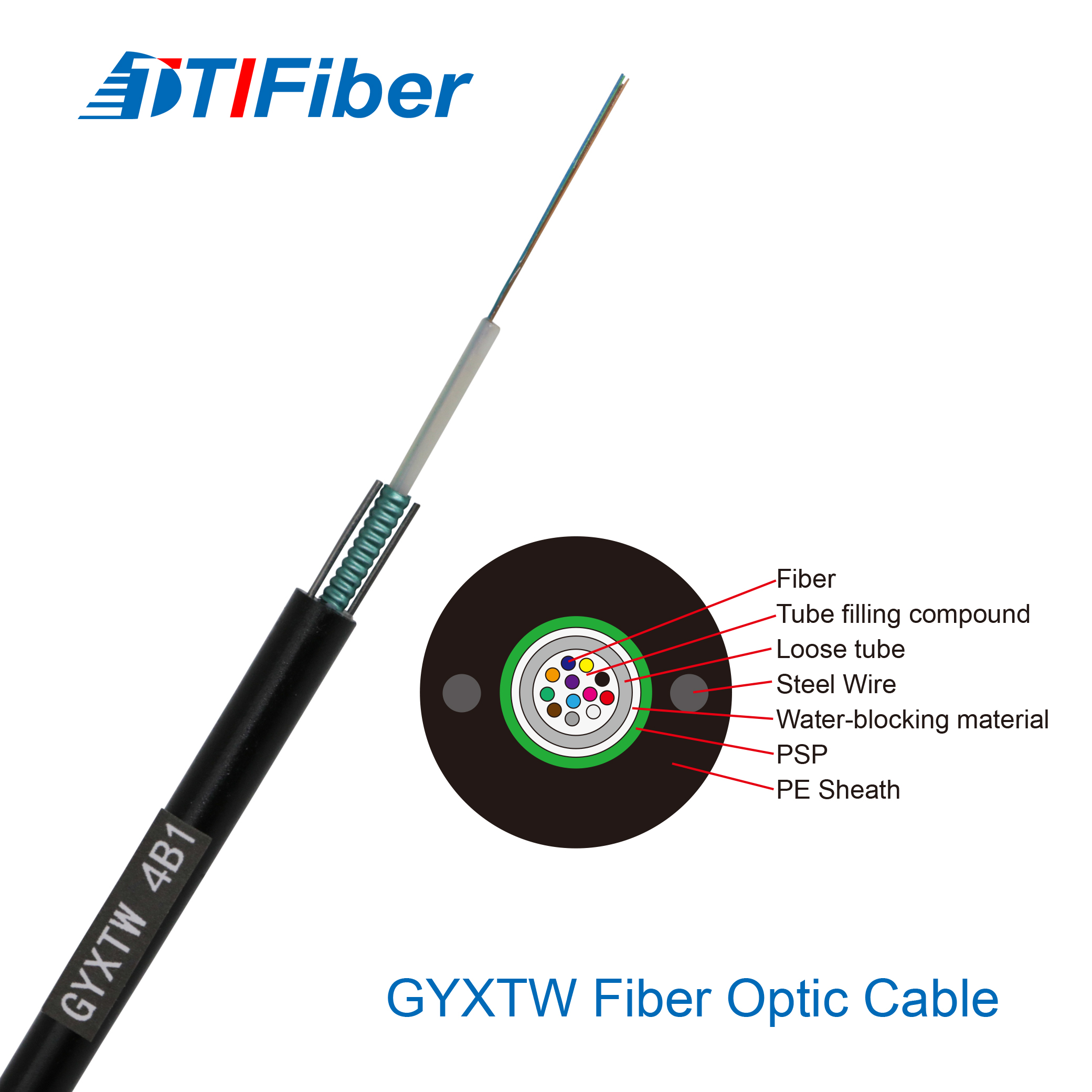

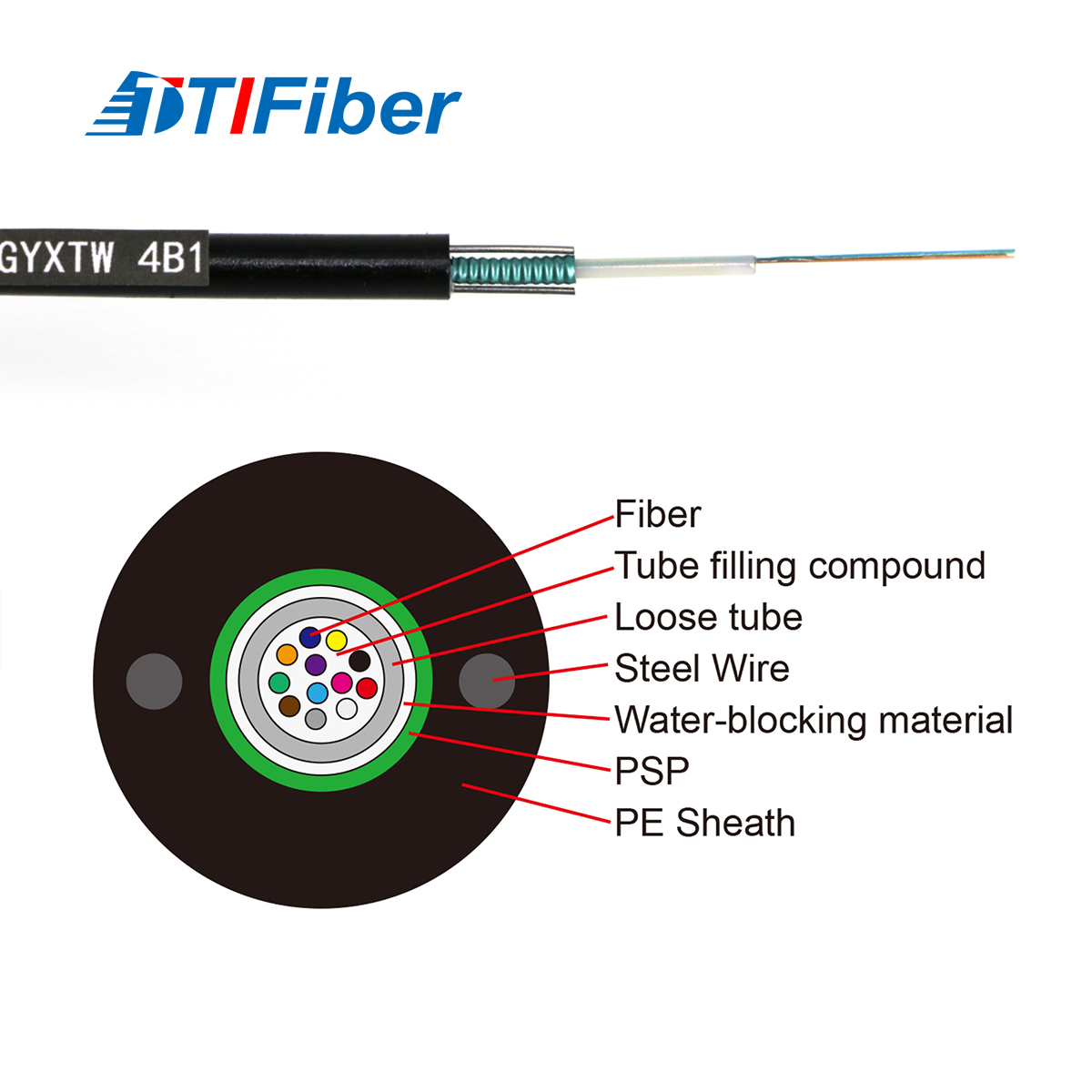

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and
the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel
wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
| Performance | Long-term | Short-term |
| Max.Tension(N) | 3500 | 7000 |
| Max.Crushing | 300 | 1000 |
| Resistance(N/100mm2) | 30D(Dynamic) | 15D(static) |
| Storage and operating temperature | -40℃ to +70℃ | |
5. Application:
- Frequent lightning area and anti electric field : The subway, tunnel
- Long-distance communication: Local trunk network & User network
- Duct and direct buried application
- Harsh environment
