Outdoor Aerial GJYXCH Drop Single Mode 1 2 4 Core FTTH Fiber Drop Optic Cables
Fiber type : G652D G657A1 G657A2
Fiber count : 1/2/4F
Out diameter(±5μm) : 250
Self supporting element : 1.0mm Steel wire
Tensile element : 2*0.4mm Steel wires
Sheath material : LSZH
Out diameter : 5.1(±0.2)*2.0(±0.1) mm
Cable weight(kg/km) : 22
Storage temperature : -20 to +60

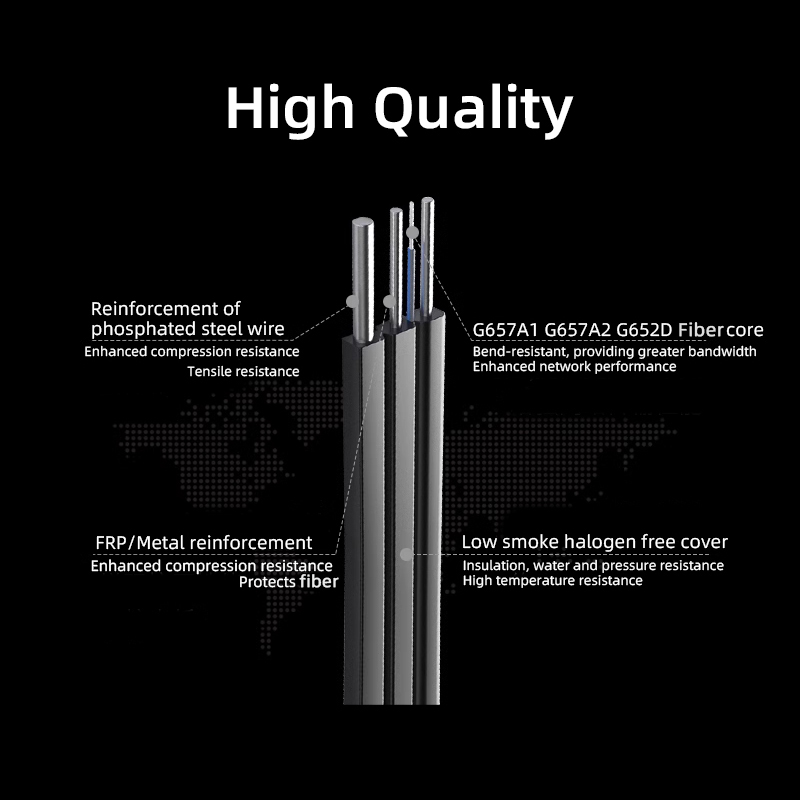

GJYXCH Drop Cable Construction / Cross Sectional Diagram
Items | Specification | |
Fiber count | 1/2/4F | |
Fiber | Out diameter(±5μm) | 250 |
Outer sheath | Self supporting element | 1.0mm Steel wire |
Tensile element | 2*0.4mm Steel wires | |
Sheath material | LSZH | |
Color | Black | |
Out diameter | 5.1(±0.2)*2.0(±0.1) mm | |
Cable weight(kg/km) | 22 | |
Single-mode | Single-mode | Single-mode | ||
Fiber type | G652D | G657A1 | G657A2 | |
(1310/1550nm) | (1310/1550nm) | (1310/1550nm) | ||
Attenuation | Typical | 0.36/0.22 | 0.36/0.22 | 0.36/0.22 |
Maximum | 0.5/0.4 | 0.5/0.4 | 0.5/0.4 | |
Mechanical and Environmental Performance of the FTTH Fiber Drop Optic Cable
Mechanical properties | Installation | Operation |
Tensile strength | 300N | 600N |
Min bend radius | 15mm | 30mm |
Crush resistance | 2000N/100mm | |
The mechanical properties of other optical fibers and cables shall meet international standards of IEC 60794. | ||
Fiber Optical Cable bending radius
Transportation temperature | -20℃~+60℃ |
Storage temperature | -20℃~+60℃ |
Installation temperature | -20℃~+60℃ |
Operation temperature | -20℃~+60℃ |
