Outdoor Multimode Fiber Optic Cable Black PE Jacket With Uni - Tube Gel - Filled Construction
Application : OUTDOOR
Certification : ISO9001/CE/ROHS
Color : Black Or OEM
Cable Diameter : 100M,OEM
Strength Member : OEM
Way : Portable
High Light : GYXTW Outdoor Fibre Cord, GYXTW Fiber Optic Optical Cable, 100M Outdoor Fibre Cord
GYXTW Outdoor Multimode Fiber Optic Cable Black PE Jacket With Uni - Tube Gel - Filled Construction
Description:
GYXTW Armored Uni-Tube Single Jacket/Single Armored cable is designed with the flexibility and versatility
required for today's most demanding installations, including direct buried.
The metallic armor is used when mechanical protection is desired.
Features:

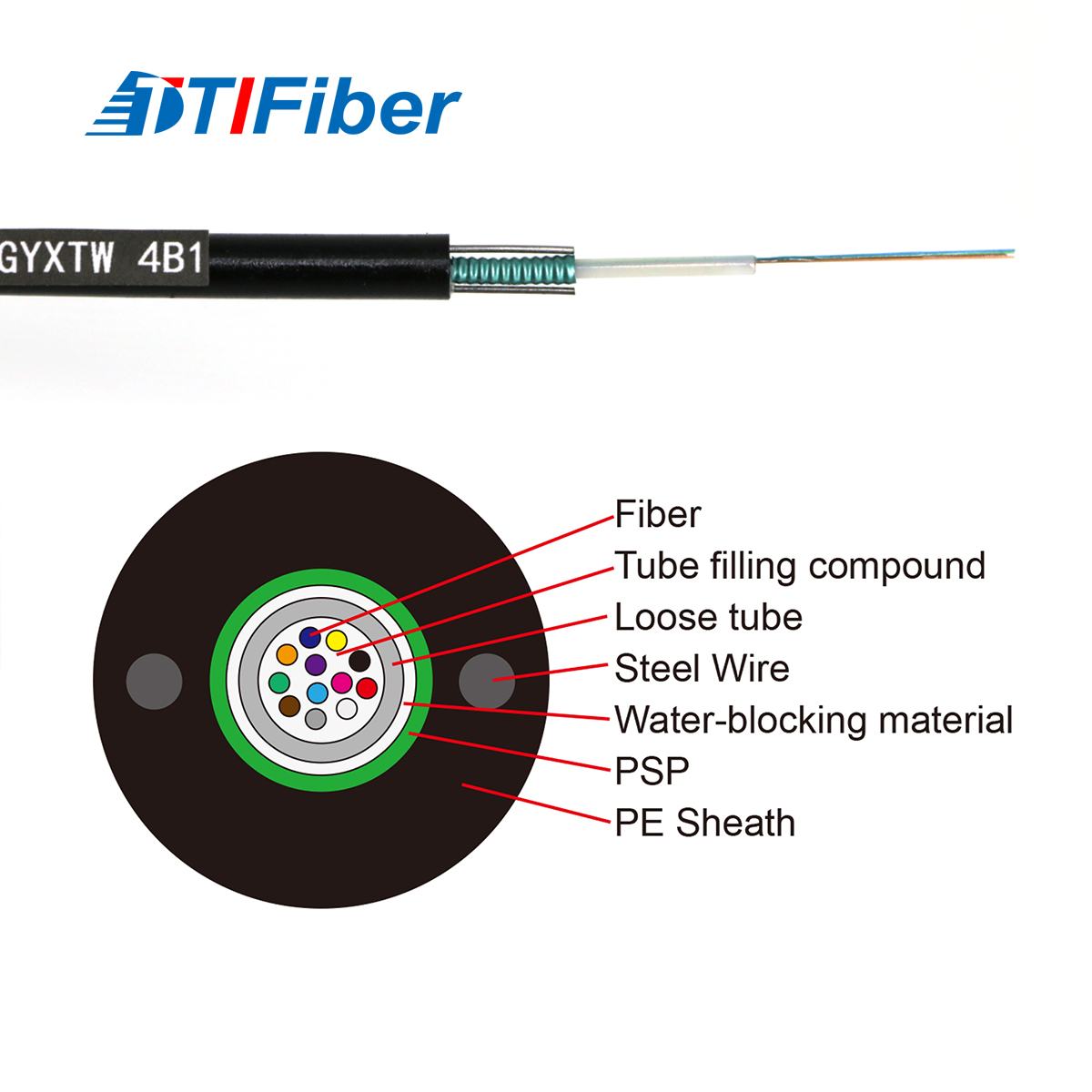

Uni-tube gel-filled construction for superior fiber protection.
Metallic armor to protect cable from rodent attack and mechanical damage.
Embedded steel wire provide desirable tensile strength and crush resistance.
Compact, easy to install.
UV and waterproof design.
Application:
Interbuilding voice or data communication.
Installed in duct, underground conduit.
FTTx/FTTH/FTTD
Specification:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Structure and Technical Specifications:
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Allowable Tensile Load (N) | Allowable Crush Resistance (N/100mm) | ||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 8.6 | 95 | 1500 | 600 | 1000 | 300 |
| 14~24 | 9.0 | 110 | 1500 | 600 | 1000 | 300 |
Note :
This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.

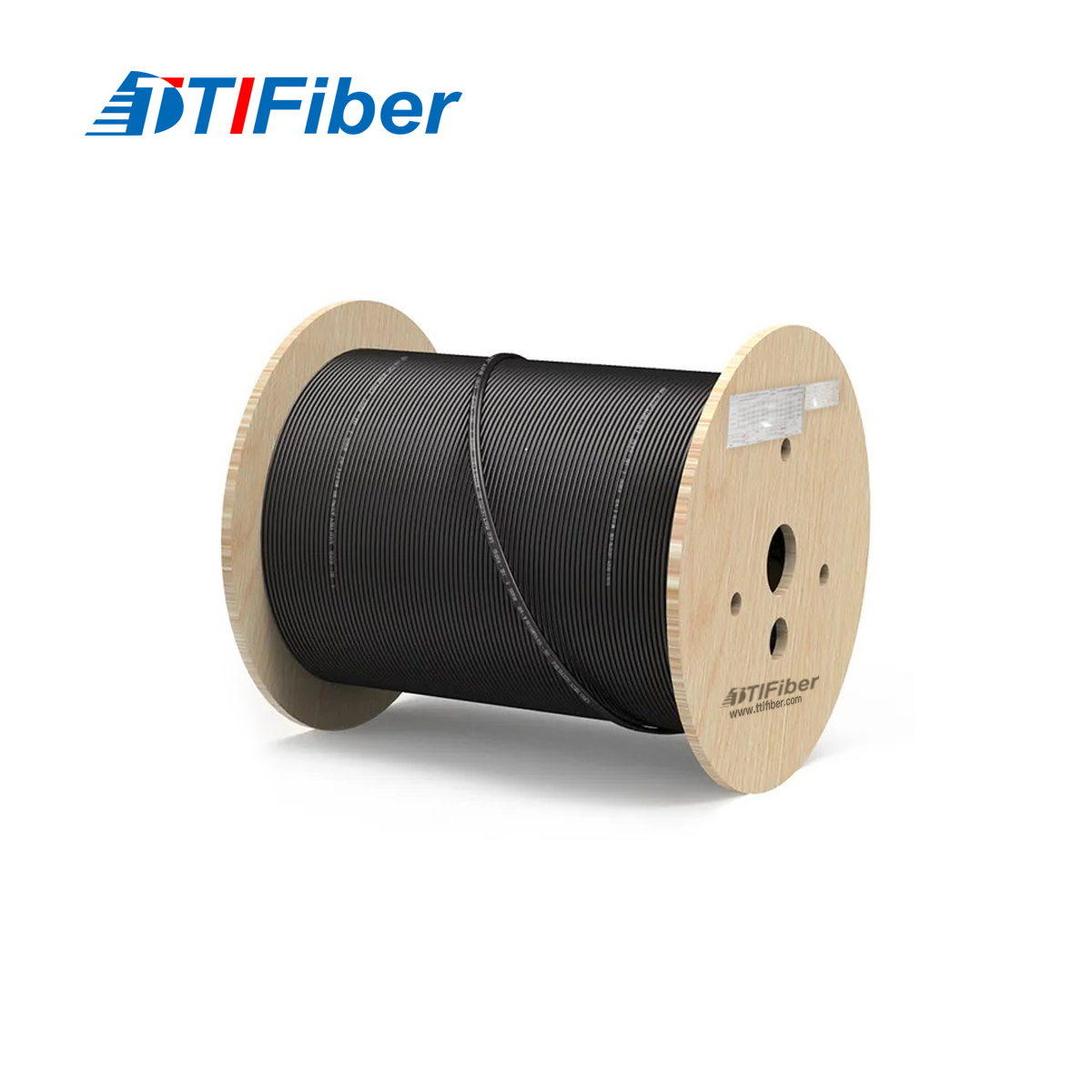

GYXTW Product Picture:
