FTTH access network IP 65 Dome fiber optic splicer for PLC Fiber Optic Splitter
Max Capacity : 144 core
Material : PC, ABS, MP
Color : Black, White, Grey
Port : 3 In, 3 Out
Size : 435*190*170mm
High Light : fiber optic enclosure, fiber splice enclosure
Dome Fiber Optic Closure for 1 : 32 PLC Fiber Optic Splitter
FTTH access network IP 65 Dome fiber optic splicer for PLC Fiber Optic Splitter
Description:
Vertical Fiber Optic Splice Closure provides space and protection for fiber optic cable splicing and joint.
Dome Fiber Splice Closures can be installed by pole mounted, wall mounted, aerial and direct buried application.
It can be divided into 2 types according to the sealing type: screw thread mechanical and heat shrinkable.
Feature:
Protection grade is IP 65 Closure
Cut cable uses"spinning type mechanical seal".
Uncut cable uses"direct pressure mechanical seal".
Vulcanized silicone seal ring can meet demands for Φ10~17.5 cable.
Installation Method: wall-mounted,pole mounting,aerial,pipe-lined,manhole.
Can be installed with one 1:32 or 2:32 passive splitter with Max 36 SC adaptors.
Application:
Widely used in FTTH access network
Aerial-hanging
Wall-mounting
Duct
Direct-bury
Specification:
| Type/Closure | FOSC-D001 | FOSC-D002 | FOSC-D003 | FOSC-D004 | FOSC-D005 | FOSC-D006 | |
| Size(mm) | Φ190*310 | Φ190*410 | Φ190*435 | Φ210*540 | Φ230*435 | Φ230*550 | |
| Cable diameter(mm) | Φ 8 – Φ 20 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 7 – Φ 22 | Φ 10 – Φ 22 | Φ 7 – Φ 22 | |
| Max splice tray(pcs) | 4 | 4 | 4 | 4 | 6 | 6 | |
| Max capacity(core) | 48 | 96 | 96 | 96 | 144 | 144 | |
| Cable port | 2 in, 2 out | 2 in, 2 out | 2 in, 2 out | 3 in, 3 out | 3 in, 3 out | 4 in, 4 out | |
| Sealing structure | Heat shrinkable | Screw thread mechanical | Heat shrinkable | Heat shrinkable | Screw thread mechanical | Heat shrinkable | |
| Weight(kg) | 1.9 | 2.5 | 2.4 | 3.5 | 3.2 | 2.7 | |

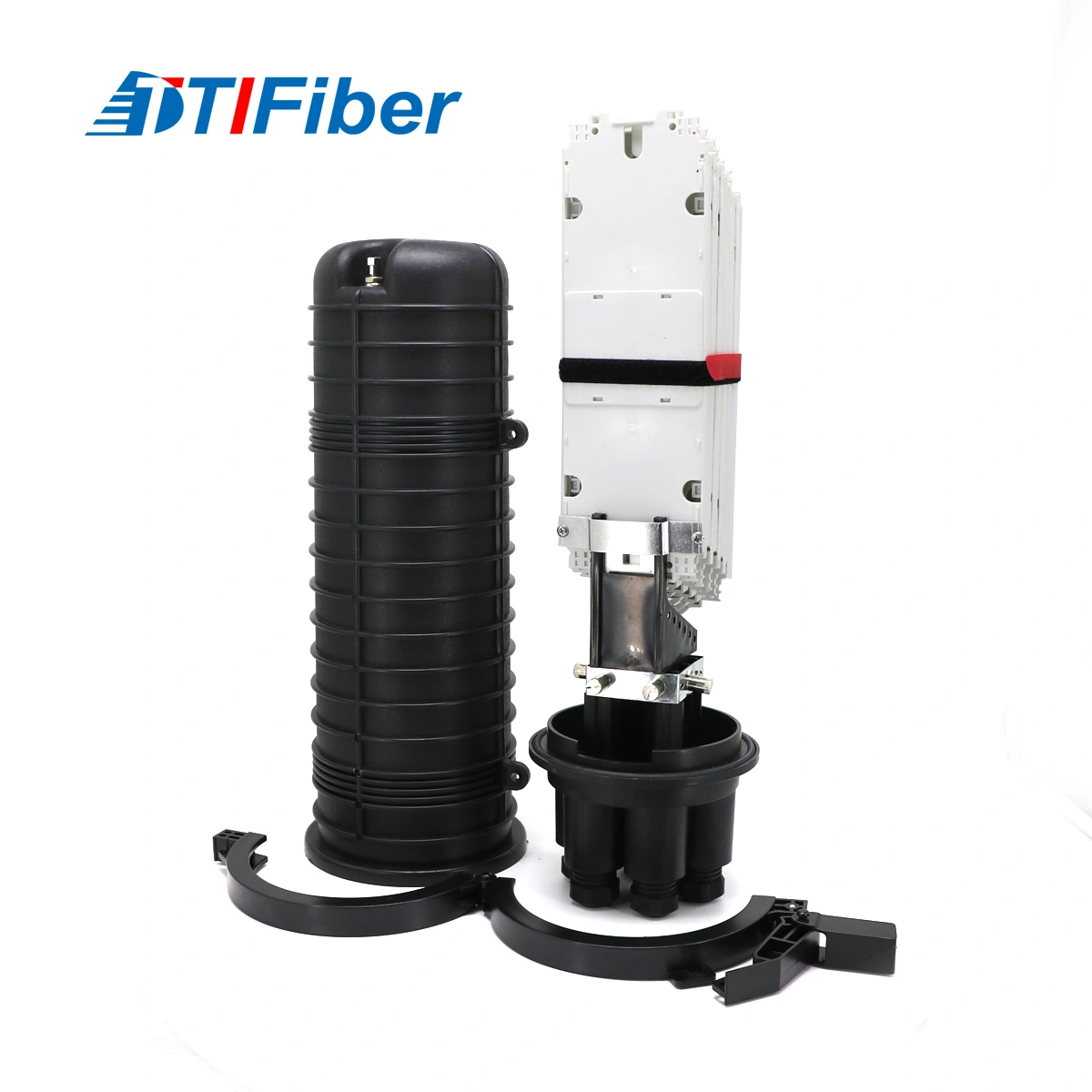

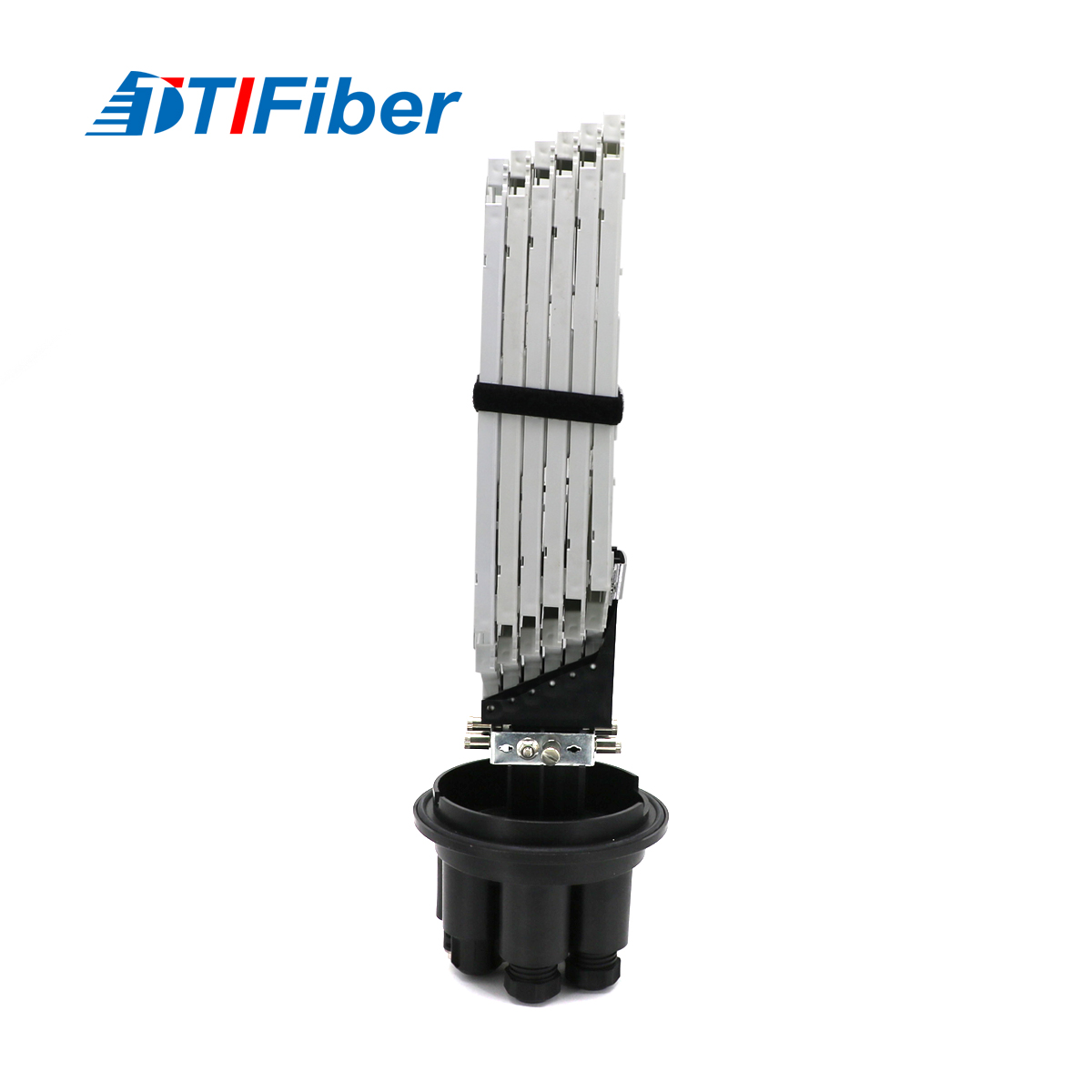

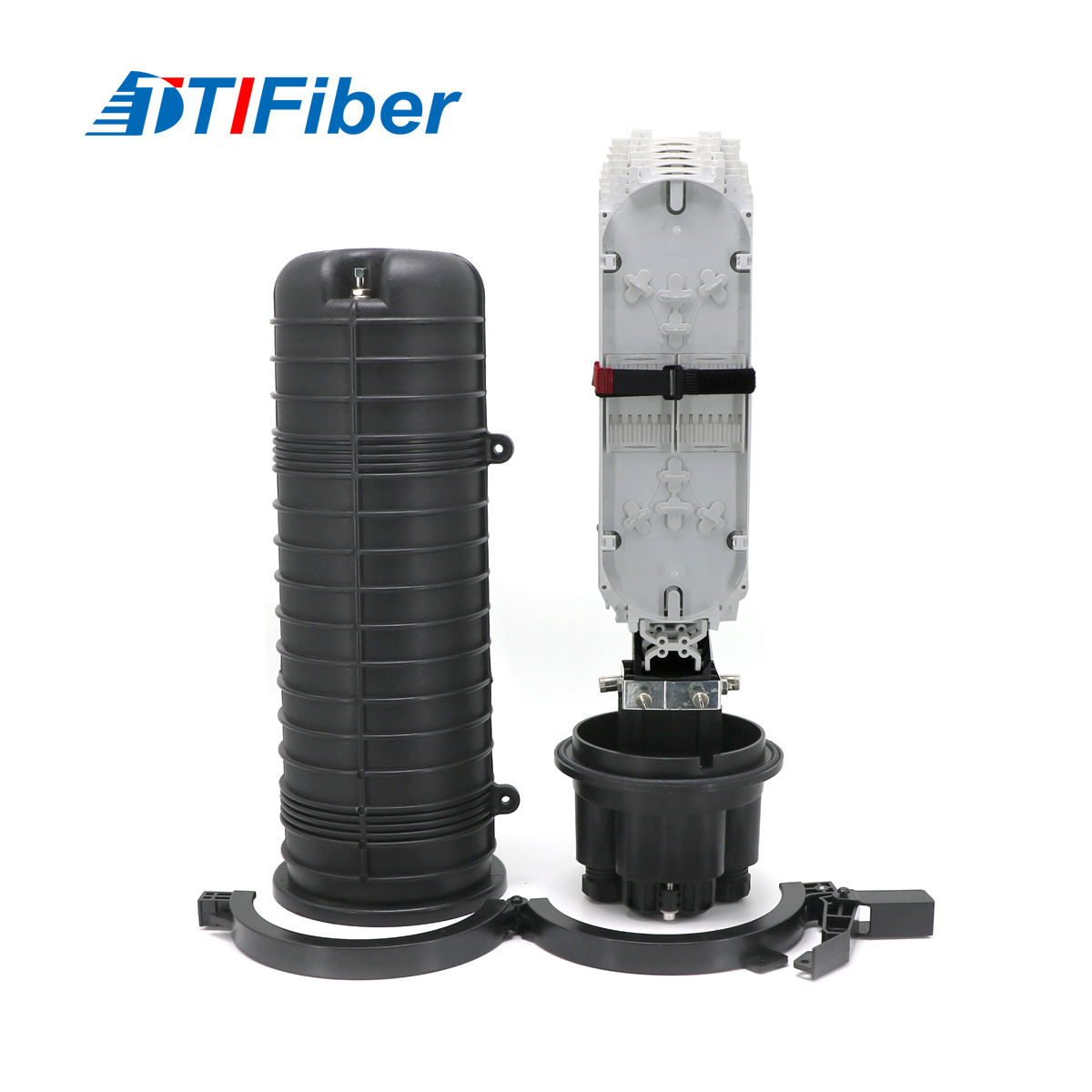

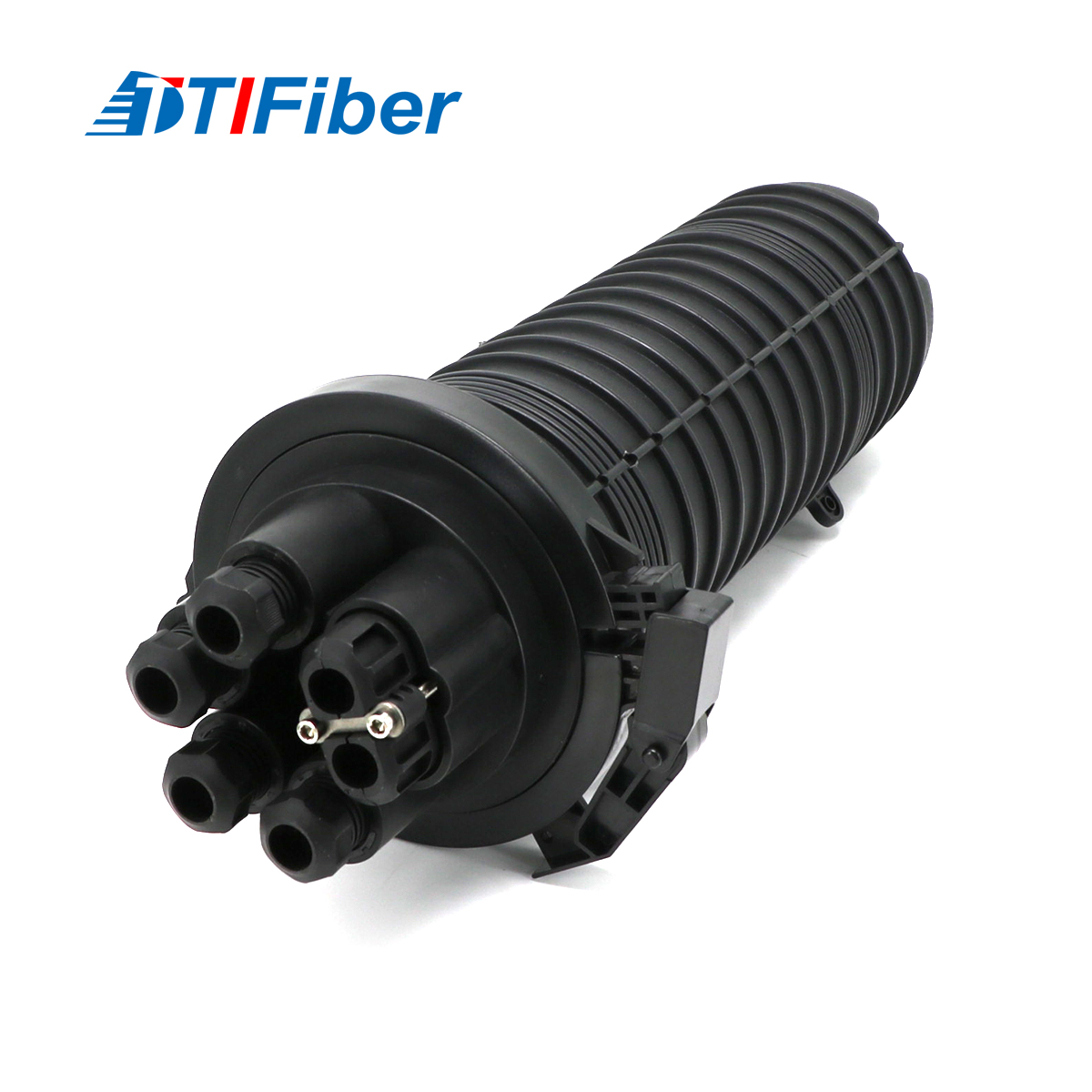

Fiber Optic Closure Picture:
