Model No: GYTS Fiber Optic Cable
OEM Singlemode Fiber Optic Cable With ISO9001 ROHS Certification
Product Name : GYTS Fiber Optic Cable
Application : Outdoor, Aerial, Duct
Certification : ISO9001/CE/ROHS
Color : Black Or OEM
Fiber Mode : Singlemode G652D G657A
Material : HDPE
High Light : Singlemode Fiber Optic Cable, OEM Fiber Optic Cable, OEM ftth cable
Application : Outdoor, Aerial, Duct
Certification : ISO9001/CE/ROHS
Color : Black Or OEM
Fiber Mode : Singlemode G652D G657A
Material : HDPE
High Light : Singlemode Fiber Optic Cable, OEM Fiber Optic Cable, OEM ftth cable
minimum order :
1000 meters
Quantity :
OEM Singlemode Fiber Optic Cable With ISO9001 ROHS Certification

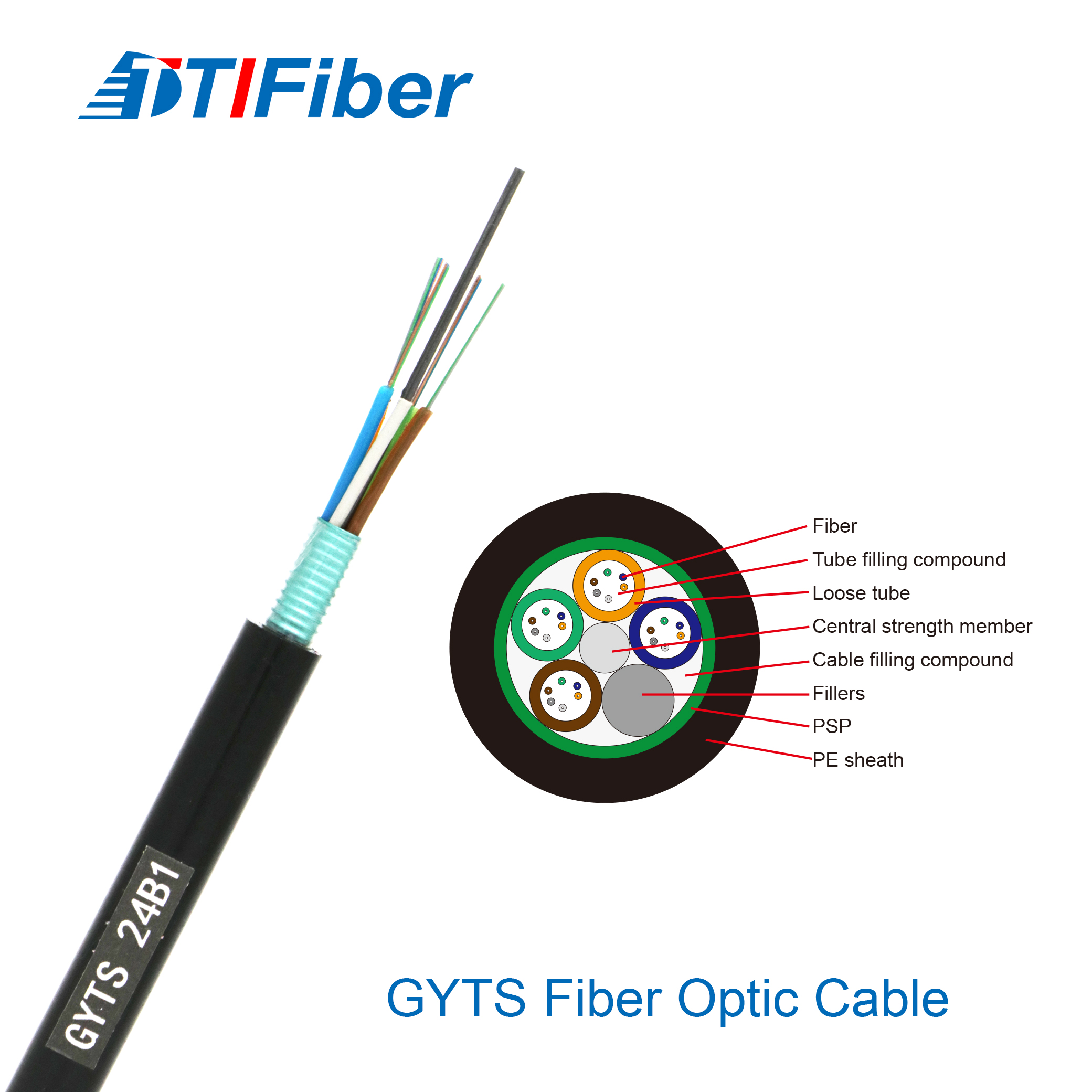

GYTS Outdoor Fiber Optic Cable Singlemode G652D
Stranded Loose Tube Corrugated Steel Tape Cable
Outdoor Fiber Optic Cable Single Mode Feature
Excellent mechanical and temperature performance
Special tube filling compound ensure a critical protection of fiber and resist the water.
Single steel wire as the central strength member to withstand axial loads.
PE sheath protects cable from ultraviolet radiation.
100% core filling water prevent cable jelly to ensure the cable watertight.
Corrugated steel tape longitudinal cover cable core and provide good crush resistance.
Fiber Optic Patchcord Singlemode Optical Characteristics
| Item | G.652 | G.655 | 50/125um | 62.5/125um | |||||||
| Attenuation | @850nm | ≤3.0dB/km | ≤3.2dB/km | ||||||||
| @1300nm | ≤1.0dB/km | ≤1.2dB/km | |||||||||
| @1310nm | ≤0.36dB/km | ≤0.40dB/km | |||||||||
| @1550nm | ≤0.22dB/km | ≤0.23dB/km | |||||||||
| Bandwidth (Class A) | @850nm | ≥500MHZ.km | ≥200MHZ.km | ||||||||
| @1300nm | ≥1000MHZ.km | ≥600MHZ.km | |||||||||
| Numerical aperture | 0.200±0.015NA | 0.275±0.015NA | |||||||||
| Cable cut-off wavelength | ≤1260mm | ≤1450mm | |||||||||
Singlemode Fiber Optic Patch Cables Technical Parameters
| Cable Type | Fiber Count | Tubes | Fillers | Cable Diamete rmm | Cable Weight kg/km | Tensile strength Long/Short term (N) | Crush resistance Long/Short term (N/100mm) | Bending radius Static/Dynamic (mm) | |||
| GYTS-2~6 | 2~6 | 1 | 4 | 9.0 | 100 | 600/1500 | 300/1000 | 10D/20D | |||
| GYTS-8~12 | 8~12 | 2 | 3 | 9.0 | 100 | 600/1500 | 300/1000 | 10D/20D | |||
| GYTS-14~18 | 14~18 | 3 | 2 | 9.0 | 100 | 600/1500 | 300/1000 | 10D/20D | |||
| GYTS-20~24 | 20~24 | 4 | 1 | 9.0 | 100 | 600/1500 | 300/1000 | 10D/20D | |||
| GYTS-26~30 | 26~30 | 5 | 0 | 9.0 | 100 | 600/1500 | 300/1000 | 10D/20D | |||
| GYTS-32~36 | 32~36 | 6 | 0 | 9.0 | 100 | 1000/3000 | 300/1000 | 10D/20D | |||
| GYTS-38~48 | 38~48 | 4 | 1 | 9.0 | 100 | 1000/3000 | 300/1000 | 10D/20D | |||
| GYTS-50~60 | 50~60 | 5 | 0 | 9.0 | 100 | 1000/3000 | 300/1000 | 10D/20D | |||
| GYTS-62~72 | 62~72 | 6 | 0 | 9.0 | 100 | 1000/3000 | 300/1000 | 10D/20D | |||
| GYTS-86~96 | 86~96 | 8 | 0 | 13.5 | 192 | 1000/3000 | 300/1000 | 10D/20D | |||
| GYTS-134~144 | 134~144 | 12 | 0 | 16.9 | 227 | 1000/3000 | 300/1000 | 10D/20D | |||
| GYTS-204~216 | 204~216 | 18 | 0 | 16.9 | 240 | 1000/3000 | 300/1000 | 10D/20D | |||
Environmental characteristics
| Operating temperature | -40~+70℃ | ||||||||||
| Storage temperature | -40~+70℃ | ||||||||||
GYTS Outdoor Fiber Optic Cable Standards
Comply with standard YD / T 901, IEC 60794-1 and other standards.
