Model No: GYXTW Cable

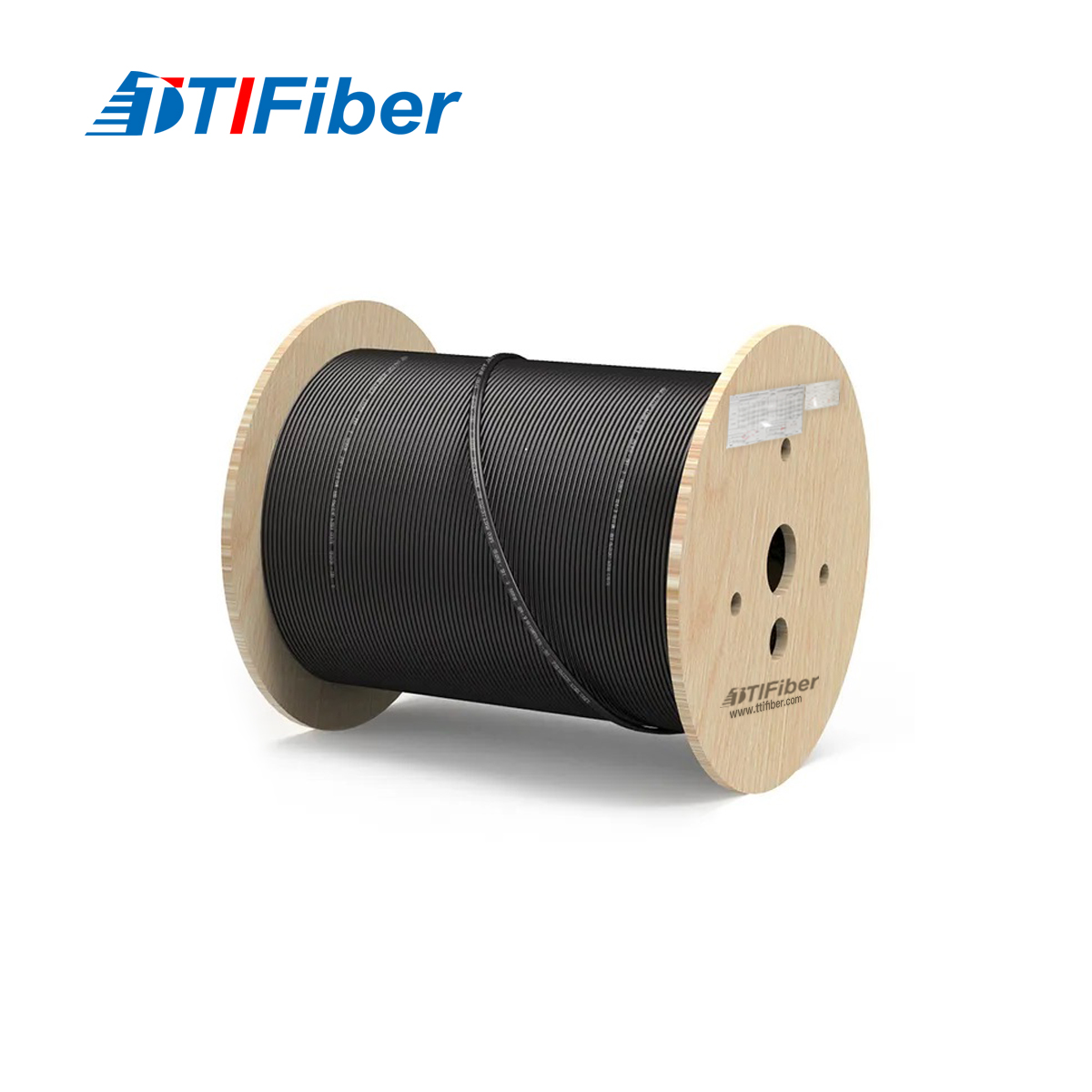

GYXTW Outdoor Fibre Cord 12 Core Single Mode Fiber Optic Optical Cable
Product Name : Unitube Light-armored Cable GYXTW
Application : OUTDOOR
Certification : ISO9001/CE/ROHS
Color : Black Or OEM
Cable Diameter : 100M,OEM
Strength Member : OEM
Way : Portable
High Light : GYXTW Outdoor Fibre Cord, GYXTW Fiber Optic Optical Cable, 100M Outdoor Fibre Cord
Application : OUTDOOR
Certification : ISO9001/CE/ROHS
Color : Black Or OEM
Cable Diameter : 100M,OEM
Strength Member : OEM
Way : Portable
High Light : GYXTW Outdoor Fibre Cord, GYXTW Fiber Optic Optical Cable, 100M Outdoor Fibre Cord
minimum order :
1000 meters
Quantity :
GYXTW Outdoor Fibre Cord 12 Core Single Mode Fiber Optic Optical Cable
Product Description

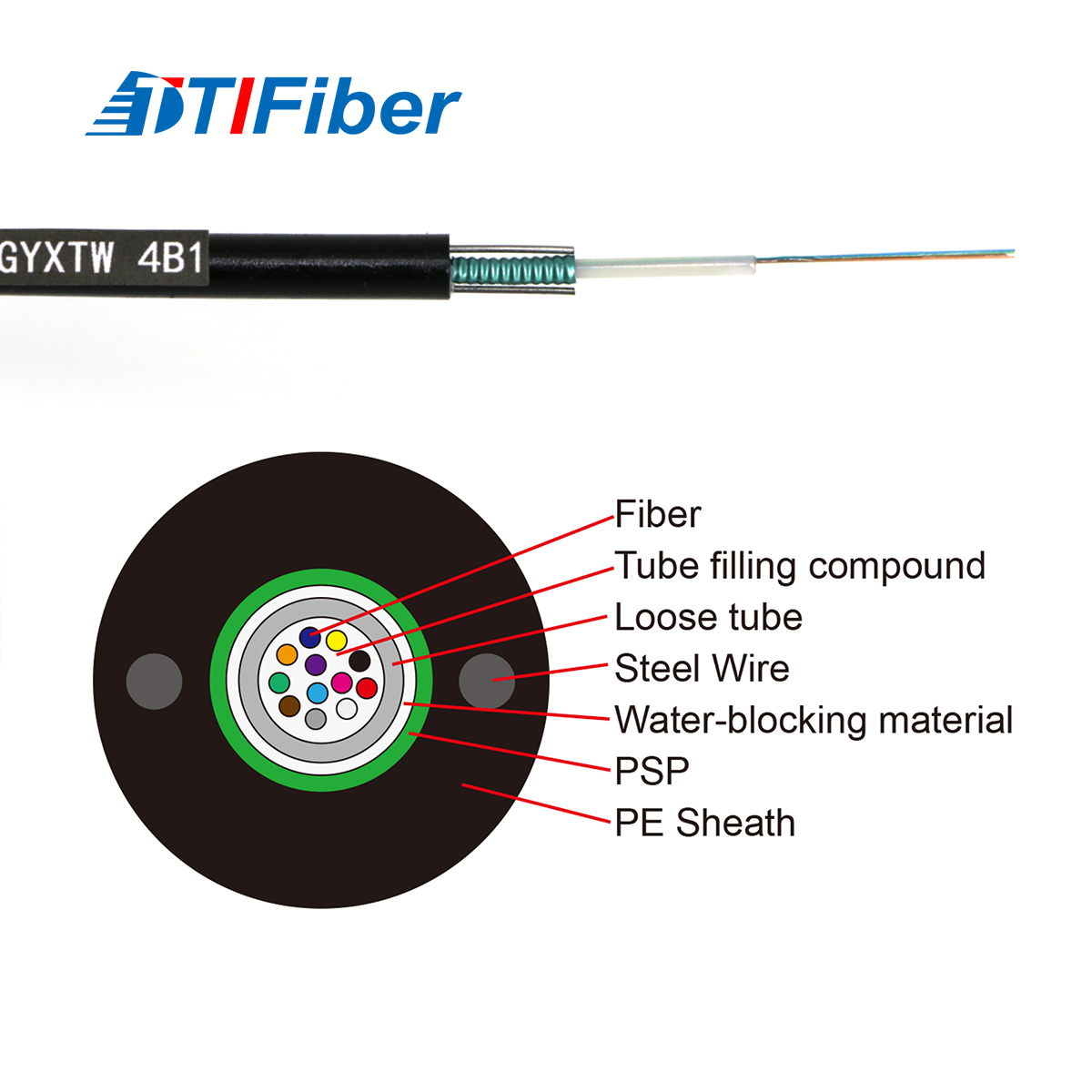

GYXTW Cable Description
The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP
and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two
parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the
two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features for gyxtw fiber cable
1). Good mechanical and temperature performance
2). High strength loose tube that is hydrolysis resistant
3). Special tube filling compound ensure a critical protection of fiber
4). Crush resistance and flexibility
5). PSP enhancing moisture-proof
6). Two parallel steel wires ensure tensile strength
7). Small diameter, light weight and friendly installation
8). Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Duct / Aerial
GYXTW Cable Description
The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP
and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two
parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the
two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features for gyxtw fiber cable
1). Good mechanical and temperature performance
2). High strength loose tube that is hydrolysis resistant
3). Special tube filling compound ensure a critical protection of fiber
4). Crush resistance and flexibility
5). PSP enhancing moisture-proof
6). Two parallel steel wires ensure tensile strength
7). Small diameter, light weight and friendly installation
8). Storage / Operating Temperature: -40℃~+70℃
Application
Usable in Duct / Aerial
Parameter:
No. | Items | Unit | Specification | |
G.652D | ||||
1 | 1310nm | μm | 9.2±0.4 | |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.24 | ||
Cable Parameters
Items | Specifications | |
Fiber Count | 2~24 | |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue, Orange, Green, Brown, Gray, White | |
Loose Tube | Dimension | 2.10mm±0.05mm |
Material | PBT | |
Color | Natural | |
Strength Member | Diameter | 1.0mm |
Material | Steel | |
Outer Jacket | Dimension | 8.0mm±0.1mm |
Material | PE | |
Color | Black | |
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tensio (Long Term) | N | 600 |
Tension (Short Term) | N | 1500 |
Crush (Long Term) | N/10cm | 300 |
Crush (Short Term) | N/10cm | 1000 |
Min. Bend Radius (Dynamic) | mm | 20D |
Min. Bend Radius (Static) | mm | 10D |
Installation Temperature | ℃ | -20~+60 |
Operating Temperature | ℃ | -40~+70 |
Storage Temperature | ℃ | -40~+70 |
GYXTW Cable Pictures:
