2 4 6 8 12 24 48 96 144 Cores Central Tube Steel Tape Armor Fiber Optic Cable
Application : Duct Or Aerial
Strength Member : OEM
Material : High Quality Materials
Package : 1KM/2KM Per Wooden Drum, Or Other Required Lengths
Fiber Type : Simplex And Duplex, G652D, G655, Anything, SM Or MM
Fiber Count : 2 Core, 2/4/6/8/12 Core, 1-144 Core, 1 Cores, 1/2/4 Core
High Light : Armored Fiber Optic Cable, Fiber Optical Cable
Specification
Description
The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP
and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel
steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides
tape. The cable is completed with a polyethylene (PE) sheath.
Armored Fiber Features
1). Good mechanical and temperature performance
2). High strength loose tube that is hydrolysis resistant
3). Special tube filling compound ensure a critical protection of fiber
4). Crush resistance and flexibility
5). PSP enhancing moisture-proof
6). Two parallel steel wires ensure tensile strength
7). Small diameter, light weight and friendly installation
8). Storage / Operating Temperature: -40℃~+70℃
Application
Usable for Duct or Aerial
Parameter:
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dB/km | ≤0.24 | ||
Items | Specifications | |
Fiber Count | 2~24 | |
Colored Coating Fiber | Dimension | 250µm±15µm |
Color | Blue, Orange, Green, Brown, Gray, White | |
Loose Tube | Dimension | 2.10mm±0.05mm |
Material | PBT | |
Color | Natural | |
Strength Member | Diameter | 1.0mm |
Material | Steel | |
Outer Jacket | Dimension | 8.0mm±0.1mm |
Material | PE | |
Color | Black | |
Name | Outdoor Fiber Optic Cable GYTA 53 |
With | PE, LSZH |
From | TTI Fiber Factory |
Certification | ISO9001 |

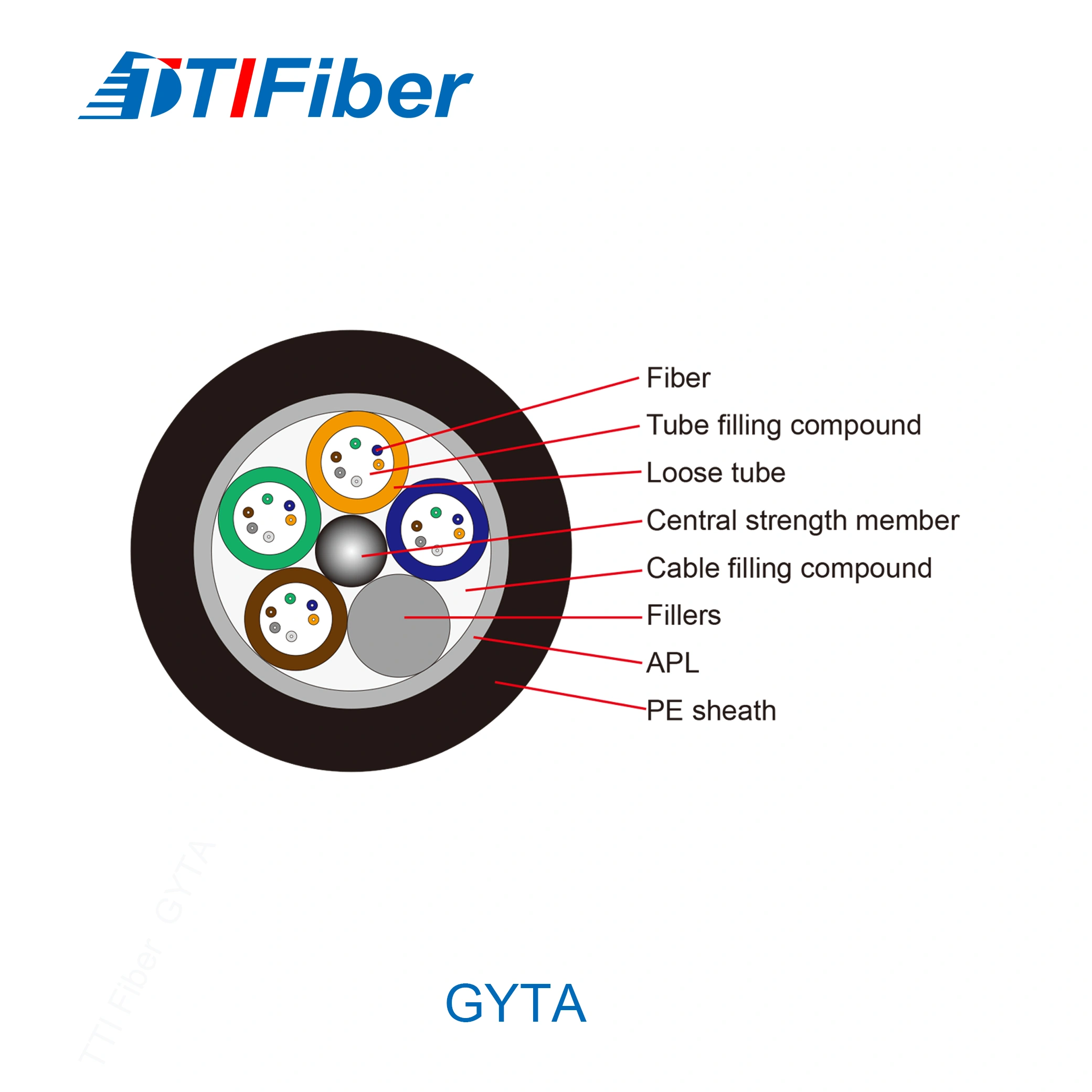

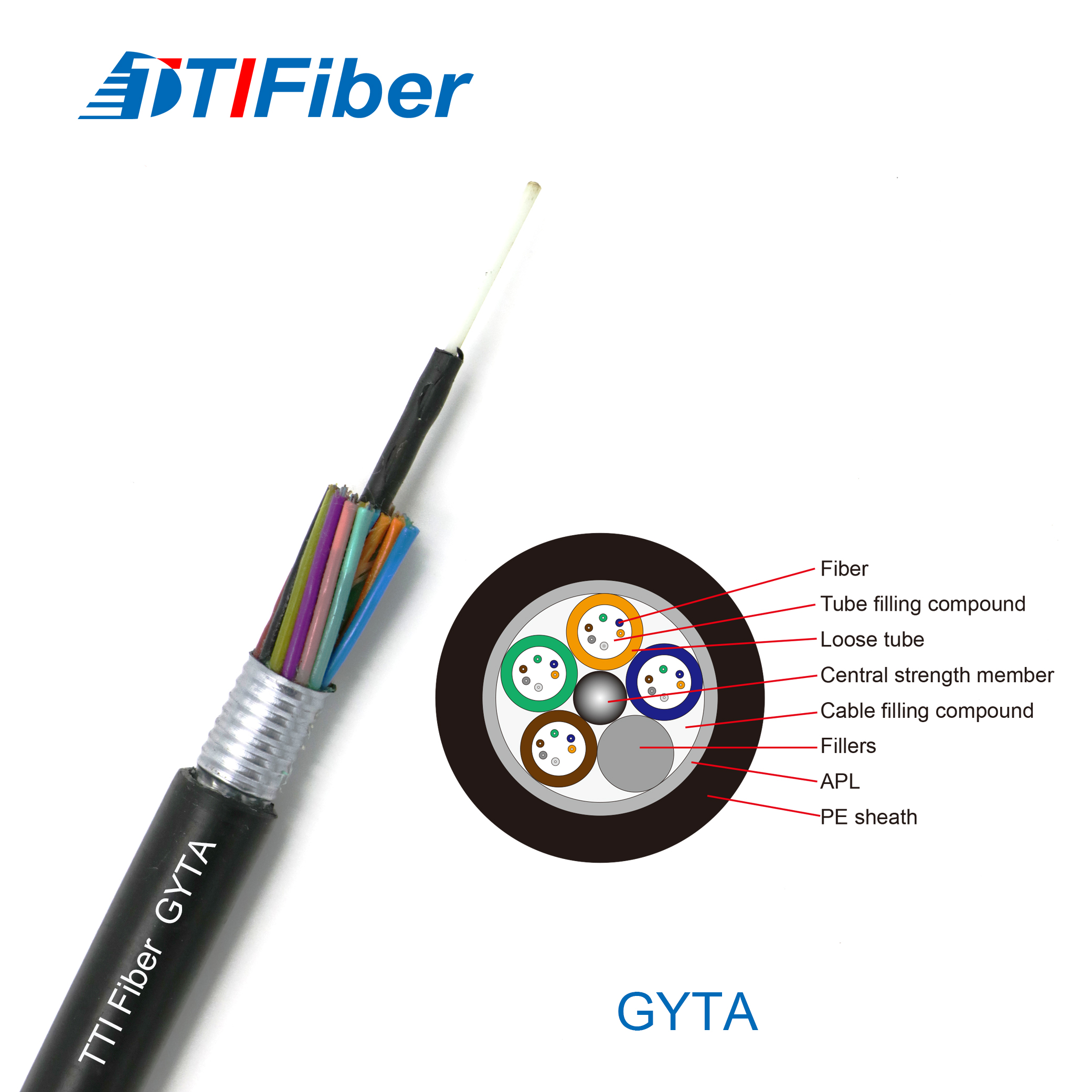

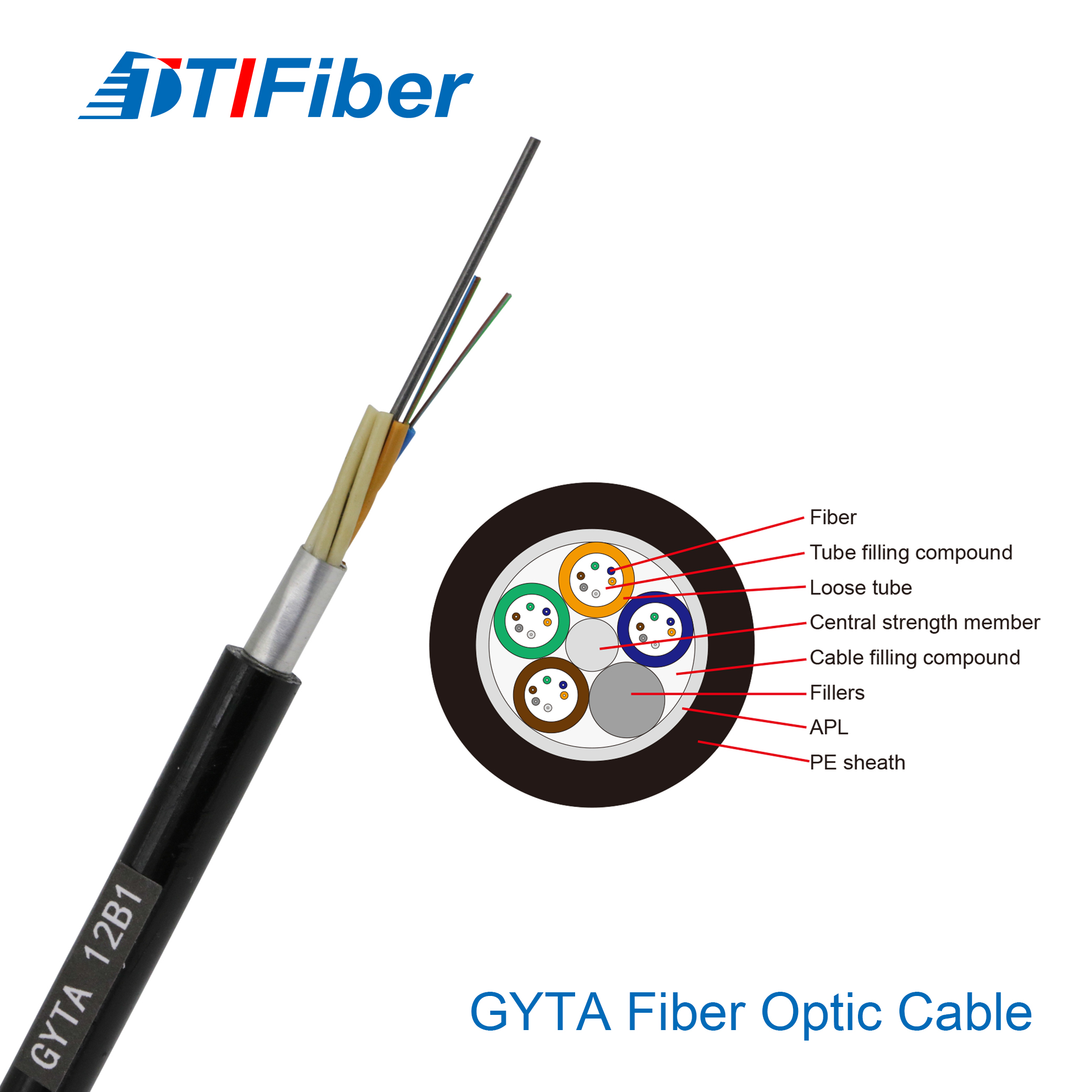

GTYA Pictures:
