sc to sc multimode fiber patch cable
Model No: SC

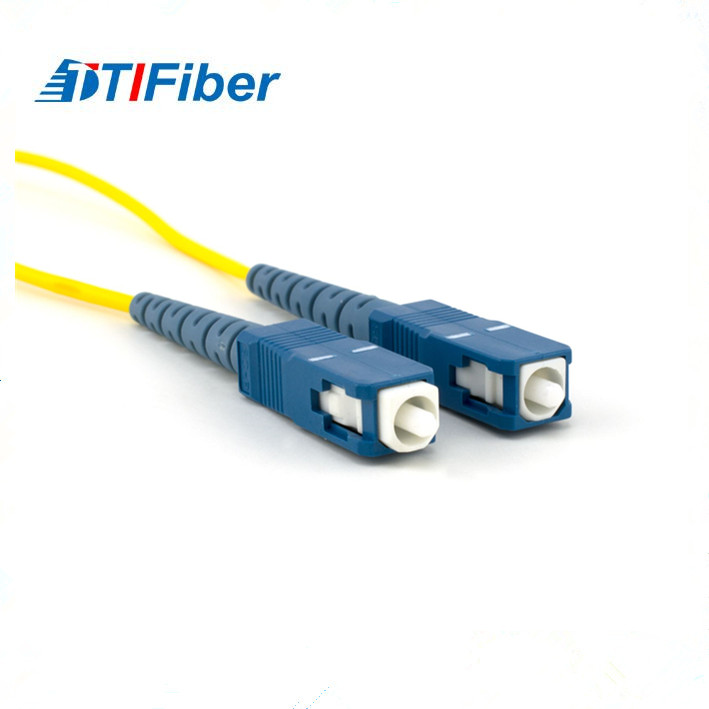

2m SC to SC singlemode 9/125 simplex fiber optic patch cable

SC SC fiber optic patch cords are mainly divided into two categories.
1. Single-mode fiber: SC-SC single-mode fiber jumper is generally indicated in yellow, with blue connectors and protective sleeves; the transmission distance is longer.
2. Multi-mode Fiber: SC-SC multimode fiber patch cords are generally represented in orange, some in grey, with beige or black connectors and protective sleeves; the transmission distance is shorter.
Delivery :
FOB
minimum order :
1 piece
Supply Ability :
5000piece / Day
Country of Origin :
Shenzhen
Quantity :
add to cart
Contact Now
SC SC fiber optic patch cords
SC SC fiber optic patch cords are used for terminating jumpers from equipment to fibre optic cabling links.
With a thicker protective layer, SC-SC fibre optic patch cords are generally used for the connection between
the optical terminal and the termination box.

Sc Sc Single Mode Patch Cord are mainly divided into two categories.
1. Single-mode fiber: SC-SC single-mode fiber jumper is generally indicated in yellow, with blue connectors
and protective sleeves; the transmission distance is longer.
2. Multi-mode Fiber: SC-SC multi-mode fiber optic patch cords are generally orange, some are gray, with
beige or black connectors and protective sleeves; the transmission distance is shorter.

sc to sc multimode fiber patch cable product features
1、Three types of end-grinding: PC, UPC, APC
2、Number of cores: single-core, multi-core
3、connectors: LC (small square port), SC (large square port), FC (round port), ST (bayonet), etc.
4、Configuration: SC-SC, SC-LC, SC-ST, SC-FC, etc.
5、Mechanical durability 500 times
6、outer sheath material has PVC, LSZH and other materials to choose

SC SC fiber optic patch cord features.
1、Low insertion loss.
2、good repeatability.
3、Large return loss.
4、good interpolation performance.
5、good temperature stability.
6、strong tensile performance.

SC SC fiber optic patch cord applications.
1、Fiber optic communication system.
2、Fiber optic access network.
3、Fiber optic data transmission.
4、Fiber optic CATV.
5、Local Area Network (LAN).
6、test equipment.
7、Fiber optic sensors.


Description:

Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection

tube which saves space and is quite convenient for maintenance. Also it has the construction including s

tainless steel tube which protects optical fiber and provide better security for the whole system.

Specification:

ItemSingle mode
Ferrule End-facePCUPCAPC
Insert attenuation≤0.3dB≤0.3dB≤0.3dB
Return loss≥45dB≥50dB≥55dB
repeatability≤0.1dB≤0.1dB≤0.1dB
Operation temperature-20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU)
Outer diameter1.6mm

sc sc fiber optic
