sc fiber patch cable
fiber optic patch cable
Model No: SC

SC to SC fiber optic patch cable cable cheap price

Connector Type : SC To SC

Fiber Type : Singlemode

Cable Type : Simplex

Cable OD : 2.0mm 3.0mm

Cable Jacket : PVC outer jacket

Durability : > 1000 times

Operating Temperature : -40°C ~ +85°C

Mode: OM3, OM4
minimum order :
1000 pieces
Quantity :
add to cart
Contact Now
SC to SC Fiber Optic Patch Cable Cable Cheap Price
Quick Details:
  • Type: Armoured patch cord
  • Cable core: Simplex, Duplex
  • Mode: OM3, OM4
  • Ferrule End-face: PC, UPC
  • Cable diameter:2.0mm, 3.0mm
  • Cable length: 1m, 2m, 3m….customized

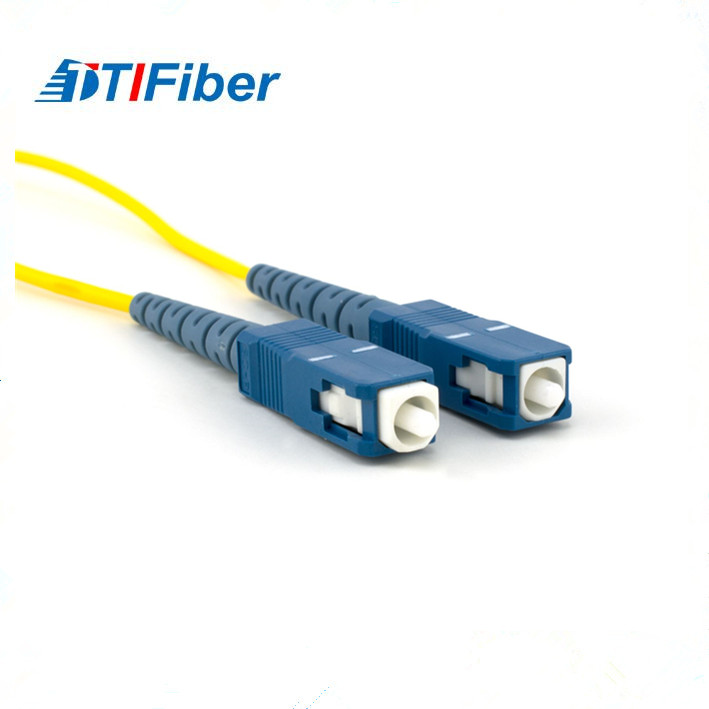

fiber optic patch cable cable

Sc to Sc Fiber Patch Cable Specification:
Fiber Connector Performance Specification:

Connector TypeFC, SC, LC, ST, MU, MTRJ
Fiber TypeSM(G.652D/G.657A)MM(OM1/OM2/OM3/OM4)
Ferrule End-facePCUPCAPCUPC
Insertion Loss≤0.2dB≤0.2dB≤0.3dB≤0.3bB
Return Loss≥50dB≥55dB≥60dB≥35dB
Exchangeability≤0.2dB
Repeatability≤ 0.1dB(1000 times)
Durability> 1000 times
Operating Temperature-40°C ~ +85°C


SC Fiber Optic Patch Performance Specification:

Fiber typeMin. BandwidthDistanceAttenuation
62.5/125850/1300nm
200/500 MHz/Km		@100Mbps 2km @1Gig 220m850/1300nm
3.0/1.0dB/km
50/125850/1300nm
500/500 MHz/Km		@100Mbps 2km @1Gig 500m850/1300nm
3.0/1.0dB/km
50/125
10Gig Optimized		850/1300nm
2000/500 MHz/Km		@100Gig Varies by VCSEL typical 300m 2850nm850/1300nm
3.0/1.0dB/km
9/1251310/1550nm
Approx 100 Terahertz		Up to 100km Varies by transceiver1310/1550nm
0.4/0.3dB/km

Description:

Armored patch cord can be laid in all kinds of environmental extremes. It is used without protection tube which
saves space and is quite convenient for maintenance. Also it has the construction including stainless steel tube
which protects optical fiber and provide better security for the whole system.

Features:

  1. High tensile coefficient and stress coefficient
  2. Convenient for application, highly security
  3. Application without damage to cable
  4. Manufacture without damage to cable
  5. Cost cutting for maintenance

Applications:

  1. FTTH
  2. Area network
  3. Test equipment
  4. National defense
  5. Common antenna TV system
