Simplex Fiber Optic Patch Cord with SC UPC,3.0mm PVC Outer Jacket
Fiber Type : Singlemode
Cable Type : Simplex
Cable OD : 3.0mm
Cable Jacket : PVC Outer Jacket
Cable Color : Yellow Or Customized
Ferrule End-face : UPC
Cable Length : 1M,2M Or Customized
High Light : fiber optic jumper, fiber optic cable patch cord
Simplex Fiber Optic Patch Cord with SC UPC,3.0mm PVC Outer Jacket
Description:
For standard fiber patch cords, sampling check is performed on ferrule geometry to ensure high percentage of
polished connectors meeting GR-326 requirements.
For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.Other than
standard single mode and multimode fibers, G655, OM2, and OM3 fibers are alsoavailable upon request. Flame
retardant grade cable sheathing options are offered. Riser rated cable will be provided as standard. LSZH and
Plenum can be provided upon request.
Sc Fiber Optic Patch Cord Features:
Low insertion loss High back reflection loss
Excellent mechanical endurance
High credibility and stability
Good in repeatability and exchangeability
Application:
Gigabit Ethernet
Optical access network
Data processing networks
Fiber optic communication networks
Specification:
Simplex Fiber Optic Patch Cord Connector Performance Specification:
Connector Type | FC, SC, LC, ST, MU, MTRJ | |||
Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) | ||
Ferrule End-face | PC | UPC | APC | UPC |
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
Exchangeability | ≤0.2dB | |||
Repeatability | ≤ 0.1dB(1000 times) | |||
Durability | > 1000 times | |||
Operating Temperature | -40°C ~ +85°C | |||
Fiber Optic Cable Performance Specification:
Fiber type | Min. Bandwidth | Distance | Attenuation |
62.5/125 | 850/1300nm | @100Mbps 2km @1Gig 220m | 850/1300nm |
50/125 | 850/1300nm | @100Mbps 2km @1Gig 500m | 850/1300nm |
50/125 | 850/1300nm | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm |
9/125 | 1310/1550nm | Up to 100km Varies by transceiver | 1310/1550nm |
Order Information:
| SC/UPC-SC/UPC-MM-DX-3.0mm-5M | ||||||||||||||||
SC | / | UPC | — | SC | / | UPC | / | SM | — | SX | / | 3.0 | — | 5M | ||
1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
1 | Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. | |||||||||||||||
2 | Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) | |||||||||||||||
3 | Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. | |||||||||||||||
4 | Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 | |||||||||||||||
5 | Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... | |||||||||||||||
6 | Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | |||||||||||||||
7 | Cable Length: 3m(Length in meter) | |||||||||||||||

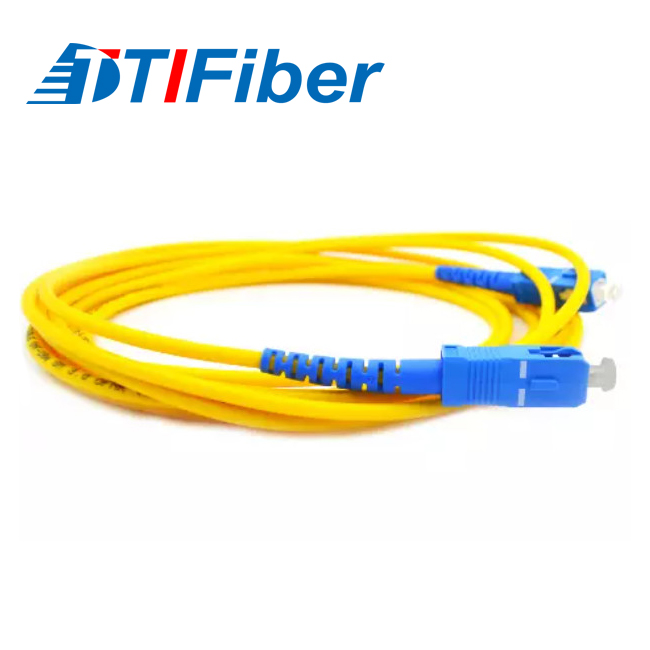

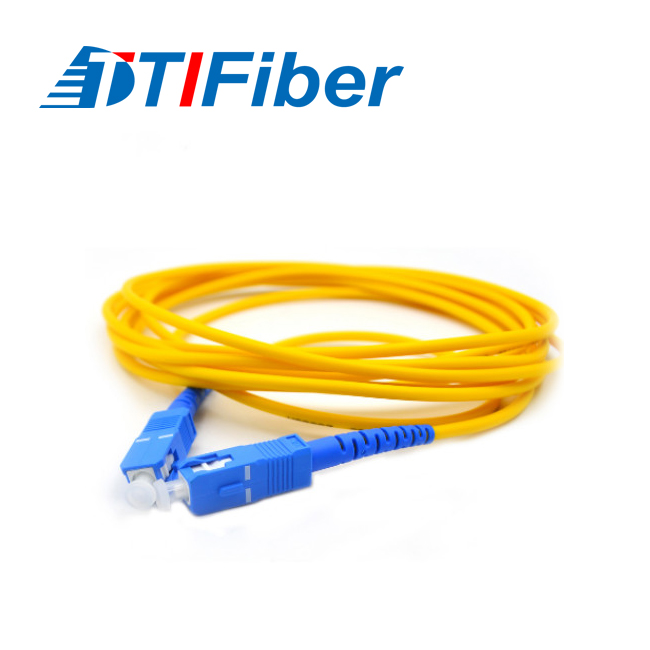

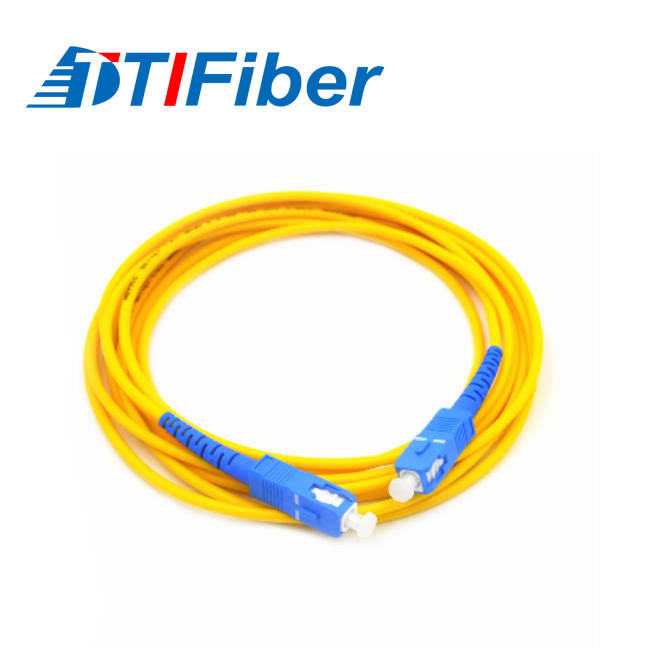

Product Picture:
