SM MM SC Apc Patch Cord Single Mode Multimode Simplex Duplex
Fiber Type : Singlemode
Cable Type : Simplex
Cable OD : 3.0mm
Cable Jacket : PVC
Outer Jacket : Cable Color Yellow Or Customized
High Light : Single Mode Sc Apc Patch Cord, Duplex multimode patch cord, Sc Apc Patch Cord Multimode
SM MM SC Apc Patch Cord Single Mode Multimode Simplex Duplex
Description:
The LC fiber connectors used in fiber optic patch cords are designed to LC standards with high quality zirconia
ferrules and non-optical disconnect performance.They are fully compatible with existing LC hardware.In addition
to basic testing, some mechanical and environmental tests per IEC or Telcordia are also performed periodically
to guarantee the best quality SM MM SC Apc Patch Cord.
Features:
Push-pull latching mechanism
Non-optical disconnect performance
High quality zirconia ferrules
Materials meet RoHS requirements
Riser, Plenum, PVC, LSZH fiber cables available
Application:
Telecommunication
Computer networks
CATV networks
Active device termination
Instrumentation
SM MM SC Apc Patch Cord
Specification:
Fiber Connector Performance Specification:
| Connector Type/Patch Cord | FC, SC, LC, ST, MU, MTRJ/Patch Cord | |||
| Fiber Type | SM(G.652D/G.657A) | MM(OM1/OM2/OM3/OM4) | ||
| Ferrule End-face | PC | UPC | APC | UPC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3bB |
| Return Loss | ≥50dB | ≥55dB | ≥60dB | ≥35dB |
| Exchangeability | ≤0.2dB | |||
| Repeatability | ≤ 0.1dB(1000 times) | |||
| Durability | > 1000 times | |||
| Operating Temperature | -40°C ~ +85°C | |||
Fiber Cable Performance Specification:
| Fiber type | Min. Bandwidth | Distance | Attenuation |
| 62.5/125 | 850/1300nm 200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm 3.0/1.0dB/km |
| 50/125 | 850/1300nm 500/500 MHz/Km | 850/1300nm 3.0/1.0dB/km | |
| 50/125 10Gig Optimized | 850/1300nm 2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm 3.0/1.0dB/km |
| 9/125 | 1310/1550nm Approx 100 Terahertz | Up to 100km Varies by transceiver | 1310/1550nm 0.4/0.3dB/km |
Order Information:
| LC/UPC-FC/UPC-SM-SX-3.0mm-1M / Patch Cord | ||||||||||||||||
| LC | / | UPC | — | FC | / | UPC | / | SM | — | SX | / | 2.0 | — | 3M | ||
| 1 | 2 | 3 | 2 | 4 | 5 | 6 | 7 | |||||||||
| 1 | Connector#1: LC,SC,FC,ST,DIN,D4,MU,MTRJ,etc. | |||||||||||||||
| 2 | Lapping Way: UPC&APC (For MTRJ, F=Female, M=Male) | |||||||||||||||
| 3 | Connector#2: LC,SC,FC,ST,DIN,D4,MU,MTRJ,Pigtail,etc. | |||||||||||||||
| 4 | Cable Type: SM(9/125μm) ,MM(50/125μm & 62.5/125μm), OM3, OM4 | |||||||||||||||
| 5 | Fiber Number: SX(Simplex) or DX(Duplex), 2/4/6/8 core... | |||||||||||||||
| 6 | Cable Diameter: 2.0=Ø2.0mm, 3.0=Ø3.0mm, 0.9=Ø0.9mm, etc. | |||||||||||||||
| 7 | Cable Length: 3m(Length in meter) | |||||||||||||||

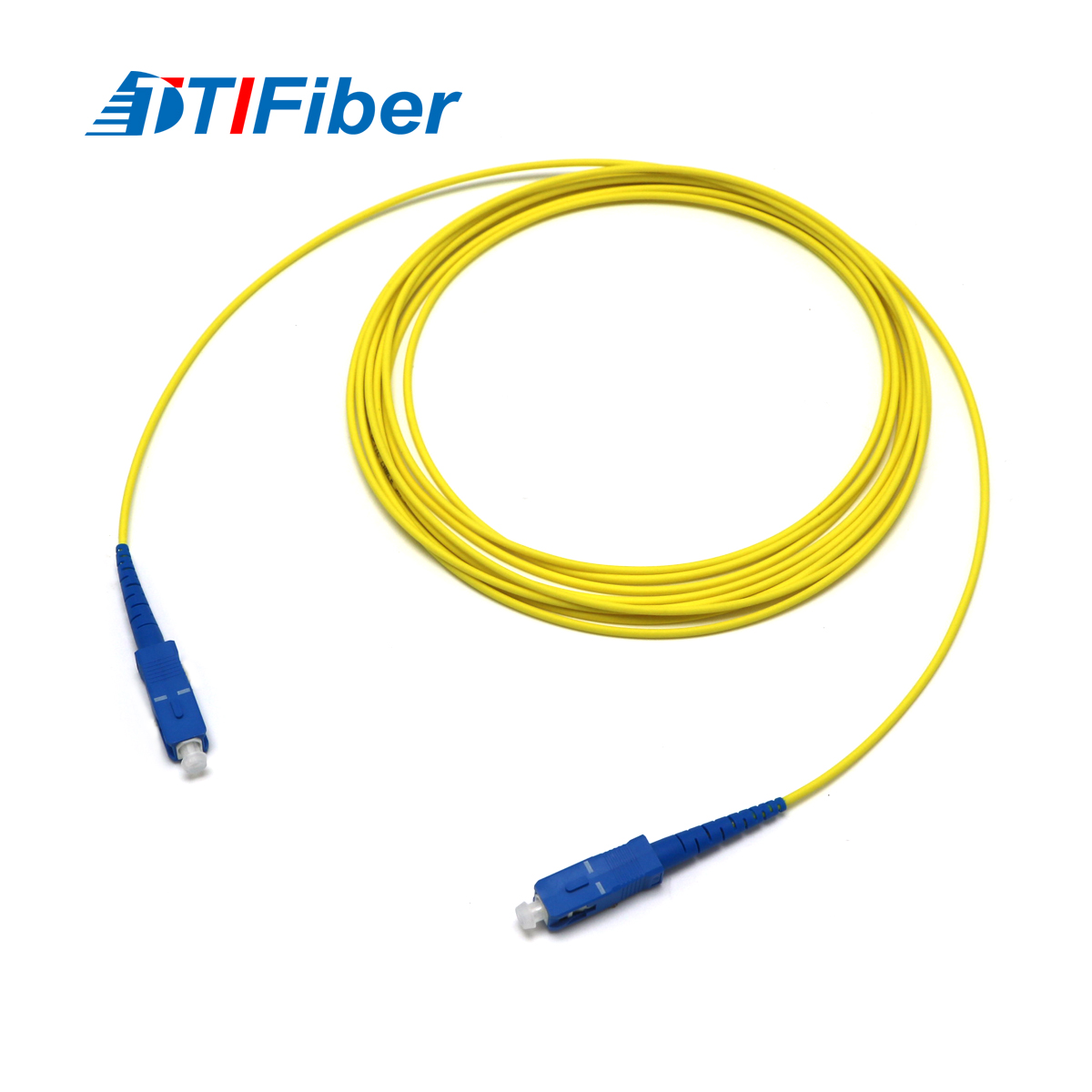

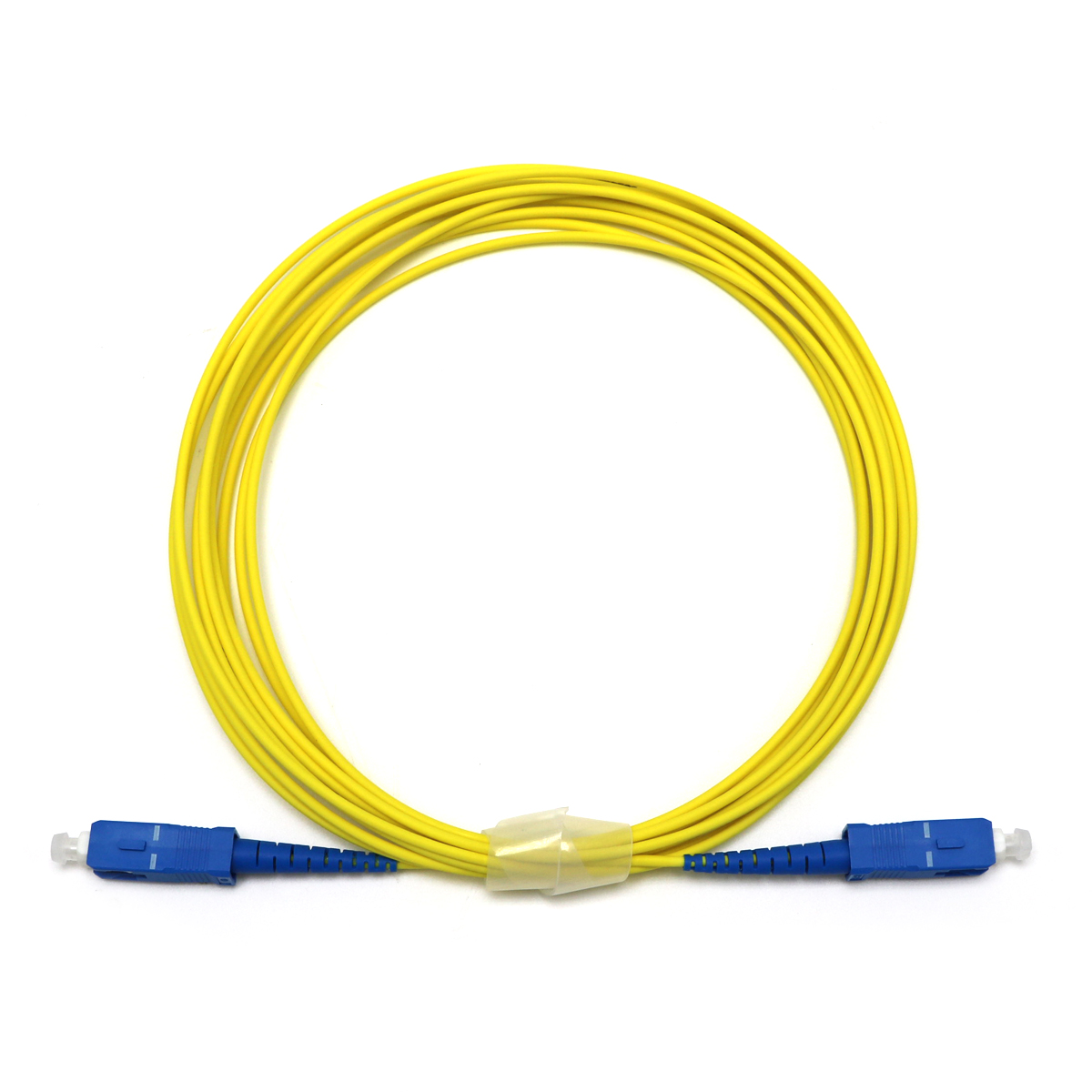

SM MM SC Apc Patch Cord Product Picture:
